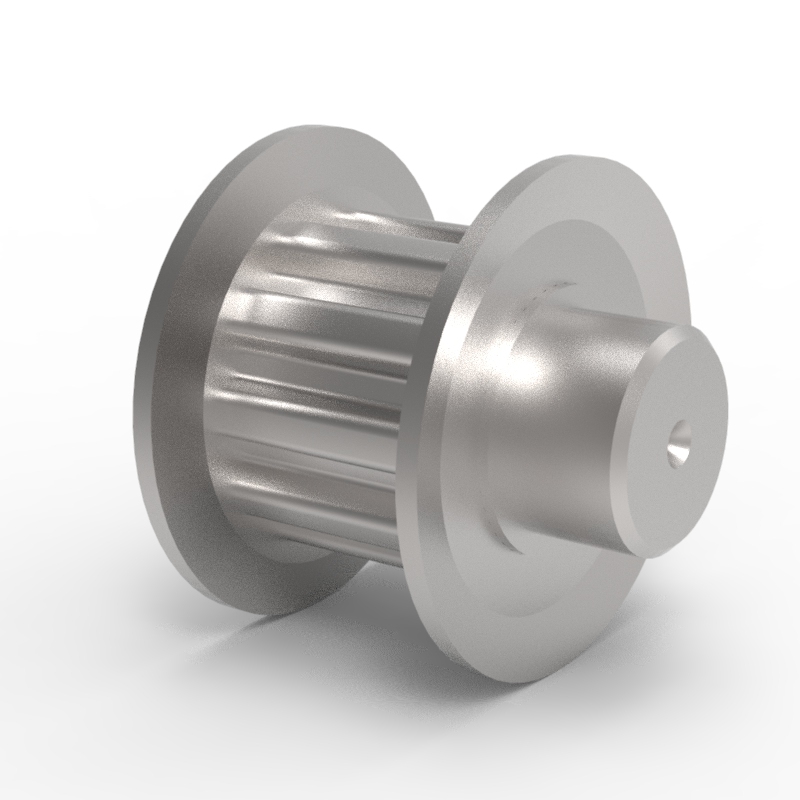

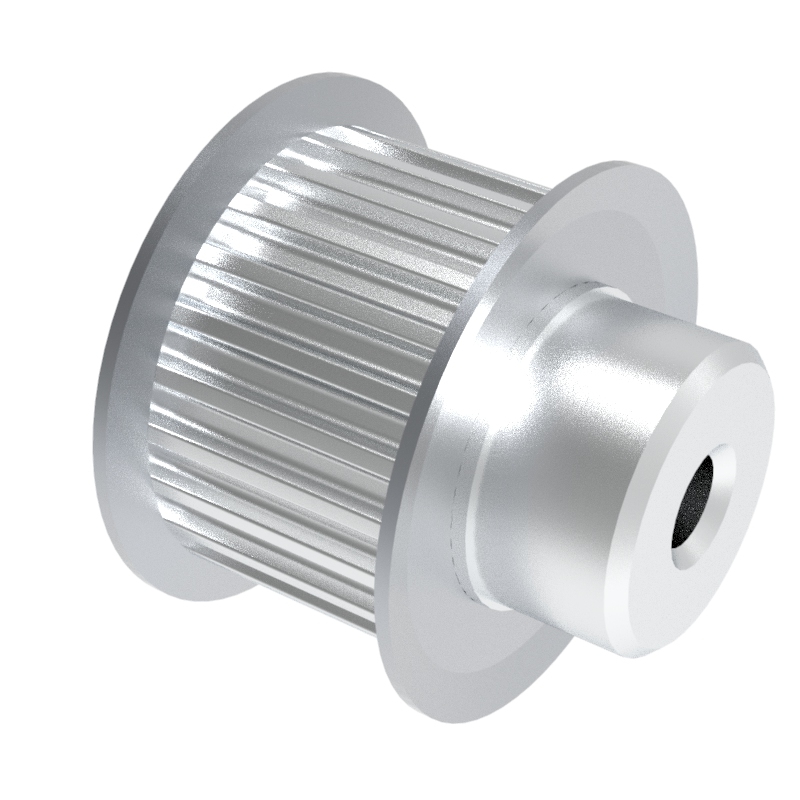

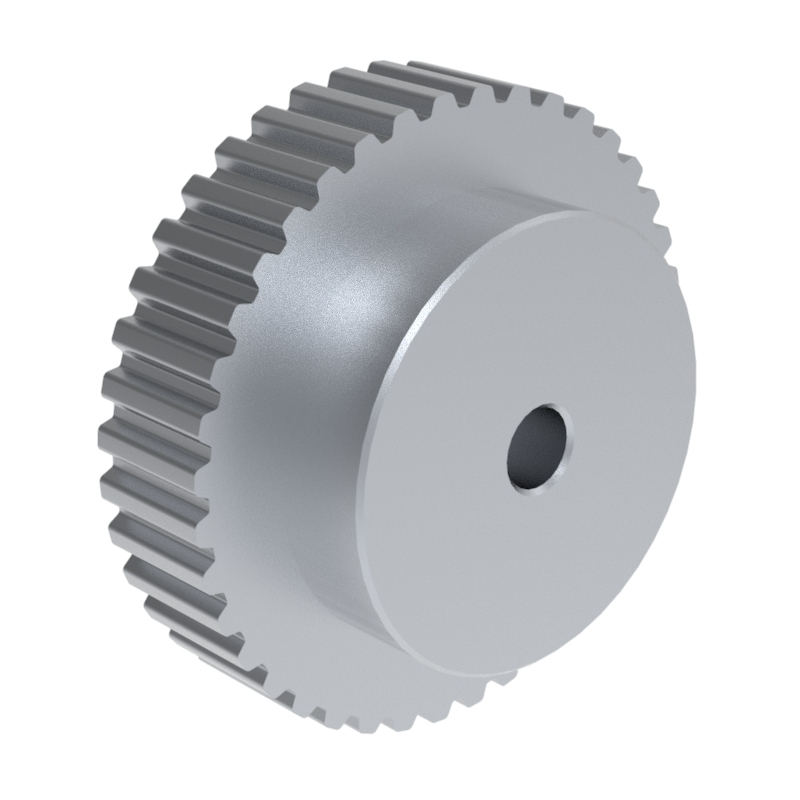

XL037 PITCH 1/5" (5.08mm)

No.XL037

Aluminium UN13571TA16 Suitable for Anodic Treatment Steel UNI C45 Cast iron GG25 UNI 5007 XL037 PITCH 1/5" (5.08mm)

GET A QUOTE

Description

Timing Pulley |MXL/XL/L/H/XH|pilot bore
XL 037
Pitch: 1/5” (5,08 mm)
FOR 3/8” (9,52 mm) WIDTH BELTS

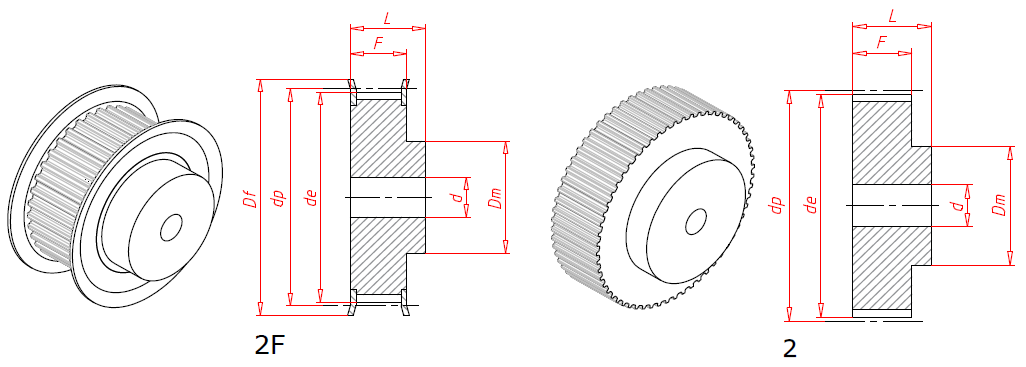

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
10 XL 037	2F	Al	10	16.17	15.66	23	10	14.3	20		201	0.01
11 XL 037	2F	Al	11	17.79	17.28	23	10	14.3	20		201	0.01
12 XL 037	2F	Al	12	19.40	18.90	25	10	14.3	20		203	0.01
13 XL 037	2F	Al	13	21.02	20.51	25	10	14.3	20		203	0.01
14 XL 037	2F	Al	14	22.64	22.13	28	16	14.3	20		204	0.02
15 XL 037	2F	Al	15	24.25	23.75	28	16	14.3	20		204	0.02
16 XL 037	2F	Al	16	25.87	25.36	32	16	14.3	20		205	0.03
17 XL 037	2F	Al	17	27.49	26.98	32	20	14.3	20		205	0.03
18 XL 037	2F	Al	18	29.11	28.60	36	20	14.3	20		206	0.04
19 XL 037	2F	Al	19	30.72	30.21	36	20	14.3	22		206	0.04
20 XL 037	2F	Al	20	32.34	31.83	38	25	14.3	22		207	0.05
21 XL 037	2F	Al	21	33.96	33.45	38	25	14.3	22		207	0.05
22 XL 037	2F	Al	22	35.57	35.07	42	25	14.3	22		208	0.06
24 XL 037	2F	Al	24	38.81	38.30	44	30	14.3	22		209	0.06
26 XL 037	2F	Al	26	42.04	41.53	48	30	14.3	22	8	210	0.09
27 XL 037	2F	Al	27	43.66	43.15	48	34	14.3	22	8	210	0.09
28 XL 037	2F	Al	28	45.28	44.77	51	34	14.3	22	8	211	0.10
30 XL 037	2F	Al	30	48.51	48.00	54	38	14.3	22	8	212	0.12
32 XL 037	2F	Al	32	51.74	51.24	57	38	14.3	25	8	213	0.12
34 XL 037	2F	Al	34	54.98	54.47	60	38	14.3	25	8	214	0.13
35 XL 037	2F	Al	35	56.60	56.09	63	38	14.3	25	8	215	0.14
36 XL 037	2	Al	36	58.21	57.70		45	14.3	25	8		0.14
38 XL 037	2	Al	38	61.45	60.94		45	14.3	25	8		0.15
40 XL 037	2	Al	40	64.68	64.17		45	14.3	25	8		0.16
42 XL 037	2	Al	42	67.91	67.41		45	14.3	25	8		0.18
44 XL 037	2	Al	44	71.15	70.64		45	14.3	25	8		0.19
48 XL 037	2	Al	48	77.62	77.11		45	14.3	25	10		0.19
52 XL 037	2	Al	52	84.08	83.57		45	14.3	25	10		0.19
60 XL 037	2	Al	60	97.02	96.51		45	14.3	25	10		0.22
72 XL 037	2	Al	72	116.42	115.92		45	14.3	25	10		0.44

Download
