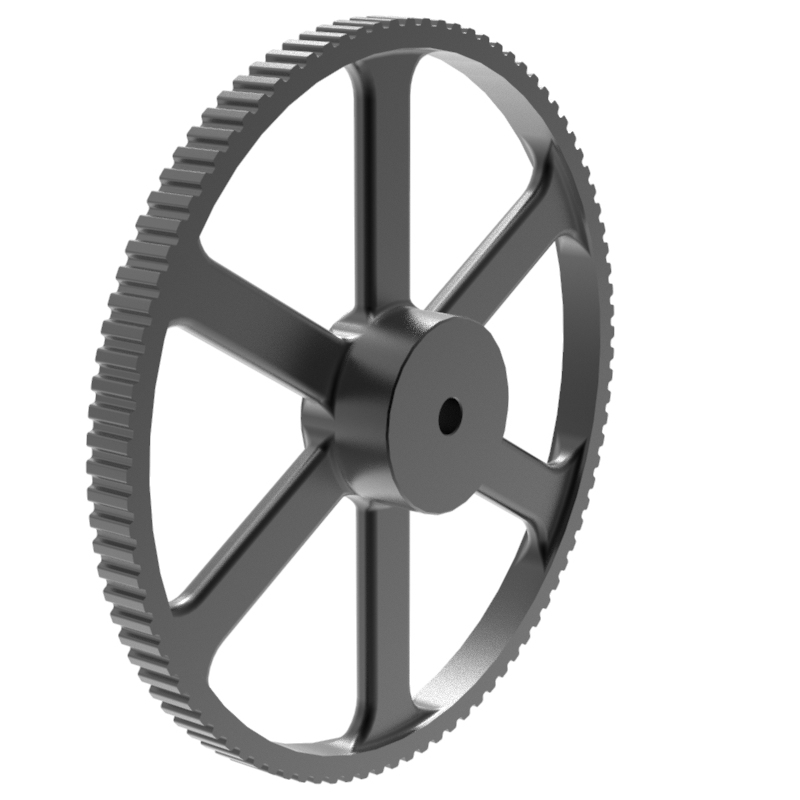

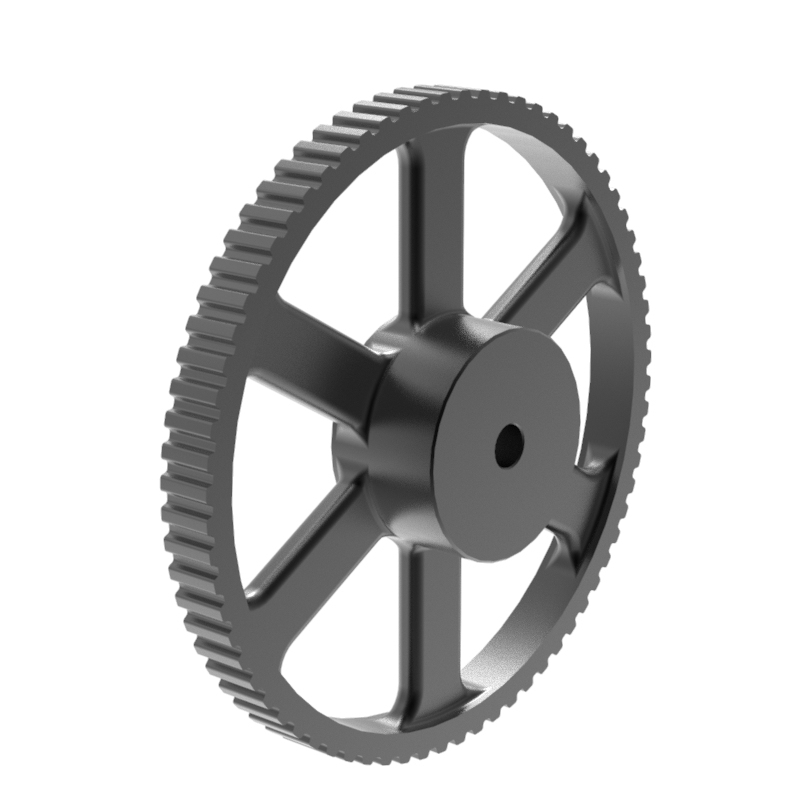

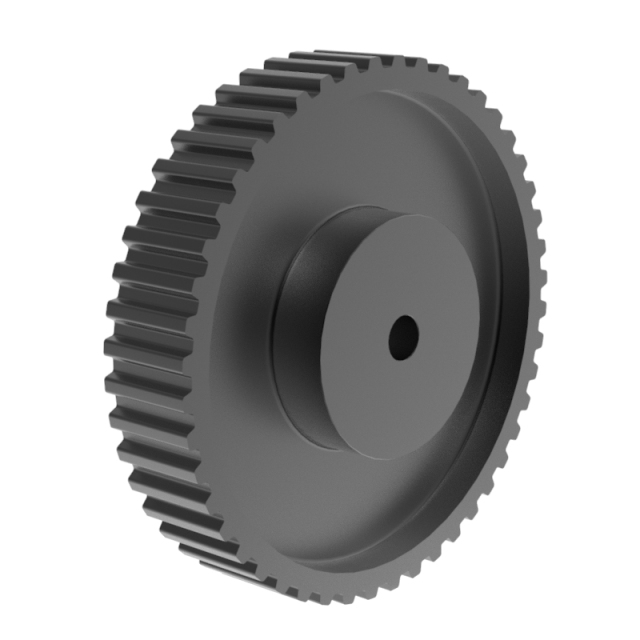

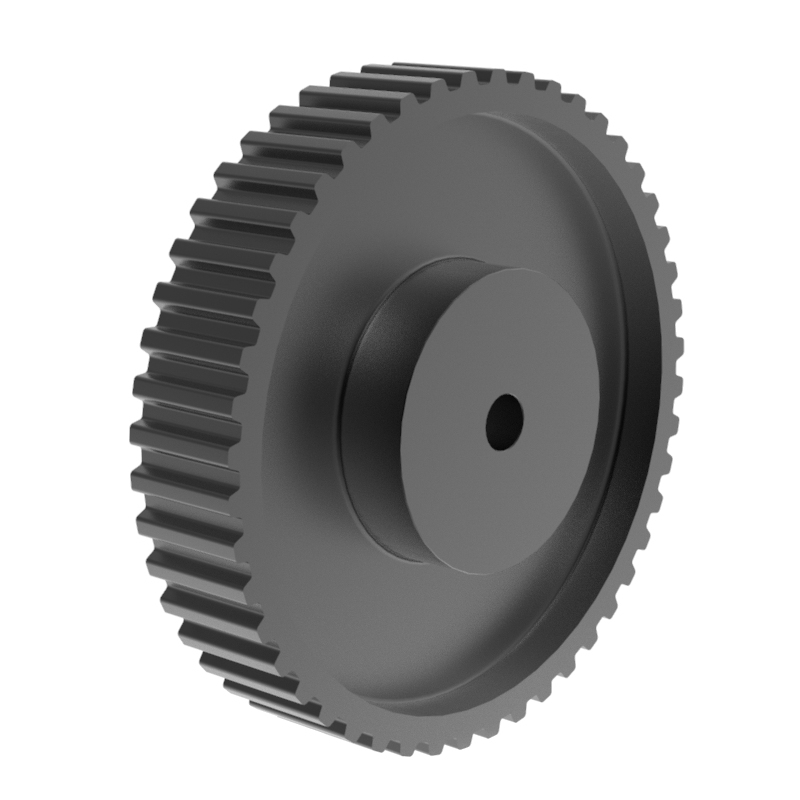

XH200&XH300&XH400

No.XH200

Steel UNI C45 Cast iron GG25 UNI 5007 Pitch: 7/8" (22.22mm)

GET A QUOTE

Description

Timing Pulley |MXL/XL/L/H/XH|pilot bore
XH 200
Pitch: 7/8” (22,22 mm)
FOR2” (50,8 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc

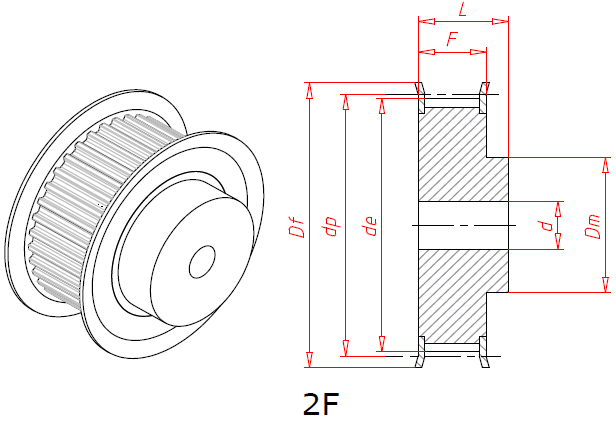

				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
18 XH 200	2F	St	18	127.34	124.55	138	100	65.0	80	24	401	6.00
19 XH 200	2F	St	19	134.41	131.62	146	100	65.0	80	24	402	6.60
20 XH 200	2F	St	20	141.49	138.69	154	100	65.0	80	24	403	7.30
21 XH 200	2F	St	21	148.56	145.77	160	110	65.0	80	24	404	8.73
22 XH 200	2F	St	22	155.64	152.84	168	110	65.0	80	24	405	9.55
24 XH 200	2F	St	24	169.79	166.99	183	120	65.0	80	24	406	11.47
25 XH 200	2F	St	25	176.86	174.07	188	120	65.0	80	24	407	12.46
26 XH 200	2F	St	26	183.93	181.14	198	120	65.0	80	24	409	13.47
27 XH 200	2F	St	27	191.01	188.22	200	120	65.0	80	24	410	14.42
28 XH 200	2F	St	28	198.09	195.29	211	120	65.0	80	24	411	15.44
30 XH 200	2F	St	30	212.23	209.44	226	120	65.0	80	24	412	17.69
32 XH 200	2F	St	32	226.38	223.59	240	120	65.0	80	24	414	19.95
34 XH 200	2F	St	34	240.53	237.74	256	120	65.0	80	24	415	22.75

XH 300
Pitch: 7/8” (22,22 mm)
FOR3” (76,2 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
18 XH 300	2F	St	18	127.34	124.55	138	100	92.0	110	28	401	8.90
19 XH 300	2F	St	19	134.41	131.62	146	100	92.0	110	28	402	9.20
20 XH 300	2F	St	20	141.49	138.69	154	100	92.0	110	28	403	10.61
21 XH 300	2F	St	21	148.56	145.77	160	110	92.0	110	28	404	11.87
22 XH 300	2F	St	22	155.64	152.84	168	110	92.0	110	28	405	13.08
24 XH 300	2F	St	24	169.79	166.99	183	120	92.0	110	28	406	15.77
25 XH 300	2F	St	25	176.86	174.07	188	120	92.0	110	28	407	17.13
26 XH 300	2F	St	26	183.93	181.14	198	120	92.0	110	28	409	18.55
27 XH 300	2F	St	27	191.01	188.22	200	120	92.0	110	28	410	19.90
28 XH 300	2F	St	28	198.09	195.29	211	150	92.0	110	28	411	22.27
30 XH 300	2F	St	30	212.23	209.44	226	150	92.0	110	28	412	25.39
32 XH 300	2F	St	32	226.38	223.59	240	150	92.0	110	28	414	28.73
34 XH 300	2F	St	34	240.53	237.74	256	150	92.0	110	28	415	34.20

XH 400
Pitch: 7/8” (22,22 mm)
FOR 4” (101,6 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
18 XH 400	2F	St	18	127.34	124.55	138	100	119.0	132	32	401	9.60
19 XH 400	2F	St	19	134.41	131.62	146	100	119.0	132	32	402	10.80
20 XH 400	2F	St	20	141.49	138.69	154	100	119.0	132	32	403	12.87
21 XH 400	2F	St	21	148.56	145.77	160	110	119.0	132	32	404	14.42
22 XH 400	2F	St	22	155.64	152.84	168	110	119.0	132	32	405	15.44
24 XH 400	2F	St	24	169.79	166.99	183	120	119.0	132	32	406	19.22
25 XH 400	2F	St	25	176.86	174.07	188	120	119.0	132	32	407	21.05
26 XH 400	2F	St	26	183.93	181.14	198	120	119.0	132	32	409	22.80
27 XH 400	2F	St	27	191.01	188.22	200	120	119.0	132	32	410	24.66
28 XH 400	2F	St	28	198.09	195.29	211	150	119.0	132	32	411	27.23
30 XH 400	2F	St	30	212.23	209.44	226	150	119.0	132	32	412	31.30
32 XH 400	2F	St	32	226.38	223.59	240	150	119.0	132	32	414	35.20
34 XH 400	2F	St	34	240.53	237.74	256	150	119.0	132	32	415	40.00
