| Catalog No. |
Type | Material | Teeth | Bush No. |
Bore max |
Pitch Dia |
Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Mass per pc |

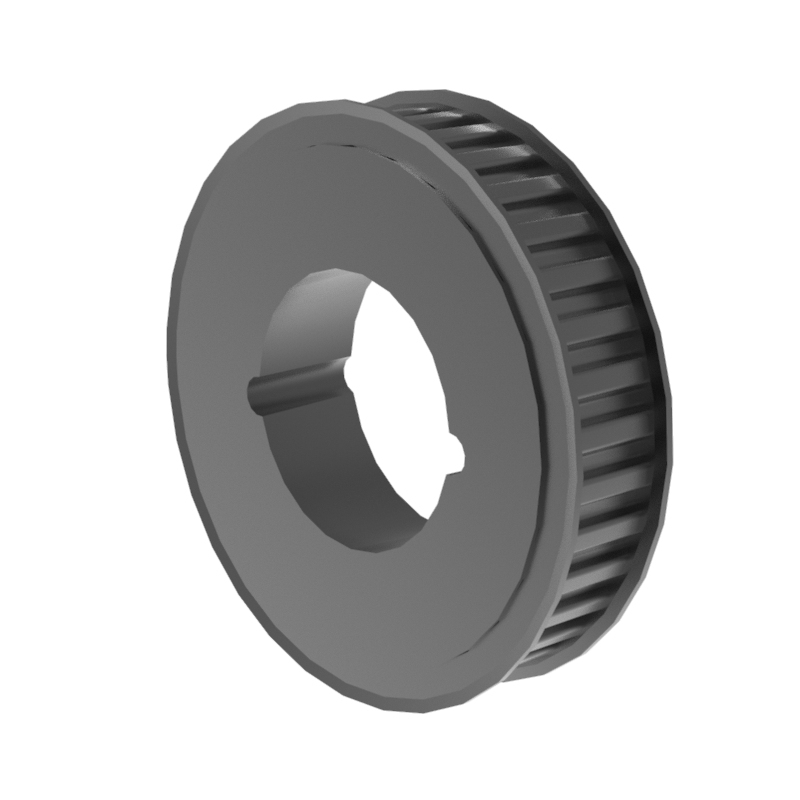

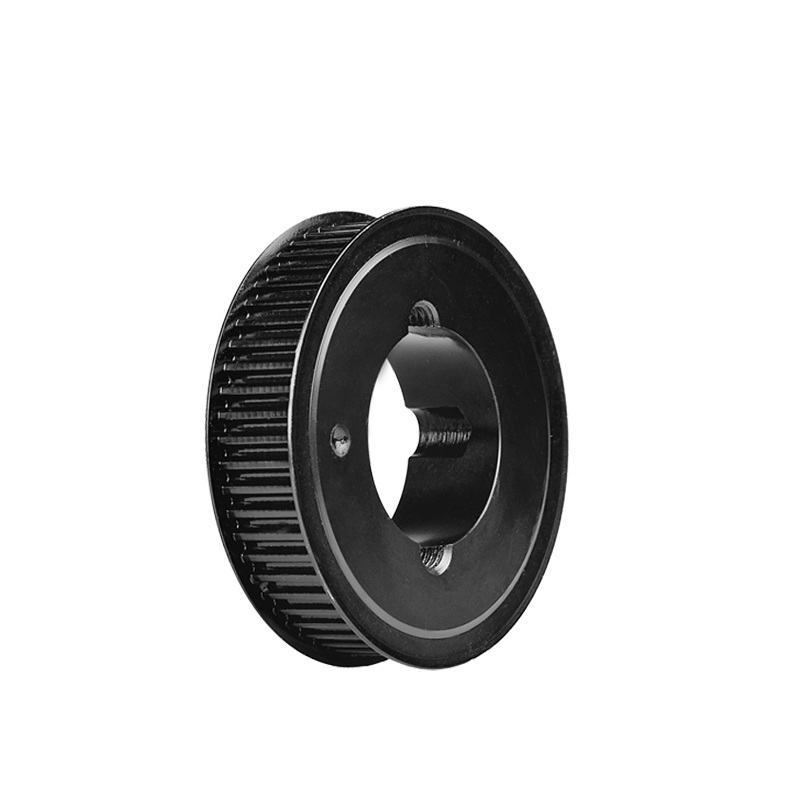

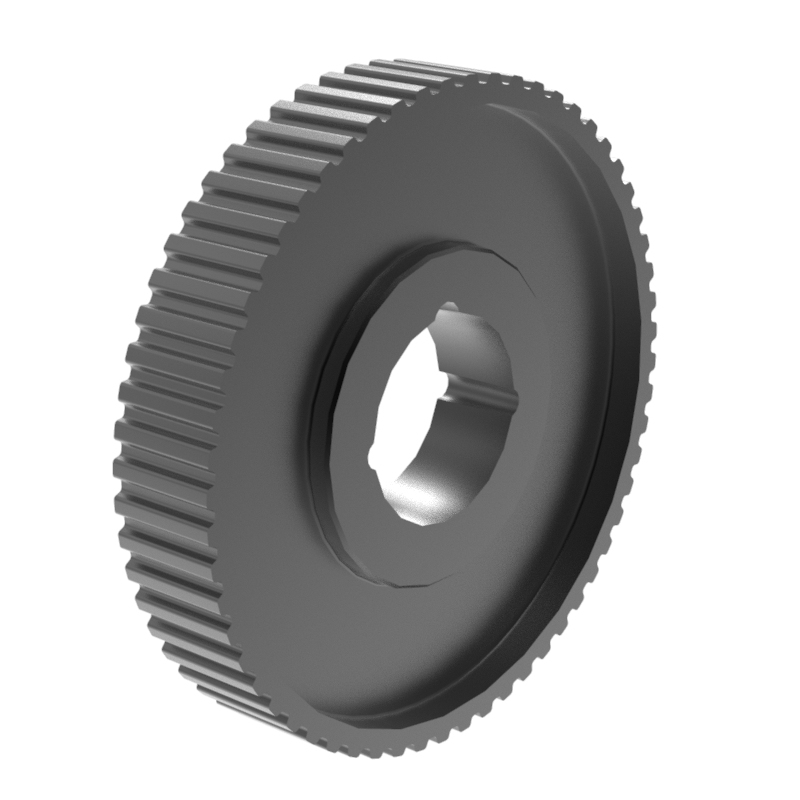

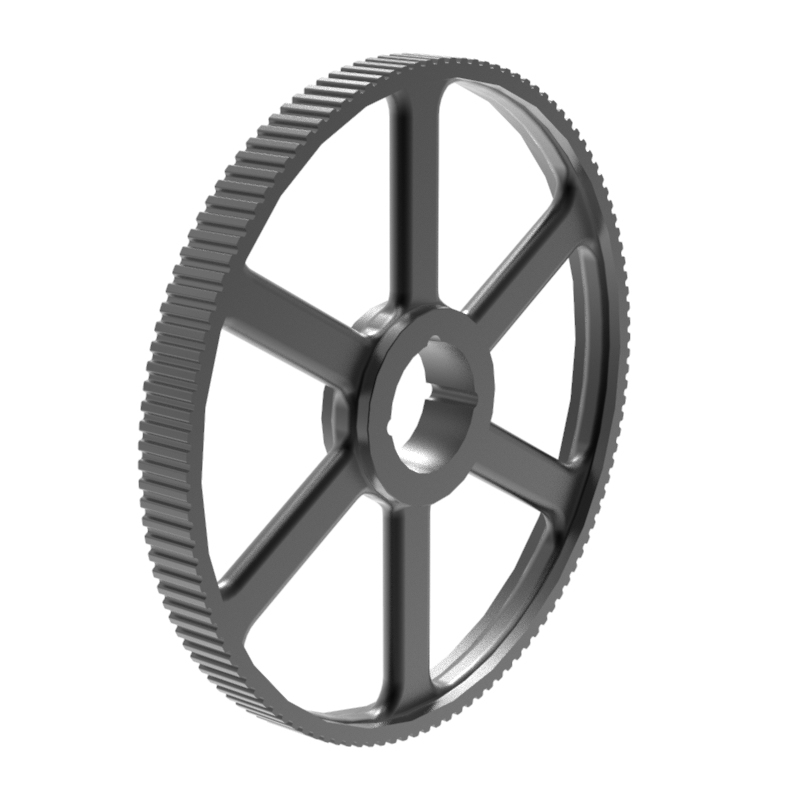

|||
| dp | de | Df | Dm | Di | F | L | R | n ° flange |
(q≈) | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ° | kg/pc | |||||
| TL 34 5M 15 | 15F | St | 34 | 1008 | 25 | 54.11 | 52.97 | 57 | 22 | 22 | 213 | 0.20 | |||
| TL 36 5M 15 | 15F | St | 36 | 1108 | 25 | 57.30 | 56.15 | 60 | 22 | 22 | 214 | 0.25 | |||
| TL 38 5M 15 | 15F | St | 38 | 1108 | 25 | 60.48 | 59.34 | 66 | 22 | 22 | 216 | 0.30 | |||
| TL 40 5M 15 | 15F | St | 40 | 1108 | 25 | 63.66 | 62.52 | 71 | 22 | 22 | 217 | 0.35 | |||
| TL 44 5M 15 | 15F | St | 44 | 1108 | 25 | 70.03 | 68.89 | 75 | 22 | 22 | 218 | 0.40 | |||
| TL 48 5M 15 | 10F | St | 48 | 1210 | 32 | 76.39 | 75.25 | 83 | 59 | 22 | 25 | 3 | 219 | 0.46 | |
| TL 56 5M 15 | 10F | St | 56 | 1210 | 32 | 89.13 | 87.99 | 93 | 70 | 22 | 25 | 3 | 222 | 0.60 | |
| TL 64 5M 15 | 10F | St | 64 | 1210 | 32 | 101.86 | 100.72 | 106 | 80 | 22 | 25 | 3 | 224 | 0.80 | |
| TL 72 5M 15 | 10 | St | 72 | 1610 | 42 | 114.59 | 113.45 | 92 | 22 | 25 | 3 | 1.20 | |||
| TL 80 5M 15 | 10 | St | 80 | 1610 | 42 | 127.32 | 126.18 | 92 | 22 | 25 | 3 | 1.76 | |||
| TL 90 5M 15 | 10 | St | 90 | 1610 | 42 | 143.24 | 142.10 | 92 | 22 | 25 | 3 | 2.32 | |||
| TL 112 5M 15 | 10 | St | 112 | 2012 | 50 | 178.25 | 177.11 | 110 | 20 | 32 | 12 | 3.72 | |||
| TL 136 5M 15 | 13 | St | 136 | 2012 | 50 | 216.45 | 215.31 | 110 | 199 | 20 | 32 | 6 | 3.82 |
