Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8187- ISO/R 606

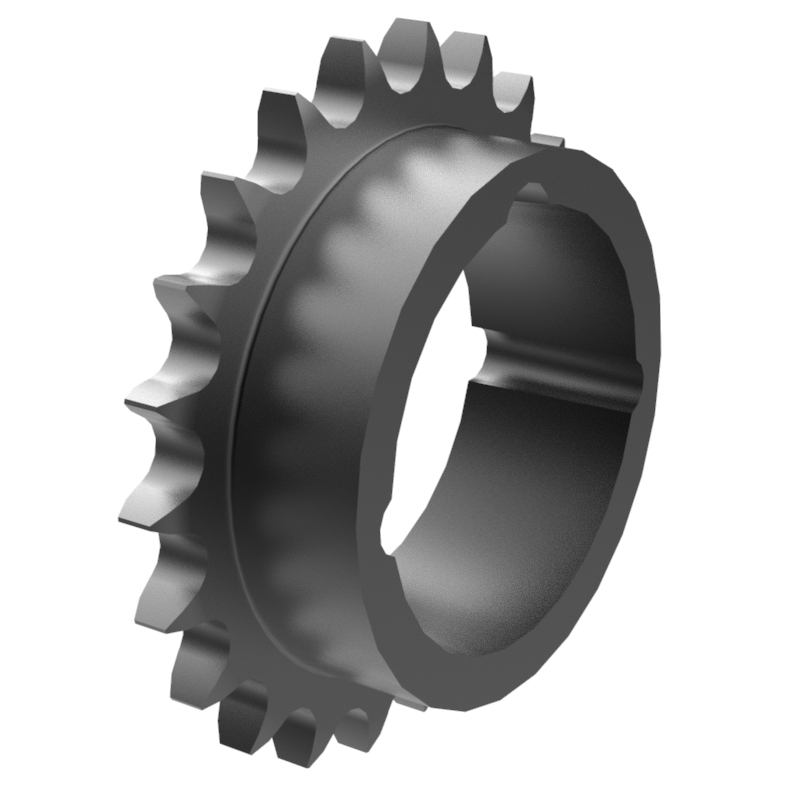

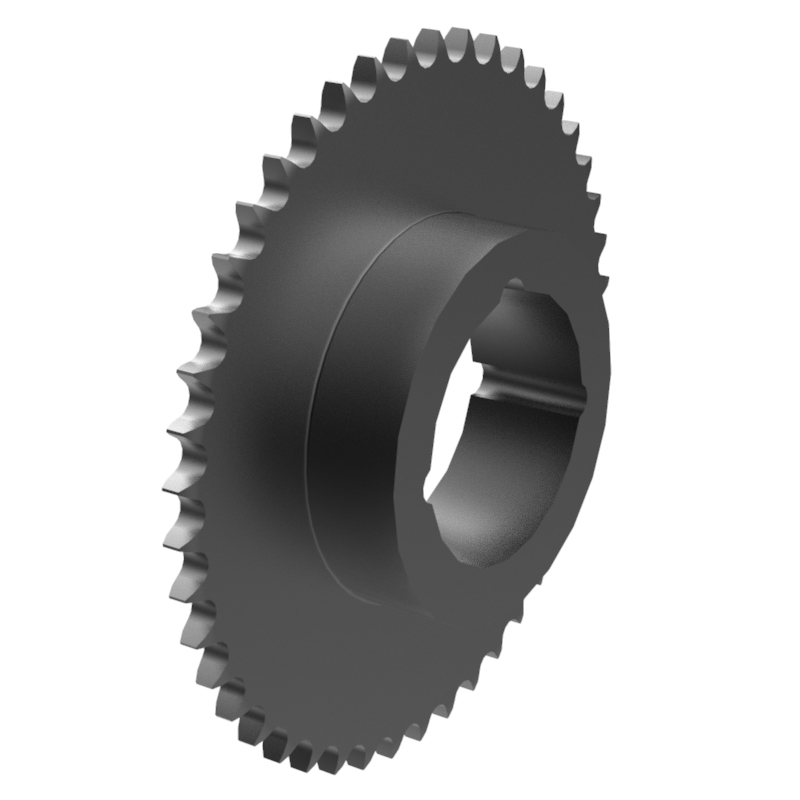

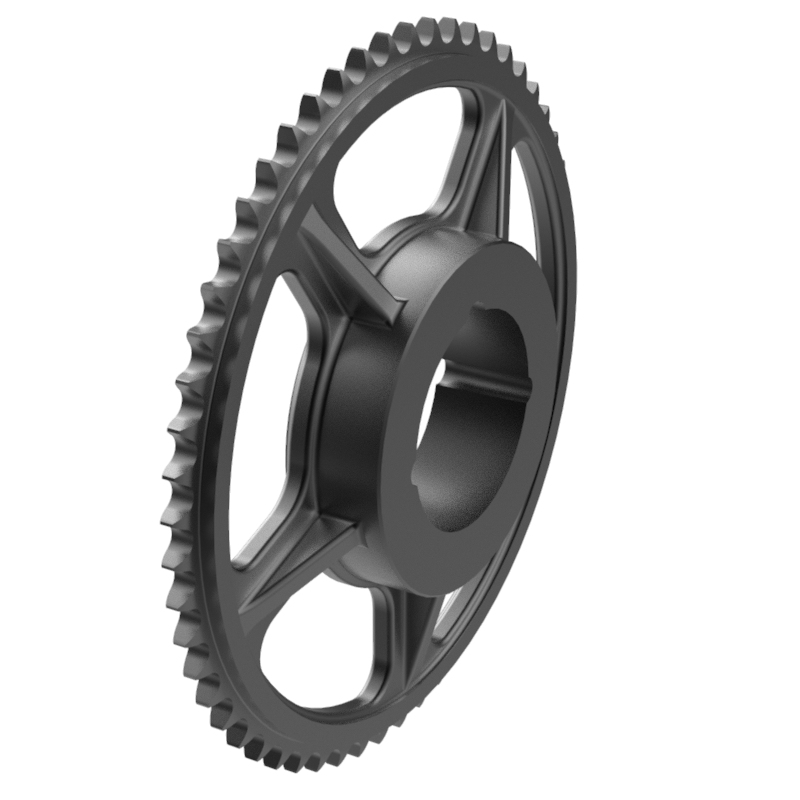

TAPERLOCK SPROCKETS 24B-1
Pitch 38,1 mm
Inner width 25,4 mm
Roller diameter 25,4 mm
Catalog
No. |
Z |
Bush
No. |
D |
L |
kg/pc |
| 24B1-TL-Z15 |
15 |
2517 |
108 |
45 |
3.90 |
| 24B1-TL-Z17 |
17 |
3535 |
108 |
45 |
6.40 |
| 24B1-TL-Z18 |
18 |
3535 |
108 |
45 |
7.45 |
| 24B1-TL-Z19 |
19 |
3535 |
108 |
45 |
7.85 |
| 24B1-TL-Z20 |
20 |
3535 |
108 |
45 |
9.50 |
| 24B1-TL-Z21 |
21 |
3535 |
108 |
45 |
9.50 |
| 24B1-TL-Z23 |
23 |
3535 |
108 |
45 |
11.30 |
| 24B1-TL-Z25 |
25 |
3535 |
108 |
45 |
13.30 |
| 24B1-TL-Z27 |
27 |
3535 |
150 |
51 |
15.50 |
| 24B1-TL-Z29 |
29 |
3535 |
150 |
51 |
15.50 |
| 24B1-TL-Z30 |
30 |
3535 |
150 |
51 |
22.70 |
| 24B1-TL-Z38 |
38 |
3535 |
160 |
51 |
31.60 |
|
