Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8187- ISO/R 606

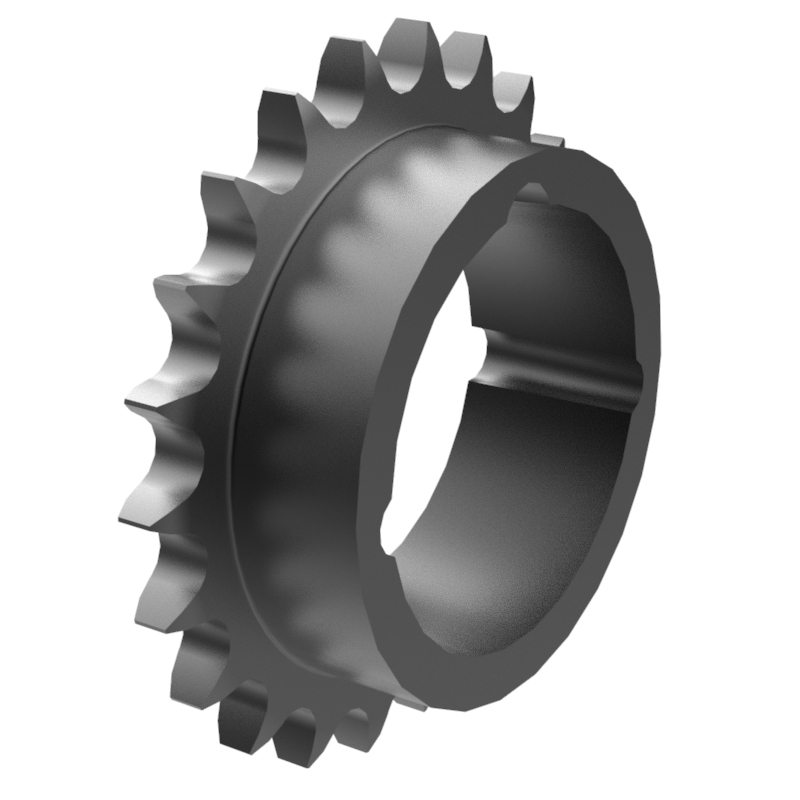

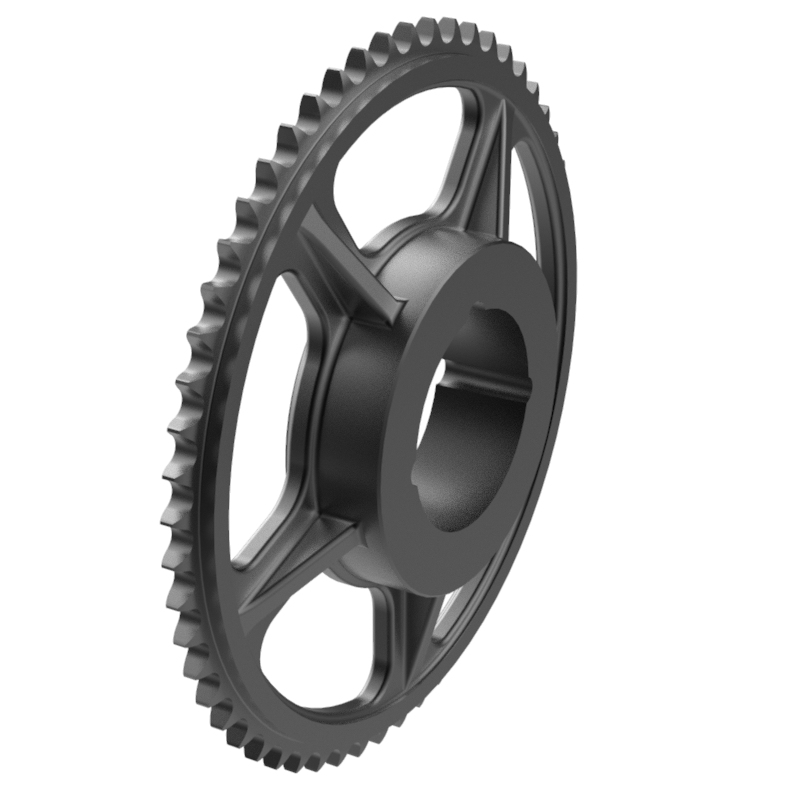

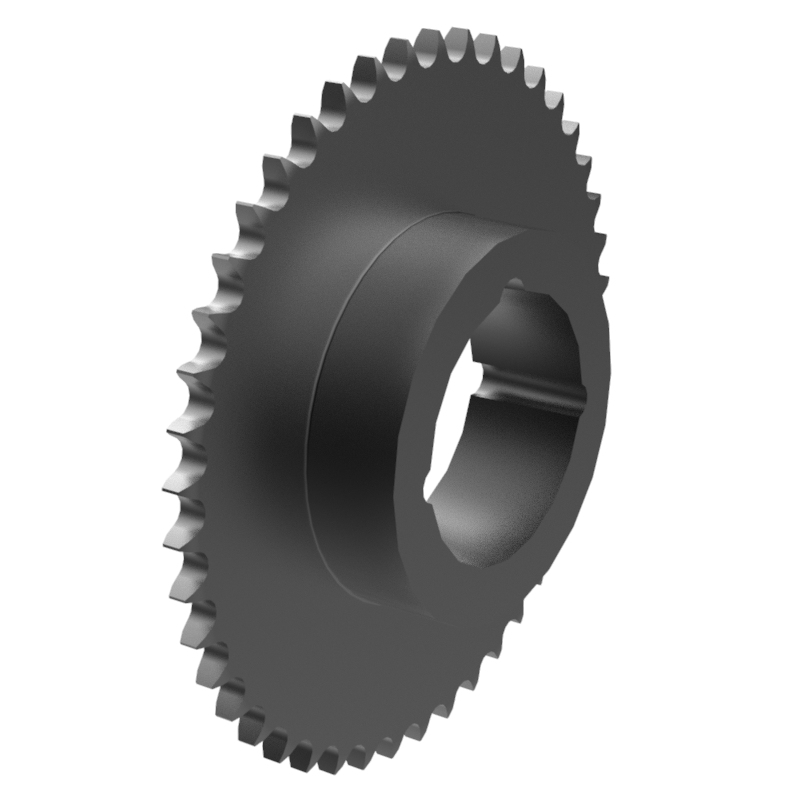

TAPERLOCK SPROCKETS 20B-1
Pitch 31,75 mm
Inner width 19,56 mm
Roller diameter 19,05 mm
Catalog
No. |
Z |
Bush
No. |
D |
L |
kg/pc |
| 20B1-TL-Z13 |
13 |
2012 |
90 |
32 |
1.40 |
| 20B1-TL-Z14 |
14 |
2012 |
90 |
32 |
1.85 |
| 20B1-TL-Z15 |
15 |
2517 |
108 |
45 |
2.50 |
| 20B1-TL-Z16 |
16 |
2517 |
108 |
45 |
2.80 |
| 20B1-TL-Z17 |
17 |
2517 |
108 |
45 |
3.30 |
| 20B1-TL-Z18 |
18 |
2517 |
108 |
45 |
3.45 |
| 20B1-TL-Z19 |
19 |
2517 |
108 |
45 |
4.00 |
| 20B1-TL-Z20 |
20 |
2517 |
108 |
45 |
4.30 |
| 20B1-TL-Z21 |
21 |
2517 |
108 |
45 |
5.00 |
| 20B1-TL-Z22 |
22 |
2517 |
108 |
45 |
5.50 |
| 20B1-TL-Z23 |
23 |
2517 |
108 |
45 |
6.00 |
| 20B1-TL-Z24 |
24 |
2517 |
108 |
45 |
6.50 |
| 20B1-TL-Z25 |
25 |
2517 |
108 |
45 |
7.20 |
| 20B1-TL-Z26 |
26 |
3020 |
150 |
51 |
8.00 |
| 20B1-TL-Z27 |
27 |
3020 |
150 |
51 |
9.00 |
| 20B1-TL-Z28 |
28 |
3020 |
150 |
51 |
9.80 |
| 20B1-TL-Z29 |
29 |
3020 |
150 |
51 |
10.15 |
| 20B1-TL-Z30 |
30 |
3020 |
150 |
51 |
11.00 |
| 20B1-TL-Z38 |
38 |
3020 |
160 |
51 |
17.50 |
| 20B1-TL-Z40 |
40 |
3020 |
160 |
51 |
18.50 |
| 20B1-TL-Z45 |
45 |
3020 |
160 |
51 |
24.50 |
| 20B1-TL-Z57 |
57 |
3020 |
160 |
51 |
38.00 |
| 20B1-TL-Z76 |
76 |
3020 |
160 |
51 |
67.00 |
|
