Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8187- ISO/R 606

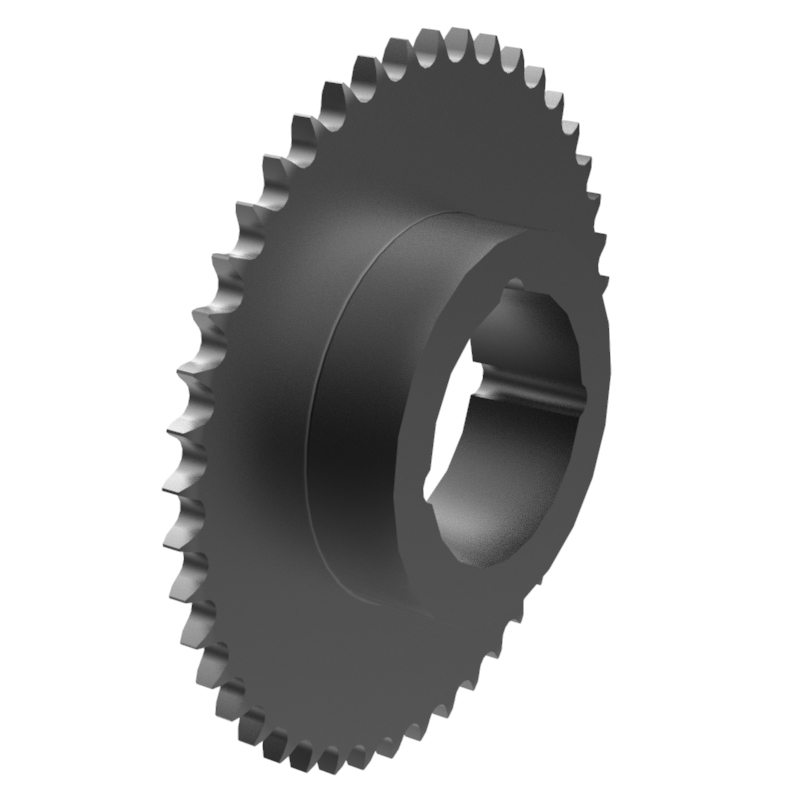

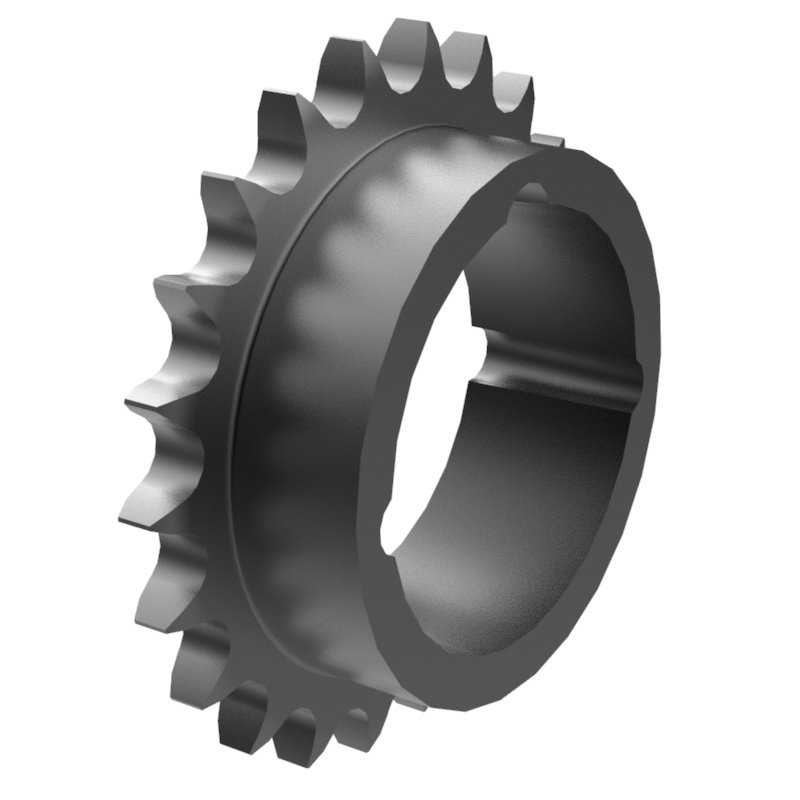

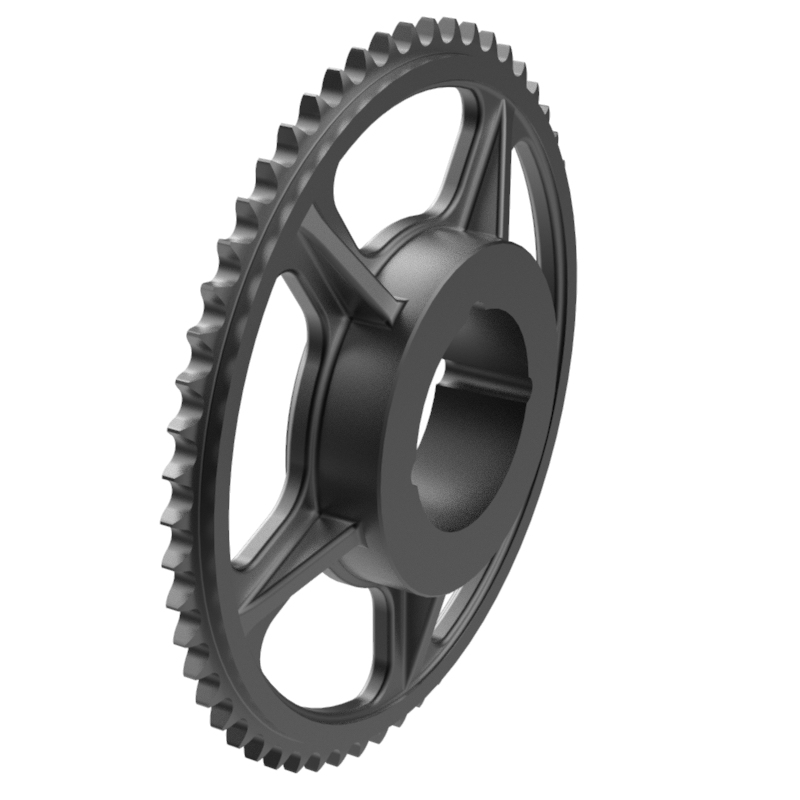

TAPERLOCK SPROCKETS 16B-1
Pitch 25,4 mm
Inner width 17,02 mm
Roller diameter 15,88 mm
Catalog
No. |
Z |
Bush
No. |

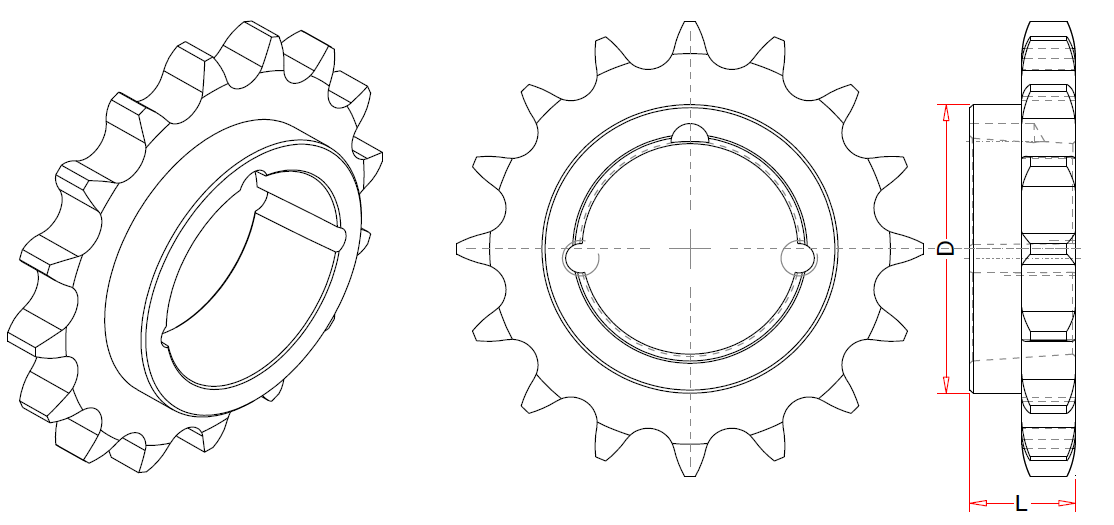

D |
L |
kg/pc |
| 16B1-TL-Z13 |
13 |
1610 |
73 |
25 |
0.98 |
| 16B1-TL-Z14 |
14 |
1610 |
76 |
25 |
1.14 |
| 16B1-TL-Z15 |
15 |
1610 |
76 |
25 |
1.30 |
| 16B1-TL-Z16 |
16 |
2012 |
90 |
32 |
1.40 |
| 16B1-TL-Z17 |
17 |
2012 |
90 |
32 |
1.59 |
| 16B1-TL-Z18 |
18 |
2517 |
108 |
45 |
2.10 |
| 16B1-TL-Z19 |
19 |
2517 |
108 |
45 |
2.45 |
| 16B1-TL-Z20 |
20 |
2517 |
108 |
45 |
2.60 |
| 16B1-TL-Z21 |
21 |
2517 |
110 |
45 |
2.81 |
| 16B1-TL-Z22 |
22 |
2517 |
110 |
45 |
3.10 |
| 16B1-TL-Z23 |
23 |
2517 |
110 |
45 |
3.38 |
| 16B1-TL-Z24 |
24 |
2517 |
110 |
45 |
3.70 |
| 16B1-TL-Z25 |
25 |
2517 |
110 |
45 |
3.97 |
| 16B1-TL-Z26 |
26 |
2517 |
110 |
45 |
4.26 |
| 16B1-TL-Z27 |
27 |
2517 |
110 |
45 |
4.55 |
| 16B1-TL-Z28 |
28 |
2517 |
110 |
45 |
5.26 |
| 16B1-TL-Z30 |
30 |
3020 |
140 |
51 |
5.97 |
| 16B1-TL-Z38 |
38 |
3020 |
140 |
51 |
8.73 |
| 16B1-TL-Z45 |
45 |
3020 |
140 |
51 |
12.49 |
| 16B1-TL-Z57 |
57 |
3020 |
140 |
51 |
13.87 |
| 16B1-TL-Z76 |
76 |
3020 |
140 |
51 |
22.63 |
| 16B1-TL-Z95 |
95 |
3020 |
140 |
51 |
35.36 |
| 16B1-TL-Z114 |
114 |
3030 |
140 |
76 |
50.92 |
|
