Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8187- ISO/R 606

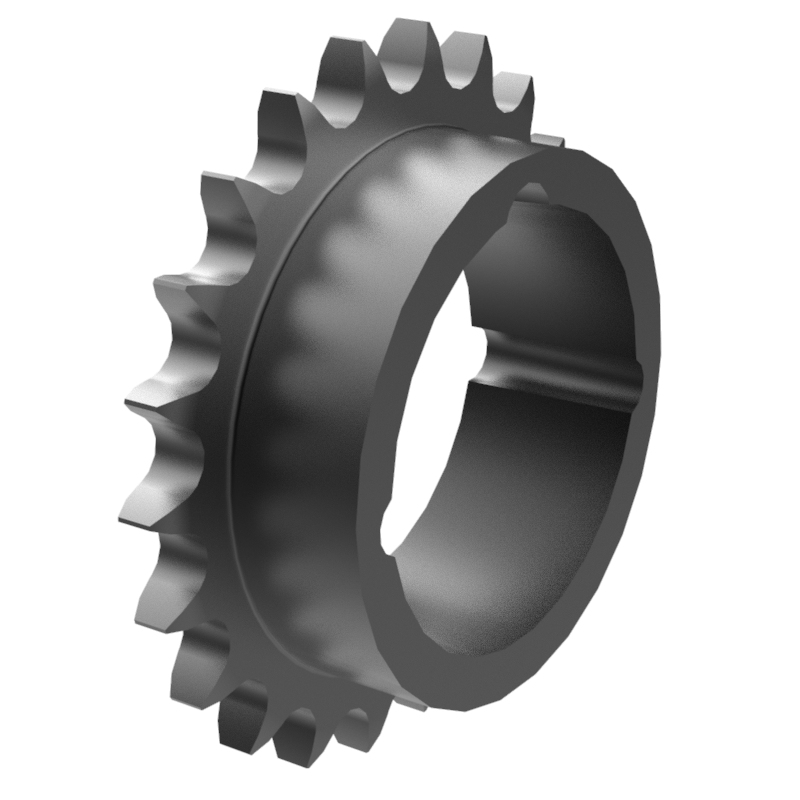

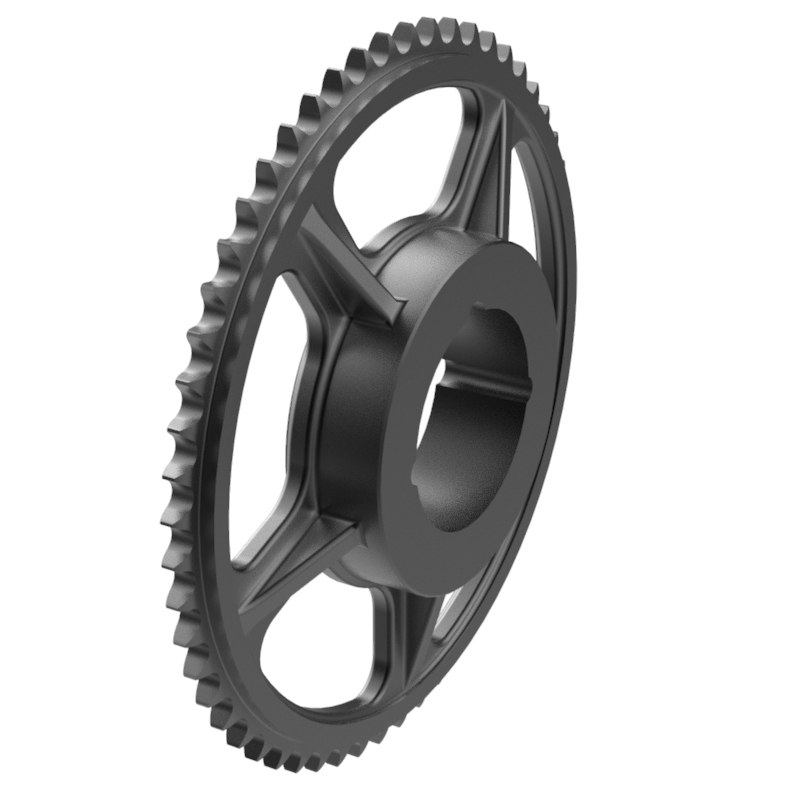

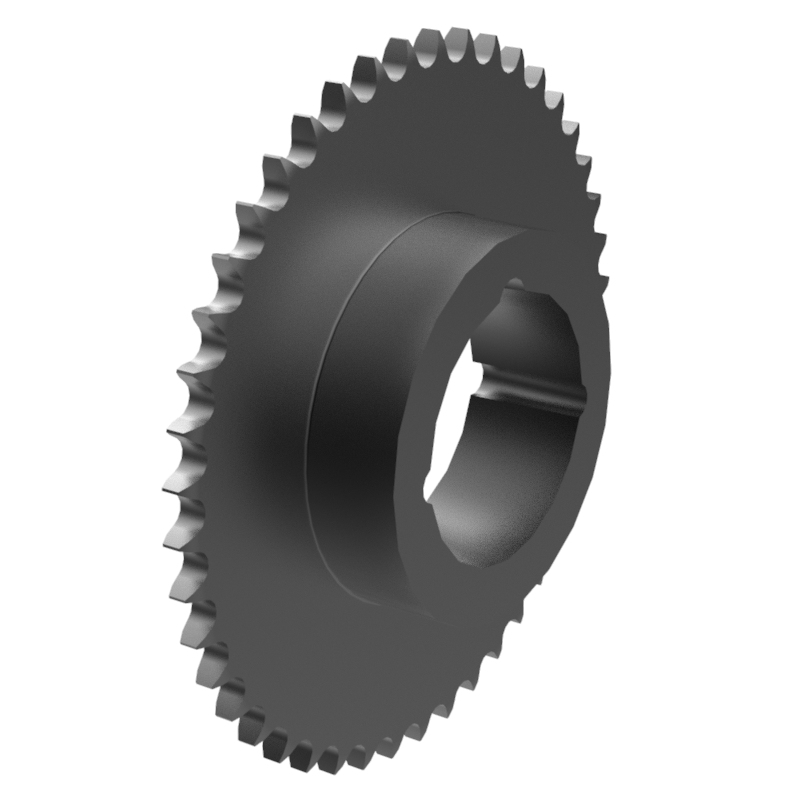

TAPERLOCK SPROCKETS 12B-1
Pitch 19,05 mm
Inner width 11,68 mm
Roller diameter 12,07 mm
Catalog
No. |
Z |
Bush
No. |
D |
L |
kg/pc |
| 12B1-TL-Z13 |
13 |
1210 |
60 |
25 |
0.35 |
| 12B1-TL-Z14 |
14 |
1610 |
70 |
25 |
0.40 |
| 12B1-TL-Z15 |
15 |
1610 |
70 |
25 |
0.44 |
| 12B1-TL-Z16 |
16 |
1610 |
75 |
25 |
0.53 |
| 12B1-TL-Z17 |
17 |
1610 |
76 |
25 |
0.66 |
| 12B1-TL-Z18 |
18 |
2012 |
90 |
32 |
0.86 |
| 12B1-TL-Z19 |
19 |
2012 |
90 |
32 |
0.94 |
| 12B1-TL-Z20 |
20 |
2012 |
90 |
32 |
1.04 |
| 12B1-TL-Z21 |
21 |
2517 |
102 |
45 |
1.24 |
| 12B1-TL-Z22 |
22 |
2517 |
102 |
45 |
1.60 |
| 12B1-TL-Z23 |
23 |
2517 |
108 |
45 |
1.70 |
| 12B1-TL-Z24 |
24 |
2517 |
108 |
45 |
1.81 |
| 12B1-TL-Z25 |
25 |
2517 |
108 |
45 |
1.93 |
| 12B1-TL-Z26 |
26 |
2517 |
108 |
45 |
2.04 |
| 12B1-TL-Z27 |
27 |
2517 |
108 |
45 |
2.14 |
| 12B1-TL-Z28 |
28 |
2517 |
108 |
45 |
2.37 |
| 12B1-TL-Z30 |
30 |
2517 |
108 |
45 |
2.60 |
| 12B1-TL-Z38 |
38 |
2517 |
108 |
45 |
3.93 |
| 12B1-TL-Z45 |
45 |
2517 |
108 |
45 |
5.52 |
| 12B1-TL-Z57 |
57 |
2517 |
108 |
45 |
6.48 |
| 12B1-TL-Z76 |
76 |
2517 |
108 |
45 |
9.71 |
| 12B1-TL-Z95 |
95 |
2517 |
108 |
45 |
15.17 |
| 12B1-TL-Z114 |
114 |
2525 |
108 |
64 |
21.84 |
|
