Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8187- ISO/R 606

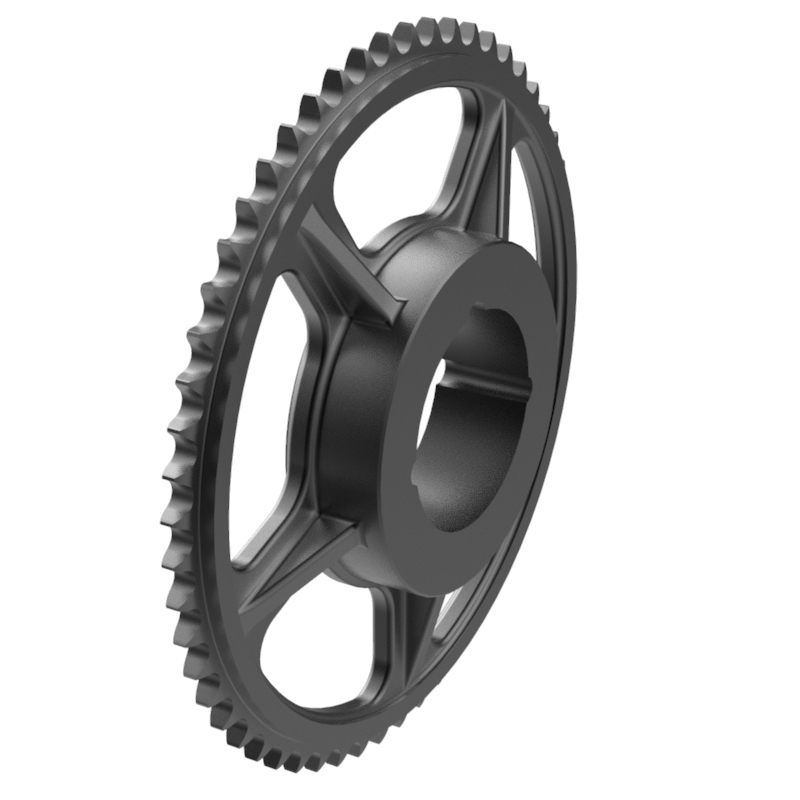

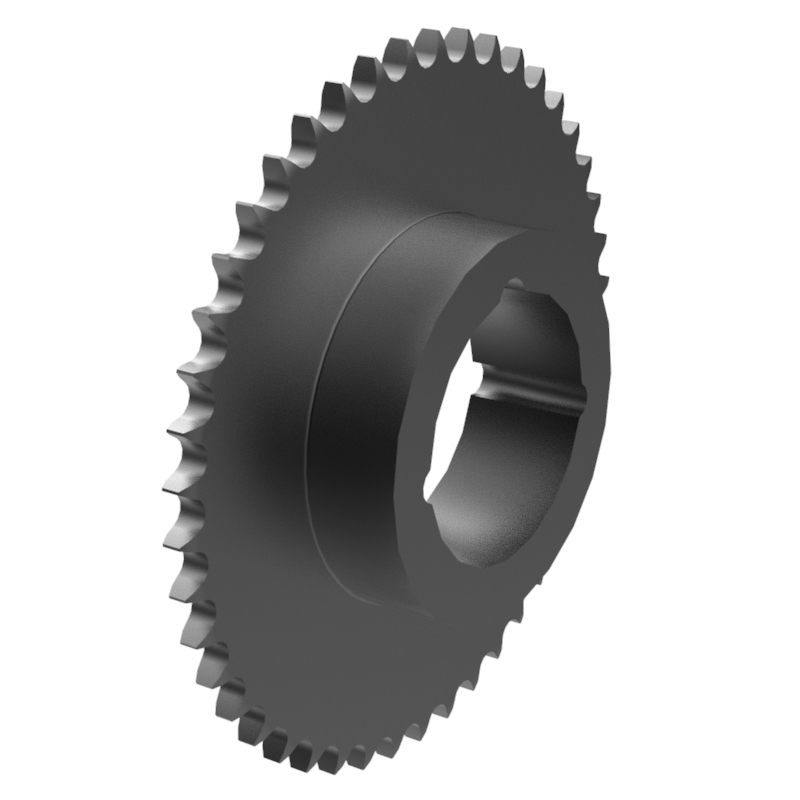

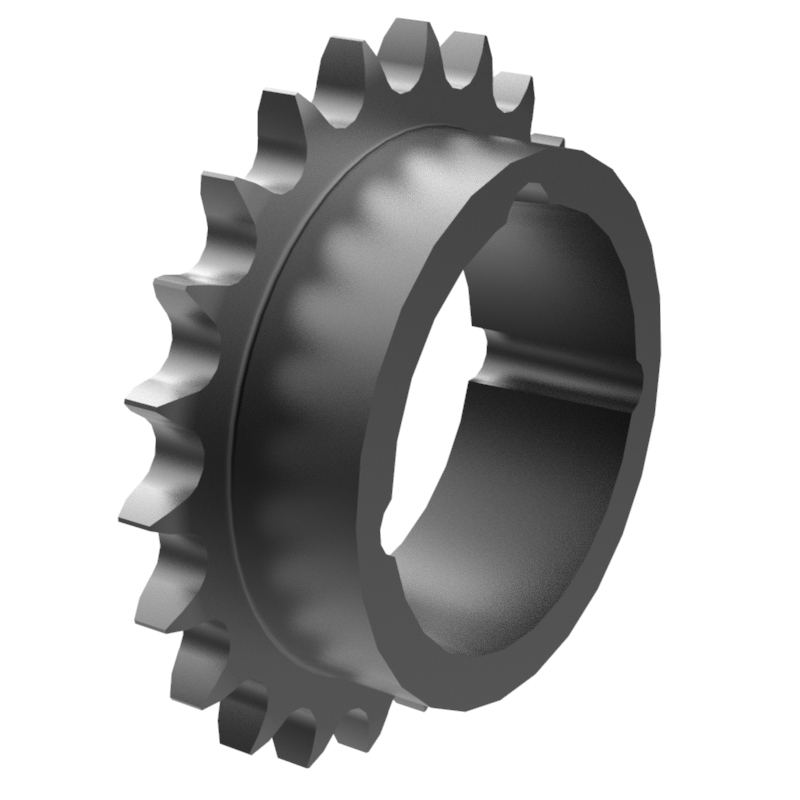

TAPERLOCK SPROCKETS 10B-1
Pitch 15,875 mm
Inner width 9,65 mm
Roller diameter 10,16 mm
Catalog
No. |
Z |
Bush
No. |
D |
L |
kg/pc |
| 10B1-TL-Z13 |
13 |
1008 |
47 |
22 |
0.23 |
| 10B1-TL-Z14 |
14 |
1108 |
52 |
22 |
0.27 |
| 10B1-TL-Z15 |
15 |
1210 |
60 |
25 |
0.30 |
| 10B1-TL-Z16 |
16 |
1610 |
70 |
25 |
0.38 |
| 10B1-TL-Z17 |
17 |
1610 |
71 |
25 |
0.38 |
| 10B1-TL-Z18 |
18 |
1610 |
75 |
25 |
0.43 |
| 10B1-TL-Z19 |
19 |
1610 |
75 |
25 |
0.54 |
| 10B1-TL-Z20 |
20 |
1610 |
75 |
25 |
0.61 |
| 10B1-TL-Z21 |
21 |
1610 |
76 |
25 |
0.65 |
| 10B1-TL-Z22 |
22 |
1610 |
76 |
25 |
0.72 |
| 10B1-TL-Z23 |
23 |
1610 |
76 |
25 |
0.77 |
| 10B1-TL-Z24 |
24 |
2012 |
90 |
32 |
0.98 |
| 10B1-TL-Z25 |
25 |
2012 |
90 |
32 |
1.05 |
| 10B1-TL-Z26 |
26 |
2012 |
90 |
32 |
1.11 |
| 10B1-TL-Z27 |
27 |
2012 |
90 |
32 |
1.17 |
| 10B1-TL-Z28 |
28 |
2012 |
90 |
32 |
1.29 |
| 10B1-TL-Z30 |
30 |
2012 |
90 |
32 |
1.40 |
| 10B1-TL-Z38 |
38 |
2012 |
100 |
32 |
2.43 |
| 10B1-TL-Z45 |
45 |
2012 |
100 |
32 |
3.07 |
| 10B1-TL-Z57 |
57 |
2012 |
100 |
32 |
4.92 |
| 10B1-TL-Z76 |
76 |
2012 |
100 |
32 |
8.48 |
| 10B1-TL-Z95 |
95 |
2517 |
110 |
45 |
13.25 |
| 10B1-TL-Z114 |
114 |
2517 |
110 |
45 |
19.08 |
|
