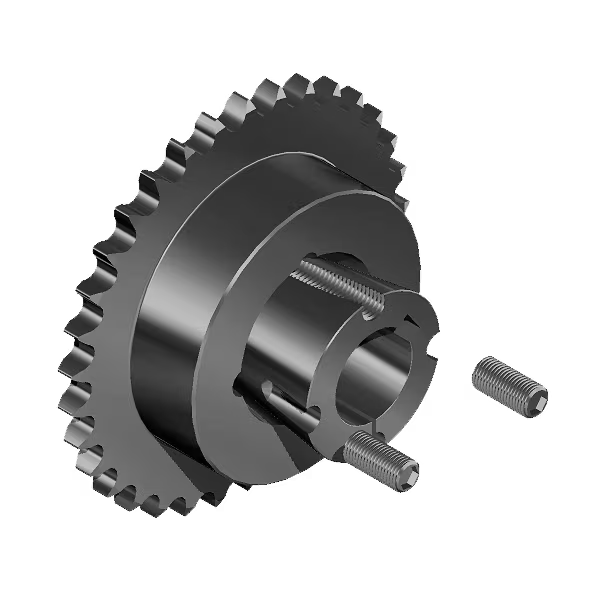

BS Sprocket |Simplex|Taper Bore | 06B-1

Name: BS Sprocket |Simplex|Taper Bore | 06B-1
Brand: CORF TECHNOLOGY
Availability: InStock
Rating: 5 (1 reviews)

Simplex taper bushed sprocket with single hub, European standards (EN)

Sprockets are available in various sizes to fit a range of design solutions. These simplex sprockets have a taper bush and hub profile on one side of the sprocket to connect to the shaft. With a comprehensive range, you can easily find the correct sprocket size for your application. As standard, all sprockets are made from high-quality steels.

Manufactured according to international global standards
Made from high-grade steel and carbon steel

GET A QUOTE

Description

Pignoni per bussole coniche
Taper bored sprockets
Kettenräder für Taper-Spannbuchsen
Pignons à moyeu amovible
Piñones para casquillos cónicos
DIN 8187- ISO/R 606

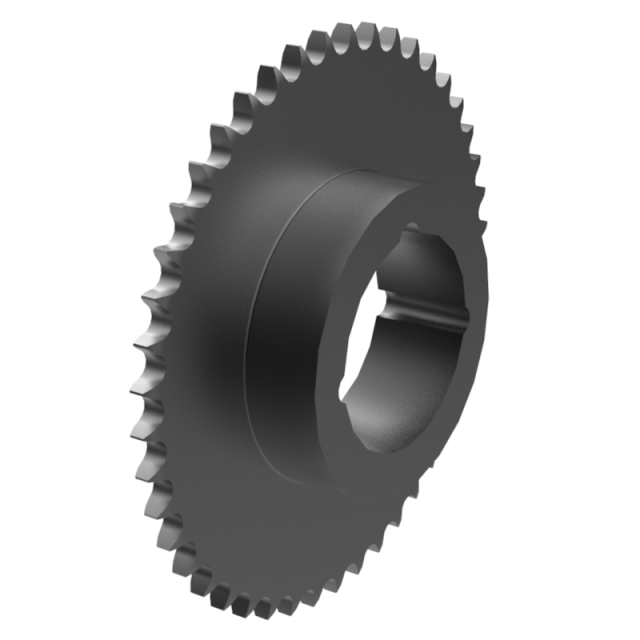

TAPERLOCK SPROCKETS 06B-1
Pitch 9,525 mm
Inner width 5,72 mm
Roller diameter 6,35 mm

Catalog No.	Z	Bush No.	D	L	kg/pc
06B1-TL-Z17	17	1008	45	22	0.11
06B1-TL-Z18	18	1008	45	22	0.14
06B1-TL-Z19	19	1008	45	22	0.15
06B1-TL-Z20	20	1008	46	22	0.16
06B1-TL-Z21	21	1008	46	22	0.18
06B1-TL-Z22	22	1108	50	22	0.25
06B1-TL-Z23	23	1210	63	25	0.27
06B1-TL-Z24	24	1210	63	25	0.30
06B1-TL-Z25	25	1210	63	25	0.32
06B1-TL-Z26	26	1210	63	25	0.33
06B1-TL-Z27	27	1210	63	25	0.34
06B1-TL-Z28	28	1210	63	25	0.37
06B1-TL-Z30	30	1210	63	25	0.39
06B1-TL-Z38	38	1210	70	25	0.65
06B1-TL-Z45	45	1210	70	25	1.01
06B1-TL-Z57	57	1210	70	25	1.34
06B1-TL-Z76	76	1210	70	25	1.84
06B1-TL-Z95	95	1210	80	25	2.88
06B1-TL-Z114	114	1215	80	38	4.15
