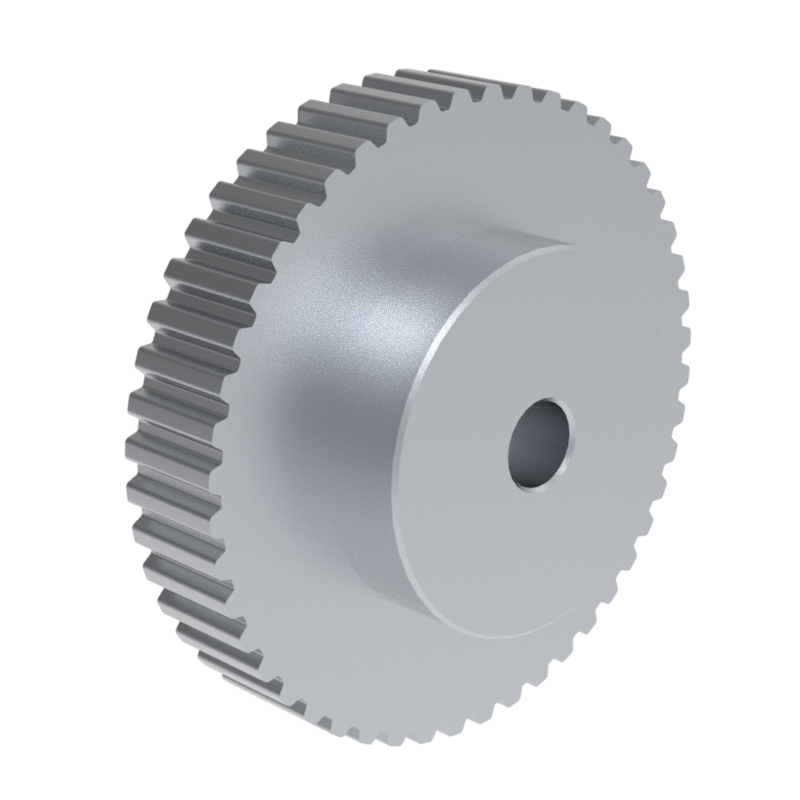

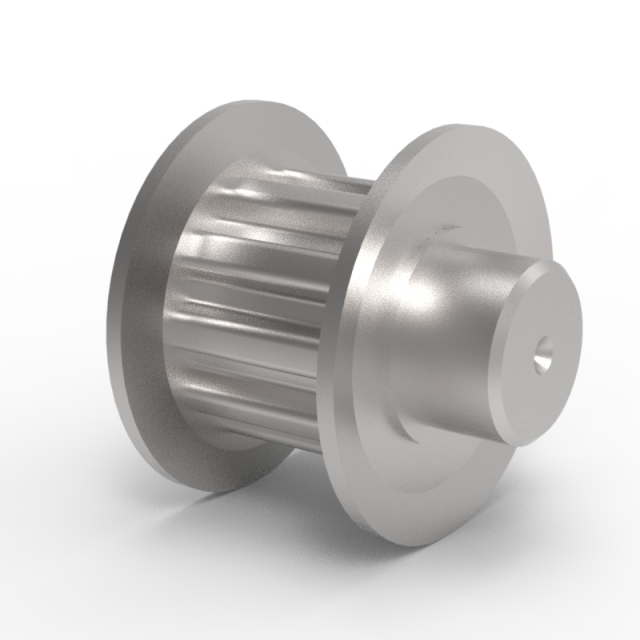

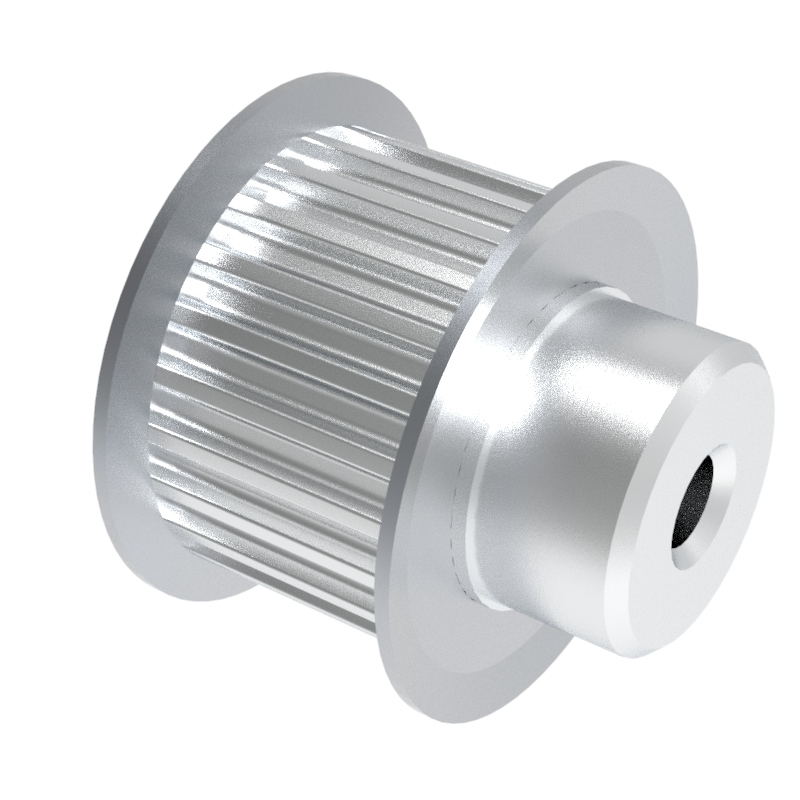

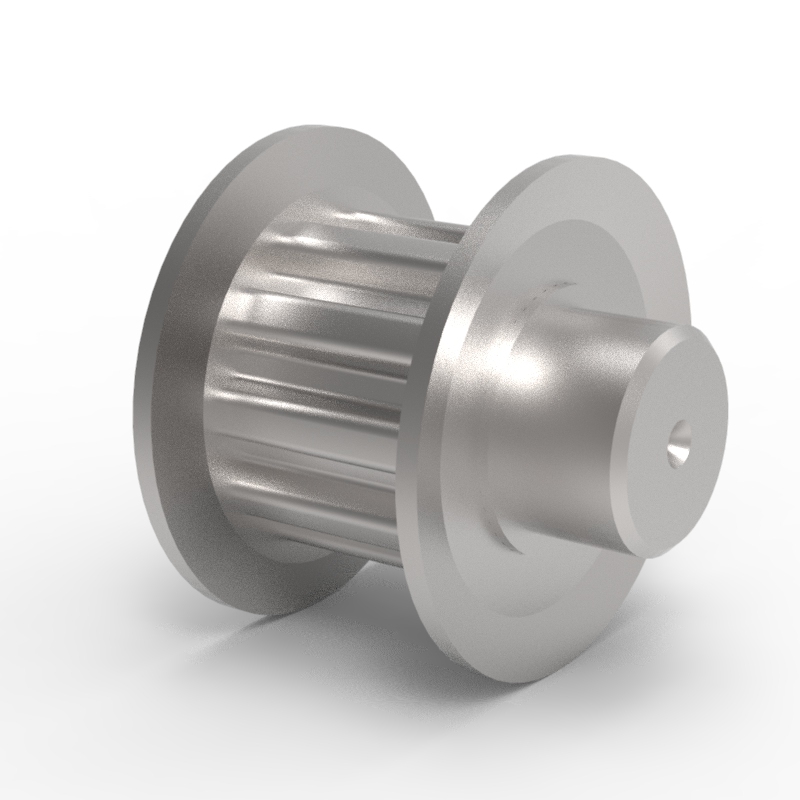

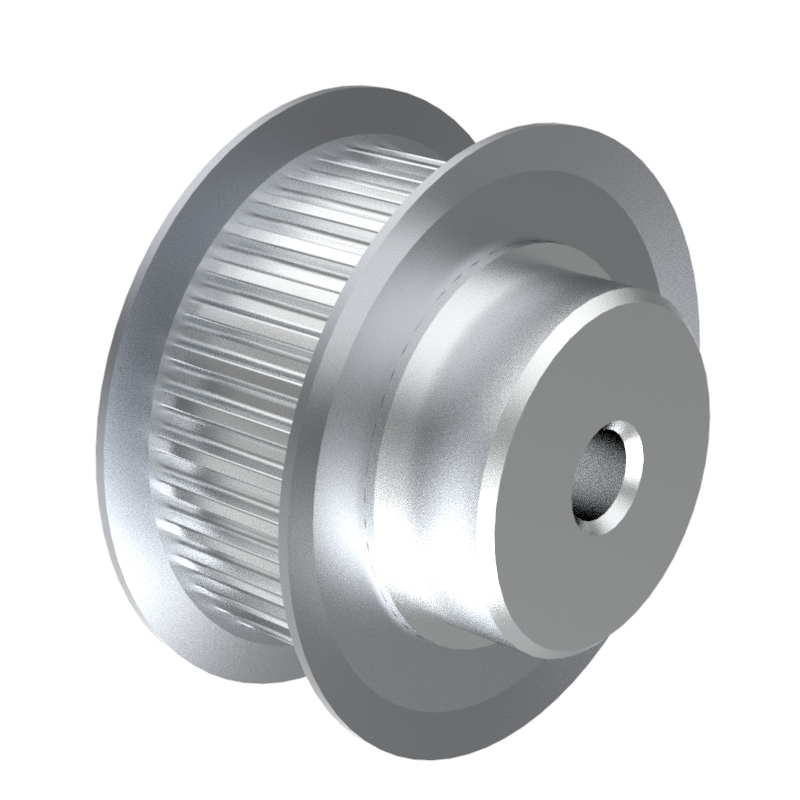

T5-36

No.T5-36

Alloy Aluminium Suitable for Anodic Treatment Bore Type:Plain Bore PITCH=5mm FOR BELT WIDTH=25mm

GET A QUOTE

Description

Timing Pulley |T|pilot bore
T 5
Pitch: 5 mm
FOR 25 mm WIDTH BELTS

Catalog No.	Type	Material	Teeth	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	°	kg/pc
36 T 5 10	2F	Al	10	15.05	20	8	30	36		200	0.02
36 T 5 12	2F	Al	12	18.25	23	10	30	36		201	0.03
36 T 5 14	2F	Al	14	21.45	25	13	30	36		203	0.04
36 T 5 15	2F	Al	15	23.05	28	16	30	36		204	0.04
36 T 5 16	2F	Al	16	24.60	32	18	30	36		205	0.05
36 T 5 18	2F	Al	18	27.80	32	20	30	36		205	0.06
36 T 5 19	2F	Al	19	29.40	36	22	30	36		206	0.07
36 T 5 20	2F	Al	20	31.00	36	23	30	36		206	0.08
36 T 5 22	2F	Al	22	34.25	38	24	30	36		207	0.08
36 T 5 24	2F	Al	24	37.40	42	26	30	36		208	0.11
36 T 5 25	2F	Al	25	38.95	44	26	30	36		209	0.12
36 T 5 26	2F	Al	26	40.60	44	26	30	36		209	0.12
36 T 5 27	2F	Al	27	42.20	48	30	30	36	8	210	0.13
36 T 5 28	2F	Al	28	43.75	48	32	30	36	8	210	0.14
36 T 5 30	2F	Al	30	46.95	51	34	30	36	8	211	0.15
36 T 5 32	2F	Al	32	50.10	54	38	30	36	8	212	0.18
36 T 5 36	2F	Al	36	56.45	63	38	30	36	8	215	0.23
36 T 5 40	2F	Al	40	62.85	66	40	30	36	8	216	0.28
36 T 5 42	2F	Al	42	66.00	71	40	30	36	8	217	0.29
36 T 5 44	2	Al	44	69.20		45	30	36	8		0.31
36 T 5 48	2	Al	48	75.55		50	30	36	8		0.40
36 T 5 60	2	Al	60	94.65		65	30	36	8		0.61
