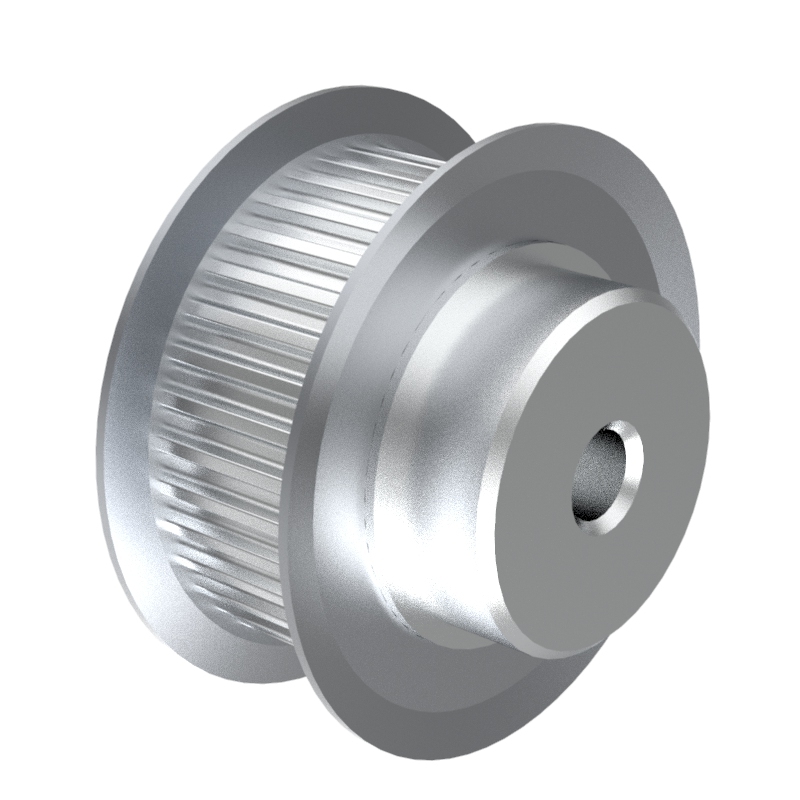

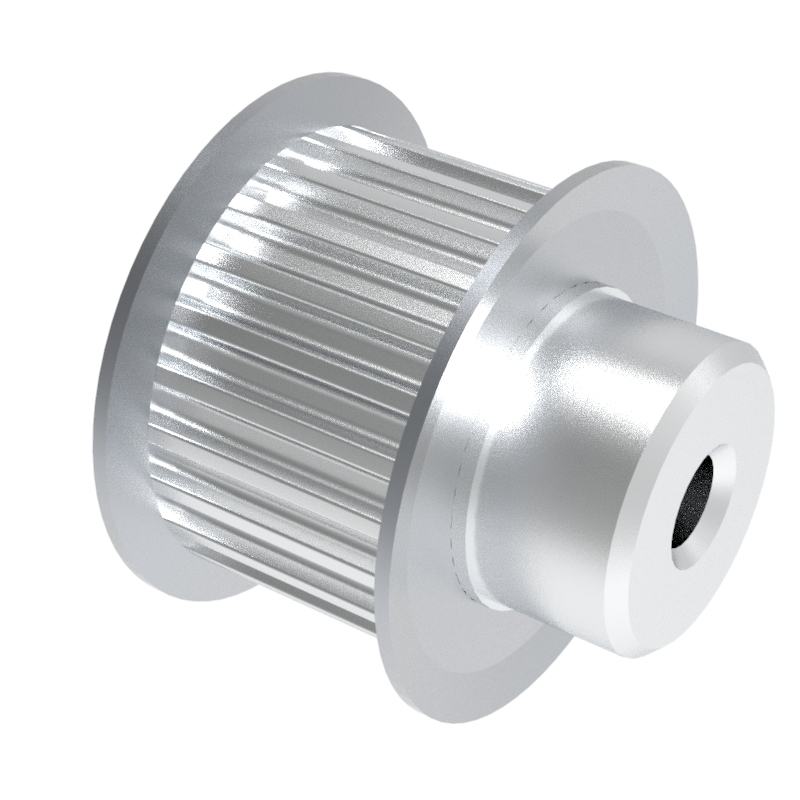

T5-27

No.T5-27

Alloy Aluminium Suitable for Anodic Treatment Bore Type:Plain Bore PITCH=5mm FOR BELT WIDTH=16mm

GET A QUOTE

Description

Timing Pulley |T|pilot bore
T 5
Pitch: 5 mm
FOR 16 mm WIDTH BELTS

Catalog No.	Type	Material	Teeth	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	°	kg/pc
27 T 5 10	2F	Al	10	15.05	20	8	21	27		200	0.02
27 T 5 12	2F	Al	12	18.25	23	10	21	27		201	0.02
27 T 5 14	2F	Al	14	21.45	25	13	21	27		203	0.03
27 T 5 15	2F	Al	15	23.05	28	16	21	27		204	0.03
27 T 5 16	2F	Al	16	24.60	32	18	21	27		205	0.04
27 T 5 18	2F	Al	18	27.80	32	20	21	27		205	0.04
27 T 5 19	2F	Al	19	29.40	36	22	21	27		206	0.05
27 T 5 20	2F	Al	20	31.00	36	23	21	27		206	0.06
27 T 5 22	2F	Al	22	34.25	38	24	21	27		207	0.06
27 T 5 24	2F	Al	24	37.40	42	26	21	27		208	0.08
27 T 5 25	2F	Al	25	38.95	44	26	21	27		209	0.08
27 T 5 26	2F	Al	26	40.60	44	26	21	27		209	0.09
27 T 5 27	2F	Al	27	42.20	48	30	21	27	8	210	0.09
27 T 5 28	2F	Al	28	43.75	48	32	21	27	8	210	0.09
27 T 5 30	2F	Al	30	46.95	51	34	21	27	8	211	0.10
27 T 5 32	2F	Al	32	50.10	54	38	21	27	8	212	0.12
27 T 5 36	2F	Al	36	56.45	63	38	21	27	8	215	0.16
27 T 5 40	2F	Al	40	62.85	66	40	21	27	8	216	0.19
27 T 5 42	2F	Al	42	66.00	71	40	21	27	8	217	0.20

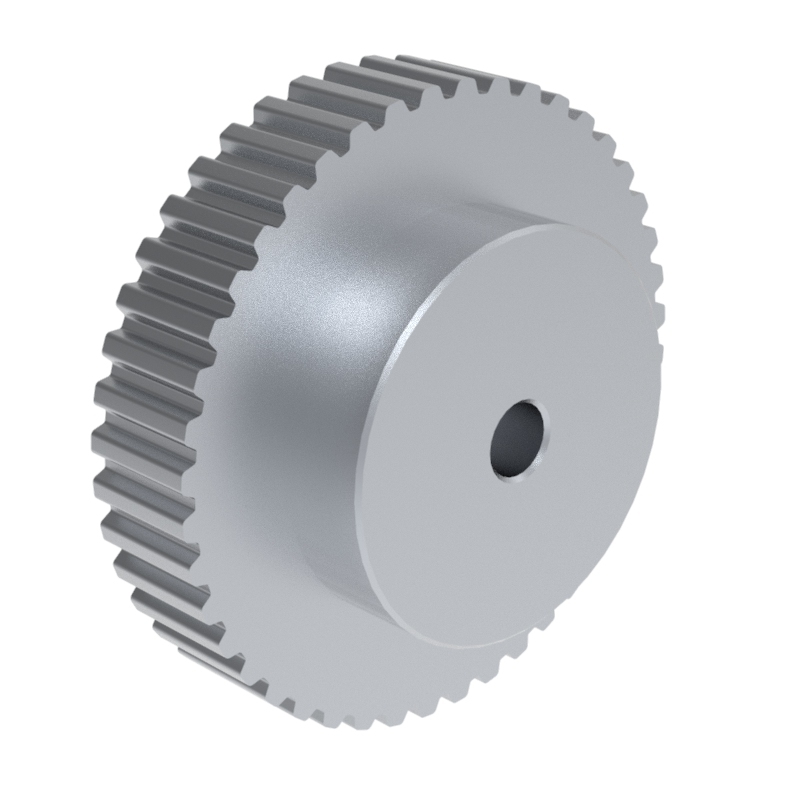

27 T 5 44	2	Al	44	69.20		45	21	27	8		0.23
27 T 5 48	2	Al	48	75.55		50	21	27	8		0.28
27 T 5 60	2	Al	60	94.65		65	21	27	8		0.43
