| Catalog No. |
Type | Material | Teeth | Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Bore Dia |
n ° flange |
Mass per pc |
| de | Df | Dm | F | L | d | (q≈) | |||||
| mm | mm | mm | mm | mm | mm | ° | kg/pc | ||||

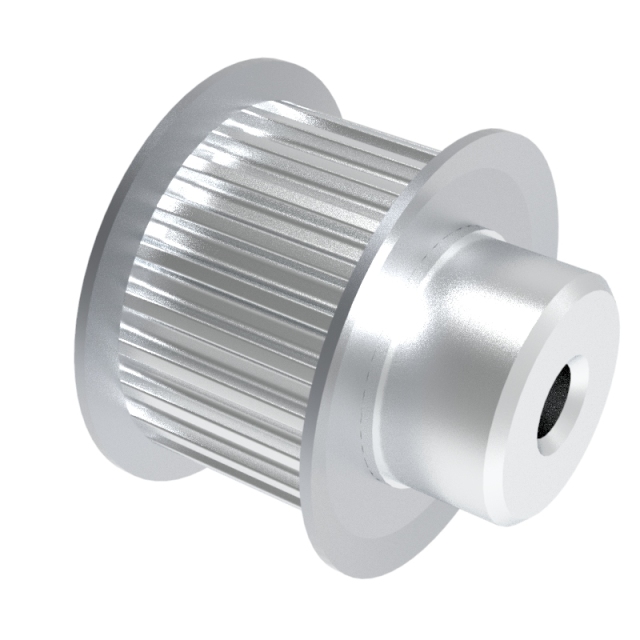

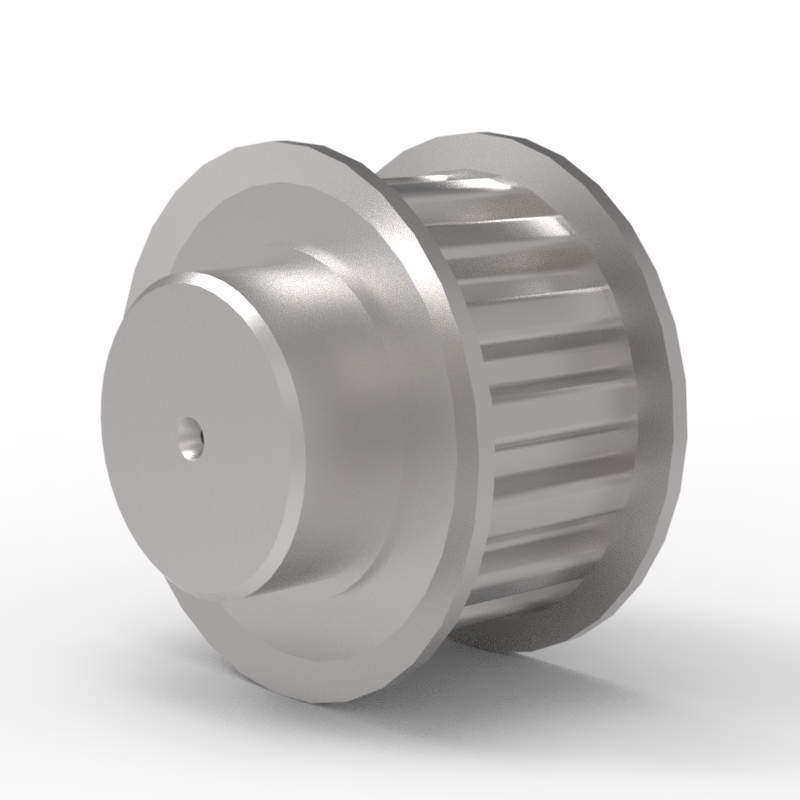

| 21 T 5 10 | 2F | Al | 10 | 15.05 | 20 | 8 | 15 | 21 | 200 | 0.01 | |
| 21 T 5 12 | 2F | Al | 12 | 18.25 | 23 | 10 | 15 | 21 | 201 | 0.01 | |
| 21 T 5 14 | 2F | Al | 14 | 21.45 | 25 | 13 | 15 | 21 | 203 | 0.02 | |
| 21 T 5 15 | 2F | Al | 15 | 23.05 | 28 | 16 | 15 | 21 | 204 | 0.02 | |
| 21 T 5 16 | 2F | Al | 16 | 24.60 | 32 | 18 | 15 | 21 | 205 | 0.03 | |
| 21 T 5 18 | 2F | Al | 18 | 27.80 | 32 | 20 | 15 | 21 | 205 | 0.03 | |
| 21 T 5 19 | 2F | Al | 19 | 29.40 | 36 | 22 | 15 | 21 | 206 | 0.04 | |
| 21 T 5 20 | 2F | Al | 20 | 31.00 | 36 | 23 | 15 | 21 | 206 | 0.04 | |
| 21 T 5 22 | 2F | Al | 22 | 34.25 | 38 | 24 | 15 | 21 | 207 | 0.05 | |
| 21 T 5 24 | 2F | Al | 24 | 37.40 | 42 | 26 | 15 | 21 | 208 | 0.06 | |
| 21 T 5 25 | 2F | Al | 25 | 38.95 | 44 | 26 | 15 | 21 | 209 | 0.06 | |
| 21 T 5 26 | 2F | Al | 26 | 40.60 | 44 | 26 | 15 | 21 | 209 | 0.06 | |
| 21 T 5 27 | 2F | Al | 27 | 42.20 | 48 | 30 | 15 | 21 | 8 | 210 | 0.07 |
| 21 T 5 28 | 2F | Al | 28 | 43.75 | 48 | 32 | 15 | 21 | 8 | 210 | 0.07 |
| 21 T 5 30 | 2F | Al | 30 | 46.95 | 51 | 34 | 15 | 21 | 8 | 211 | 0.07 |
| 21 T 5 32 | 2F | Al | 32 | 50.10 | 54 | 38 | 15 | 21 | 8 | 212 | 0.09 |
| 21 T 5 36 | 2F | Al | 36 | 56.45 | 63 | 38 | 15 | 21 | 8 | 215 | 0.11 |
| 21 T 5 40 | 2F | Al | 40 | 62.85 | 66 | 40 | 15 | 21 | 8 | 216 | 0.14 |
| 21 T 5 42 | 2F | Al | 42 | 66.00 | 71 | 40 | 15 | 21 | 8 | 217 | 0.18 |

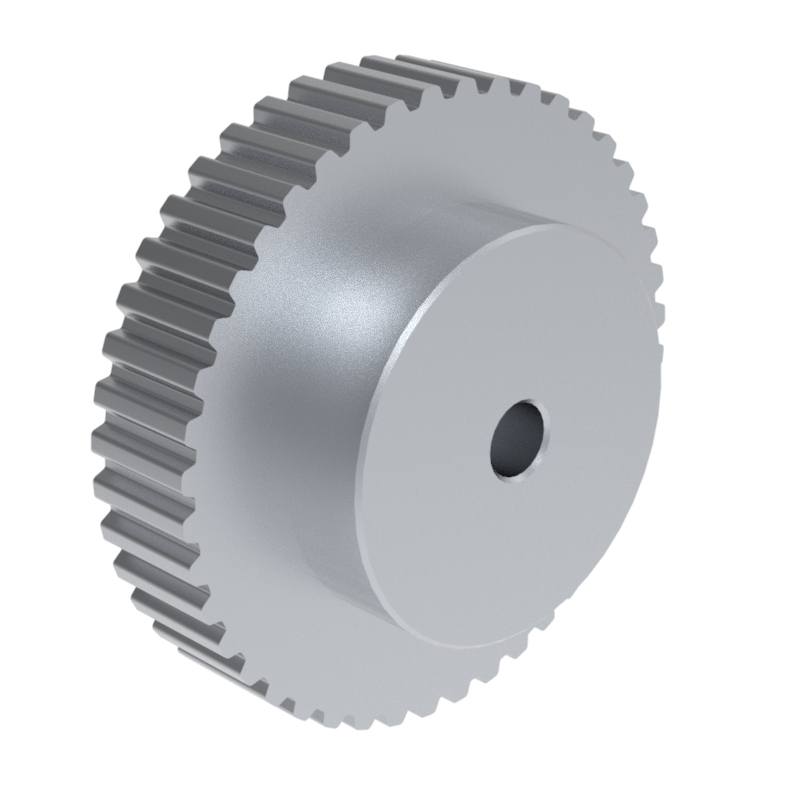

| 21 T 5 44 | 2 | Al | 44 | 69.20 | 45 | 15 | 21 | 8 | 0.18 | ||
| 21 T 5 48 | 2 | Al | 48 | 75.55 | 50 | 15 | 21 | 8 | 0.20 | ||
| 21 T 5 60 | 2 | Al | 60 | 94.65 | 65 | 15 | 21 | 8 | 0.31 |
