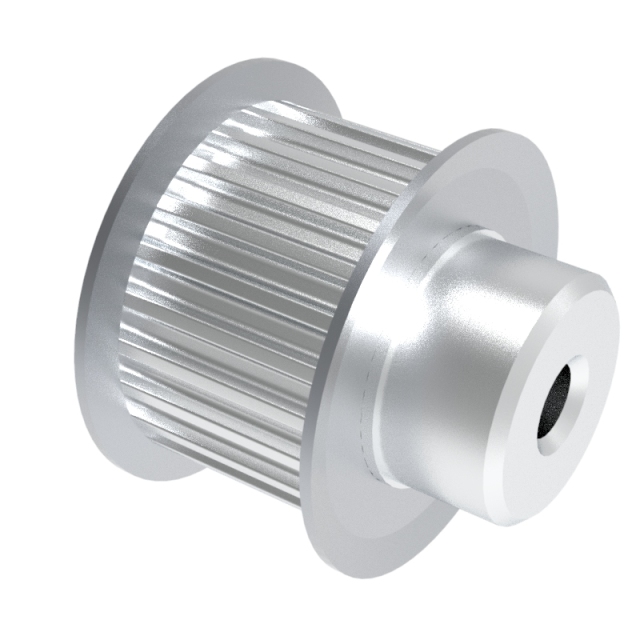

T2.5-16

No.T2.5-16

Alloy Aluminium Suitable for Anodic Treatment Bore Type:Plain Bore PITCH=2.5mm FOR BELT WIDTH=6mm

GET A QUOTE

Description

Timing Pulley |T|pilot bore
T 2.5
Pitch: 2.5 mm
FOR 6 mm WIDTH BELTS

Catalog No.	Type	Material	Teeth	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	°	kg/pc
16 T 2.5 12	1F	Al	12	9.00	13	12	9	16		100	0.01
16 T 2.5 14	1F	Al	14	10.60	15	14	9	16		101	0.01
16 T 2.5 15	1F	Al	15	11.40	15	15	9	16		101	0.01
16 T 2.5 16	1F	Al	16	12.20	16	16	9	16		102	0.01
16 T 2.5 18	2F	Al	18	13.80	18	10	10	16	3	104	0.01
16 T 2.5 19	2F	Al	19	14.60	18	10	10	16	3	104	0.01
16 T 2.5 20	2F	Al	20	15.40	20	11	10	16	3	105	0.01
16 T 2.5 22	2F	Al	22	17.00	23	11	10	16	3	106	0.01
16 T 2.5 24	2F	Al	24	18.55	23	12	10	16	3	107	0.01
16 T 2.5 25	2F	Al	25	19.35	23	13	10	16	3	107	0.01
16 T 2.5 26	2F	Al	26	20.15	25	14	10	16	4	108	0.01
16 T 2.5 28	2F	Al	28	21.75	25	14	10	16	4	108	0.02
16 T 2.5 30	2F	Al	30	23.35	28	16	10	16	6	109	0.02
16 T 2.5 32	2F	Al	32	24.95	32	16	10	16	6	110	0.02
16 T 2.5 36	2F	Al	36	28.10	36	20	10	16	6	111	0.03
16 T 2.5 40	2F	Al	40	31.30	38	22	10	16	6	112	0.03

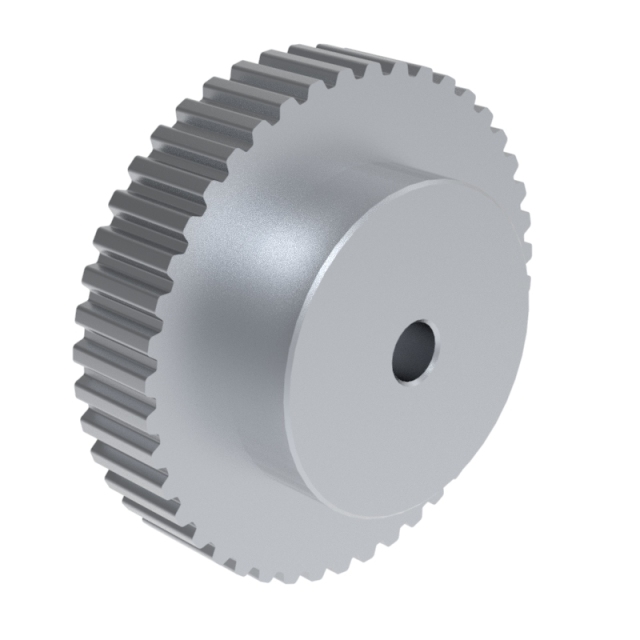

16 T 2.5 44	2	Al	44	34.50		24	10	16	6		0.04
16 T 2.5 48	2	Al	48	37.70		26	10	16	6		0.05
16 T 2.5 60	2	Al	60	47.25		34	10	16	8		0.07
