T10-47

No.T10-47

Alloy Aluminium Suitable for Anodic Treatment Bore Type:Plain Bore PITCH=10mm FOR BELT WIDTH=30mm

GET A QUOTE

Description

Timing Pulley |T|pilot bore
T 10
Pitch: 10 mm
FOR 32 mm WIDTH BELTS

Catalog No.	Type	Material	Teeth	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	°	kg/pc

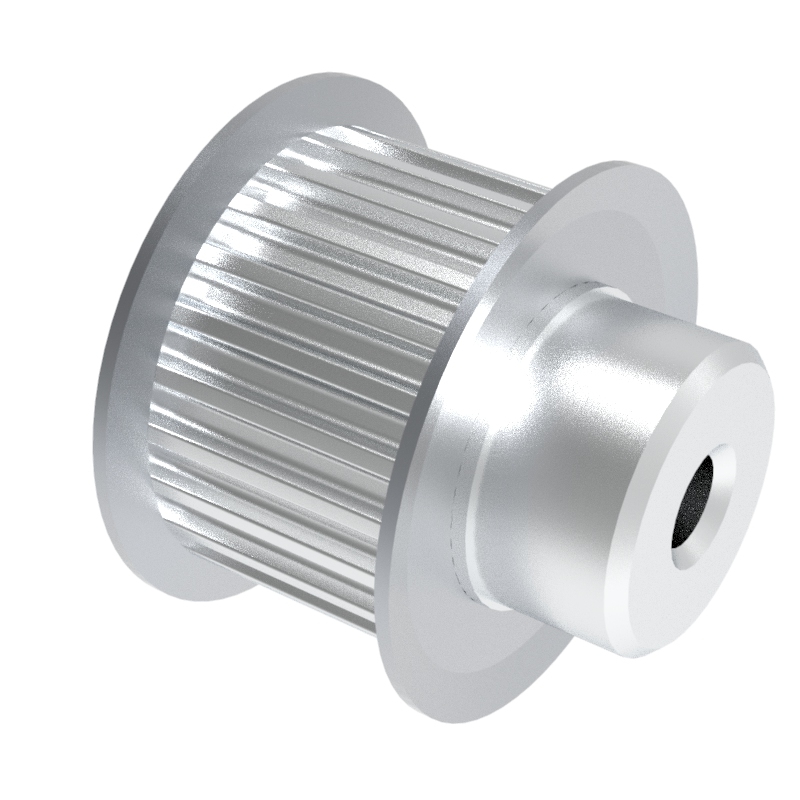

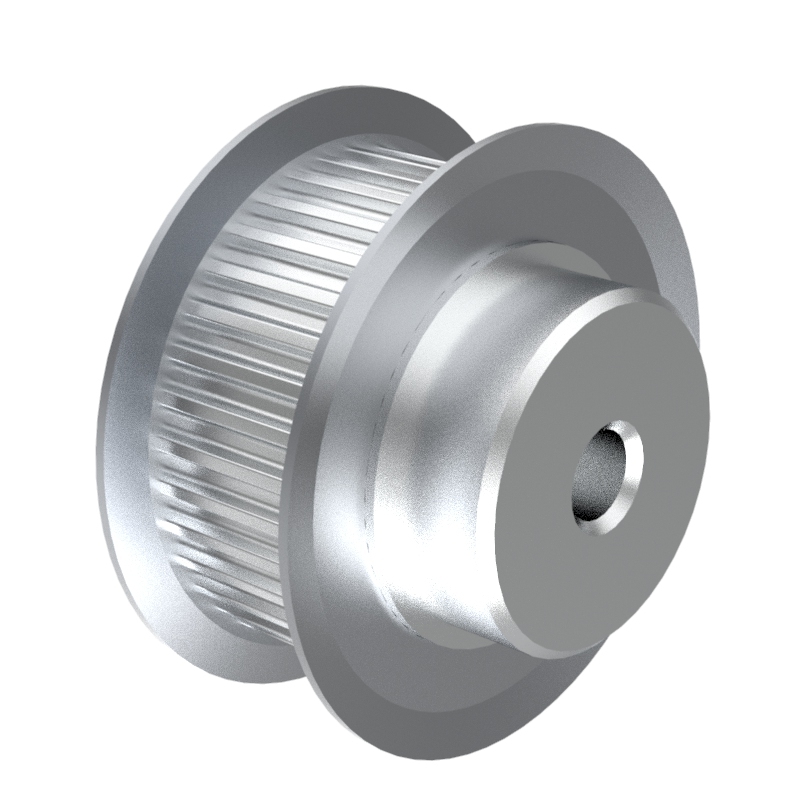

47 T 10 18	2F	Al	18	55.45	60	40	37	47	10	214	0.25
47 T 10 19	2F	Al	19	58.65	66	44	37	47	10	216	0.29
47 T 10 20	2F	Al	20	61.80	66	46	37	47	12	216	0.32
47 T 10 22	2F	Al	22	68.20	75	52	37	47	12	218	0.39
47 T 10 24	2F	Al	24	74.55	83	58	37	47	12	219	0.47
47 T 10 25	2F	Al	25	77.75	83	60	37	47	12	219	0.53
47 T 10 26	2F	Al	26	80.90	87	60	37	47	12	220	0.56
47 T 10 27	2F	Al	27	84.10	91	60	37	47	12	221	0.60
47 T 10 28	2F	Al	28	87.25	93	60	37	47	12	222	0.64
47 T 10 30	2F	Al	30	93.65	97	60	37	47	12	223	0.74
47 T 10 32	2F	Al	32	100.00	106	65	37	47	12	224	0.84
47 T 10 36	2F	Al	36	112.75	119	70	37	47	16	225	1.06
47 T 10 40	2F	Al	40	125.45	131	80	37	47	16	226	1.32

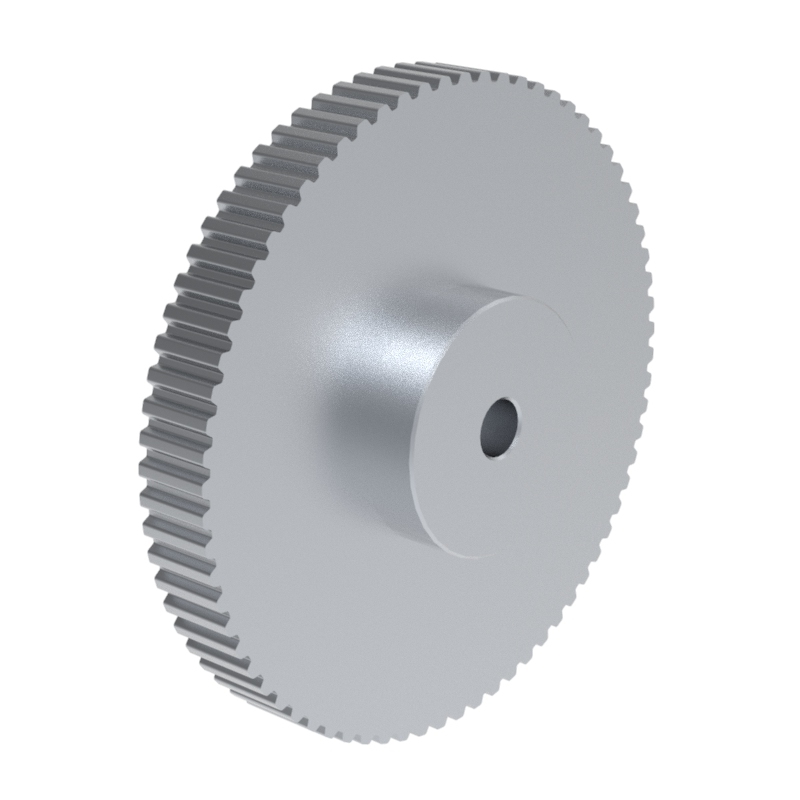

47 T 10 44	2	Al	44	138.20		88	37	47	16		1.61
47 T 10 48	2	Al	48	150.95		95	37	47	16		1.93
47 T 10 60	2	Al	60	189.10		110	37	47	16		3.00
