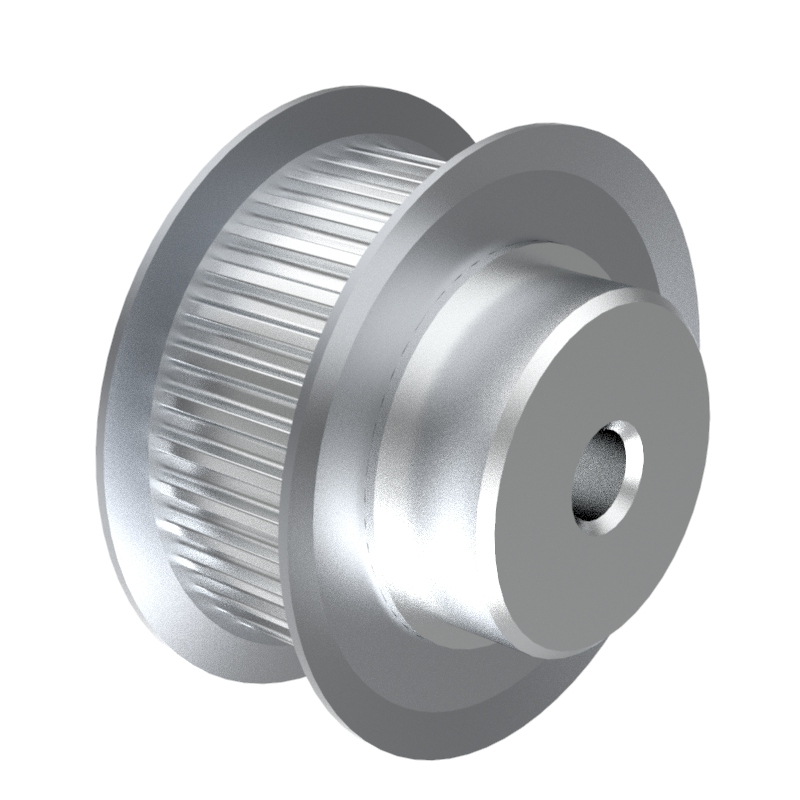

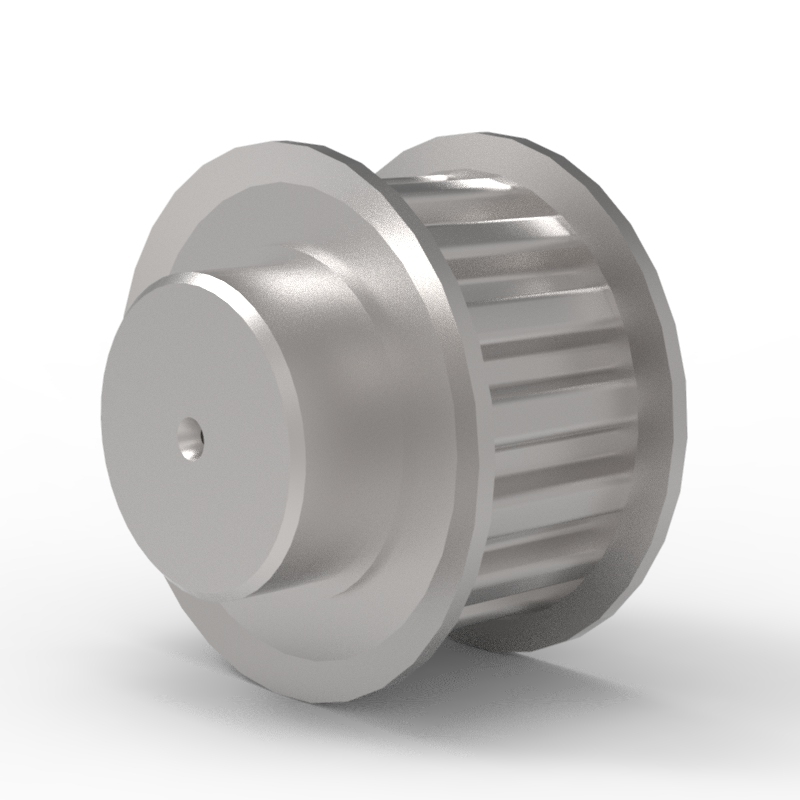

T10-40

No.T10-40

Alloy Aluminium Suitable for Anodic Treatment Bore Type:Plain Bore PITCH=10mm FOR BELT WIDTH=25mm

GET A QUOTE

Description

Catalog No.	Type	Material	Teeth	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	°	kg/pc
40 T 10 12	2F	Al	12	36.35	42	28	30	40	6	208	0.10
40 T 10 14	2F	Al	14	42.70	48	32	30	40	8	210	0.13
40 T 10 15	2F	Al	15	45.90	51	32	30	40	8	211	0.15
40 T 10 16	2F	Al	16	49.10	54	35	30	40	8	212	0.18
40 T 10 18	2F	Al	18	55.45	60	40	30	40	8	214	0.22
40 T 10 19	2F	Al	19	58.65	66	44	30	40	8	216	0.25
40 T 10 20	2F	Al	20	61.80	66	46	30	40	8	216	0.28
40 T 10 22	2F	Al	22	68.20	75	52	30	40	8	218	0.34
40 T 10 24	2F	Al	24	74.55	83	58	30	40	8	219	0.39
40 T 10 25	2F	Al	25	77.75	83	60	30	40	8	219	0.42
40 T 10 26	2F	Al	26	80.90	87	60	30	40	8	220	0.48
40 T 10 27	2F	Al	27	84.10	91	60	30	40	8	221	0.54
40 T 10 28	2F	Al	28	87.25	93	60	30	40	8	222	0.55
40 T 10 30	2F	Al	30	93.65	97	60	30	40	8	223	0.64
40 T 10 32	2F	Al	32	100.00	106	65	30	40	10	224	0.69
40 T 10 36	2F	Al	36	112.75	119	70	30	40	10	225	0.87
40 T 10 40	2F	Al	40	125.45	131	80	30	40	10	226	1.07

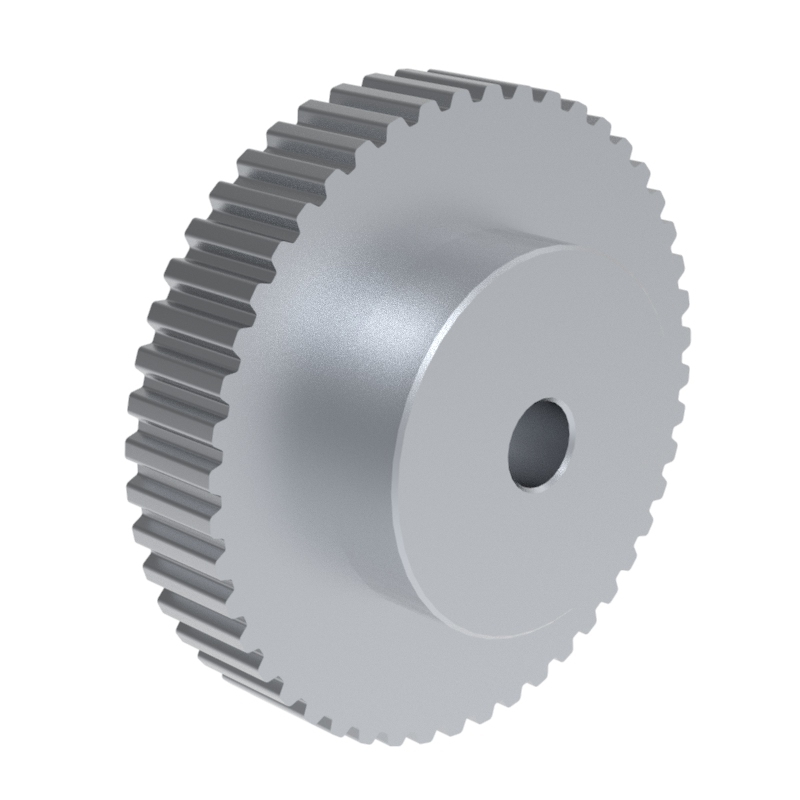

40 T 10 44	2	Al	44	138.20		88	30	40	10		1.35
40 T 10 48	2	Al	48	150.95		95	30	40	16		1.52
40 T 10 60	2	Al	60	189.15		110	30	40	16		2.34
