| Catalog No. |
Type | Material | Teeth | Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Bore Dia |
n ° flange |
Mass per pc |
| de | Df | Dm | F | L | d | (q≈) | |||||
| mm | mm | mm | mm | mm | mm | ° | kg/pc | ||||

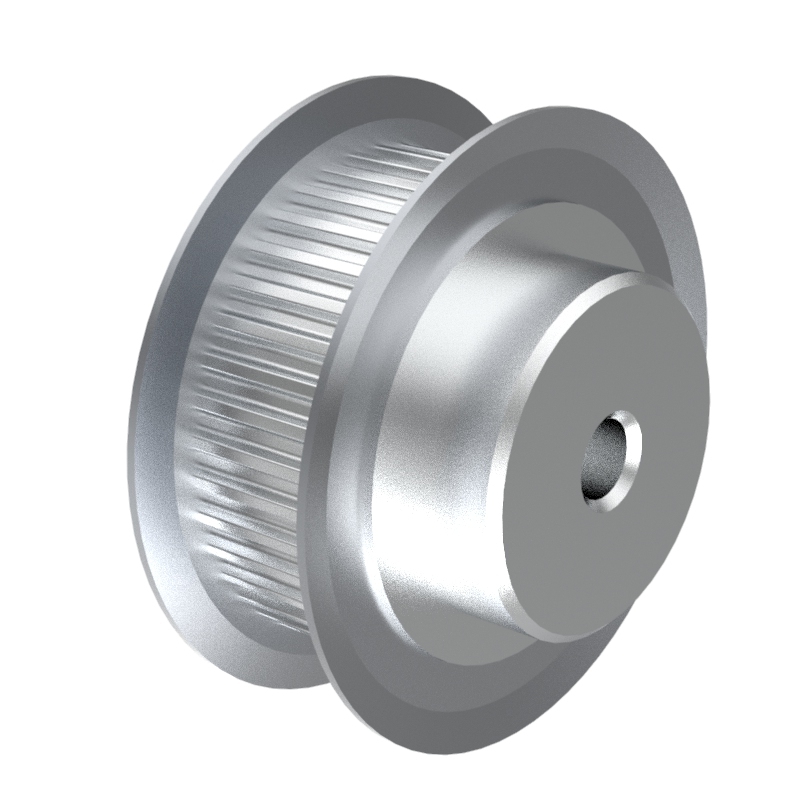

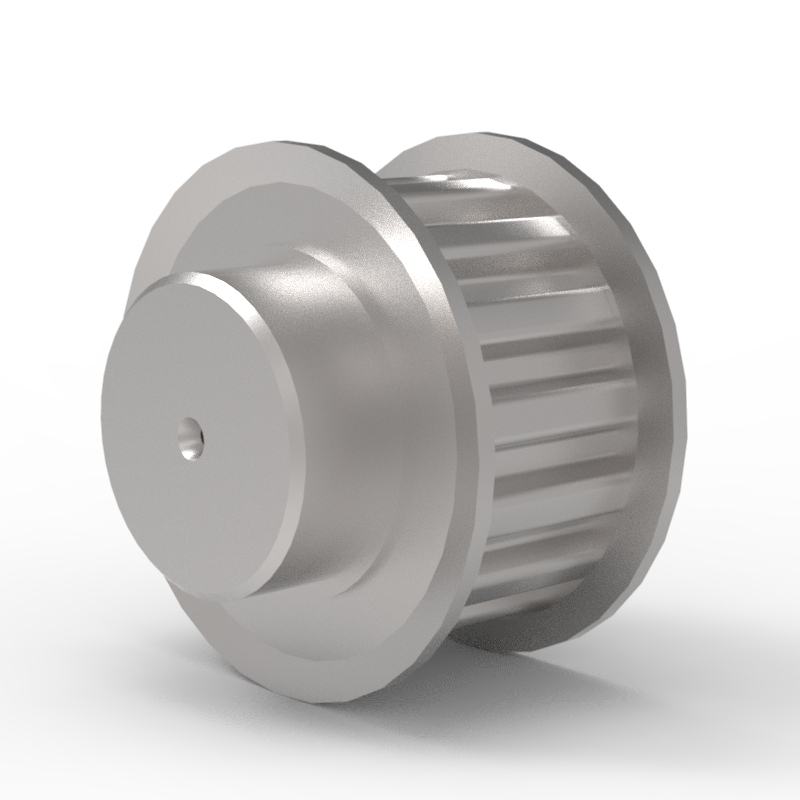

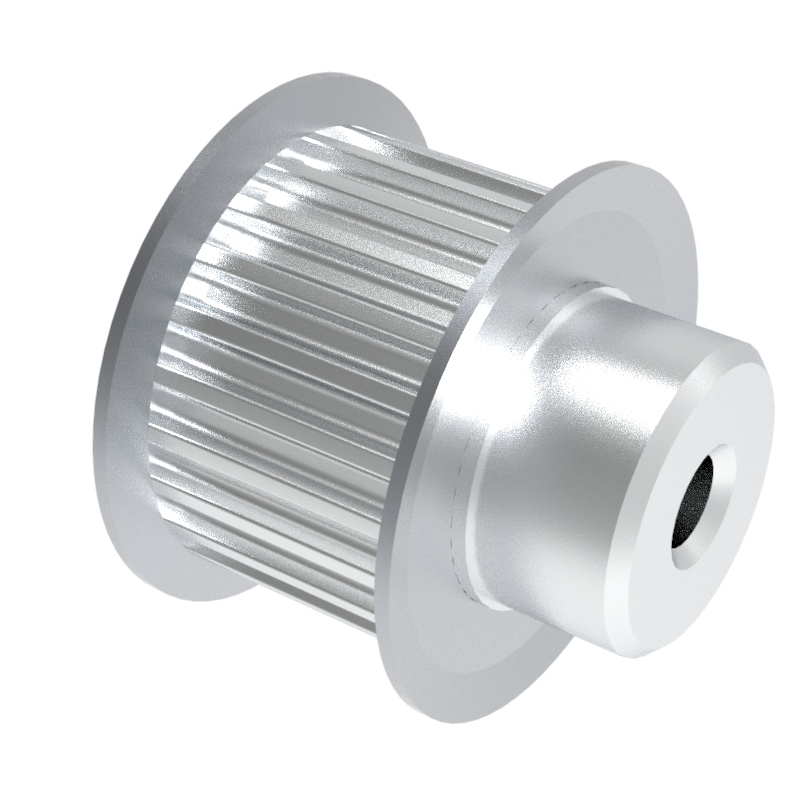

| 31 T 10 12 | 2F | Al | 12 | 36.35 | 42 | 28 | 21 | 31 | 6 | 208 | 0.08 |
| 31 T 10 14 | 2F | Al | 14 | 42.70 | 48 | 32 | 21 | 31 | 8 | 210 | 0.10 |
| 31 T 10 15 | 2F | Al | 15 | 45.90 | 51 | 32 | 21 | 31 | 8 | 211 | 0.12 |
| 31 T 10 16 | 2F | Al | 16 | 49.10 | 54 | 35 | 21 | 31 | 8 | 212 | 0.13 |
| 31 T 10 18 | 2F | Al | 18 | 55.45 | 60 | 40 | 21 | 31 | 8 | 214 | 0.17 |
| 31 T 10 19 | 2F | Al | 19 | 58.65 | 66 | 44 | 21 | 31 | 8 | 216 | 0.18 |
| 31 T 10 20 | 2F | Al | 20 | 61.80 | 66 | 46 | 21 | 31 | 8 | 216 | 0.21 |
| 31 T 10 22 | 2F | Al | 22 | 68.20 | 75 | 52 | 21 | 31 | 8 | 218 | 0.25 |
| 31 T 10 24 | 2F | Al | 24 | 74.55 | 83 | 58 | 21 | 31 | 8 | 219 | 0.29 |
| 31 T 10 25 | 2F | Al | 25 | 77.75 | 83 | 60 | 21 | 31 | 8 | 219 | 0.31 |
| 31 T 10 26 | 2F | Al | 26 | 80.90 | 87 | 60 | 21 | 31 | 8 | 220 | 0.36 |
| 31 T 10 27 | 2F | Al | 27 | 84.10 | 91 | 60 | 21 | 31 | 8 | 221 | 0.37 |
| 31 T 10 28 | 2F | Al | 28 | 87.25 | 93 | 60 | 21 | 31 | 8 | 222 | 0.40 |
| 31 T 10 30 | 2F | Al | 30 | 93.65 | 97 | 60 | 21 | 31 | 8 | 223 | 0.44 |
| 31 T 10 32 | 2F | Al | 32 | 100.00 | 106 | 65 | 21 | 31 | 10 | 224 | 0.49 |
| 31 T 10 36 | 2F | Al | 36 | 112.75 | 119 | 70 | 21 | 31 | 10 | 225 | 0.62 |
| 31 T 10 40 | 2F | Al | 40 | 125.45 | 131 | 80 | 21 | 31 | 10 | 226 | 0.77 |

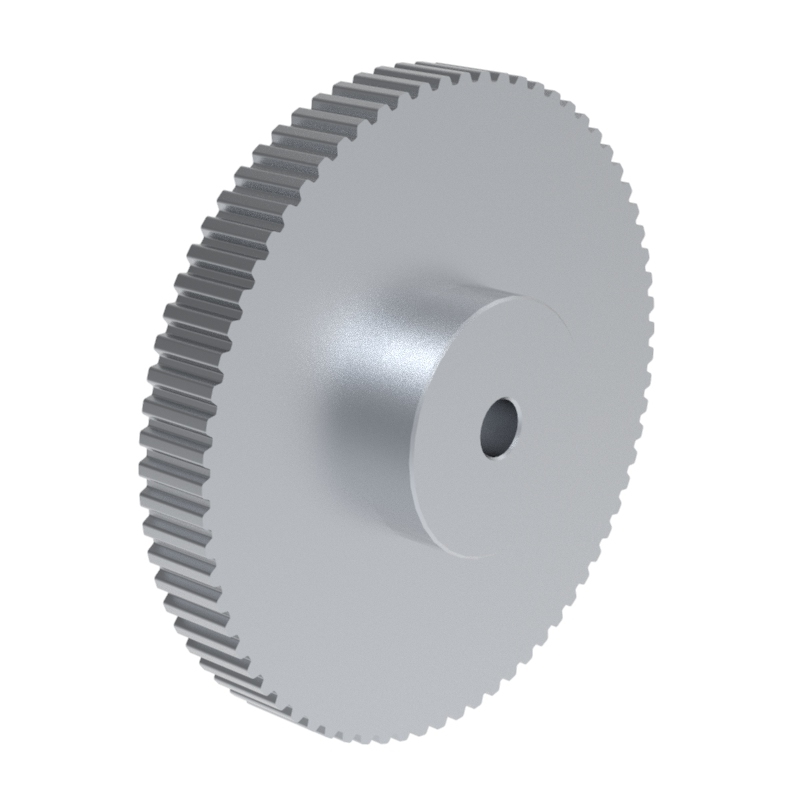

| 31 T 10 44 | 2 | Al | 44 | 138.20 | 88 | 21 | 31 | 10 | 1.00 | ||
| 31 T 10 48 | 2 | Al | 48 | 150.95 | 95 | 21 | 31 | 16 | 1.10 | ||
| 31 T 10 60 | 2 | Al | 60 | 189.15 | 110 | 21 | 31 | 16 | 1.70 |
