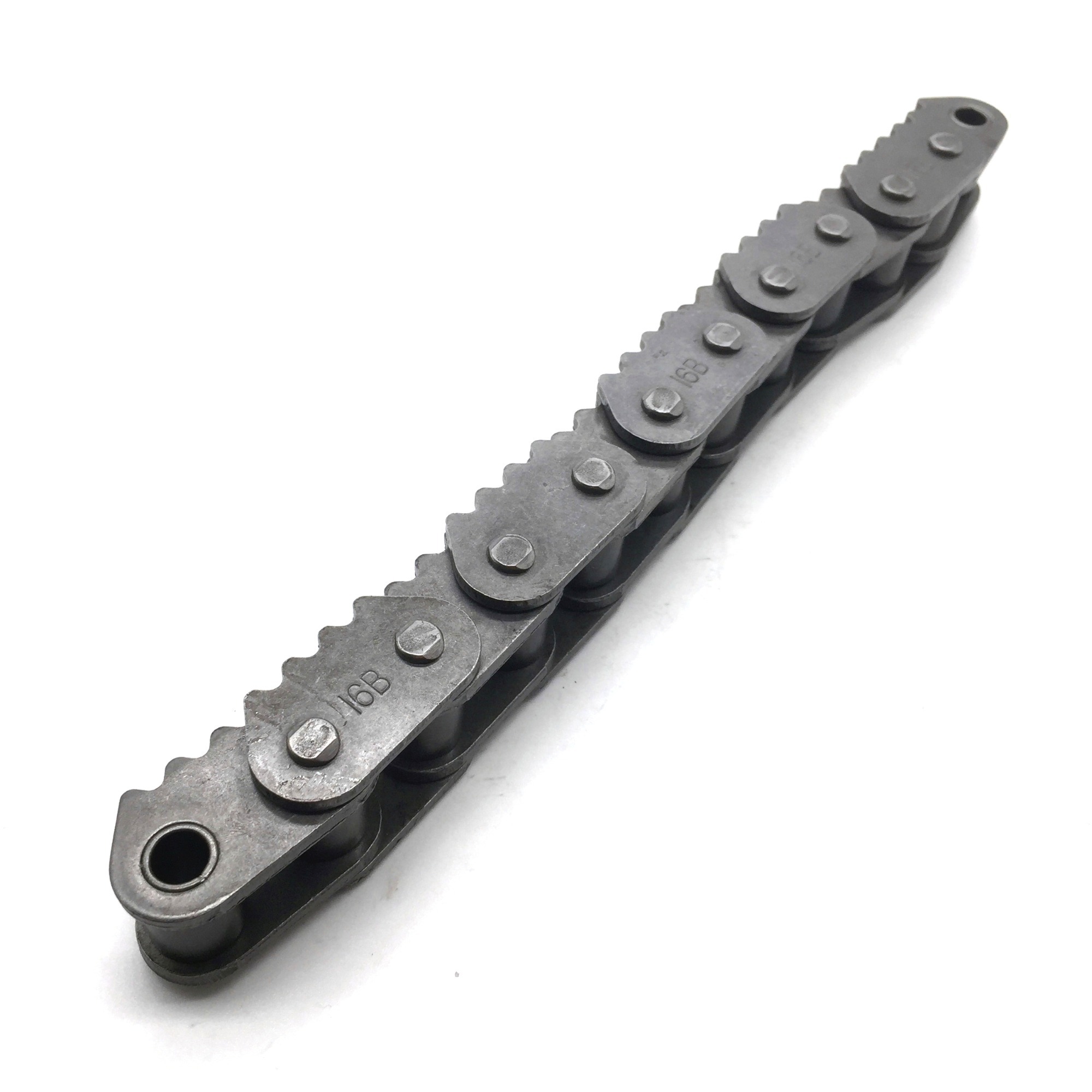

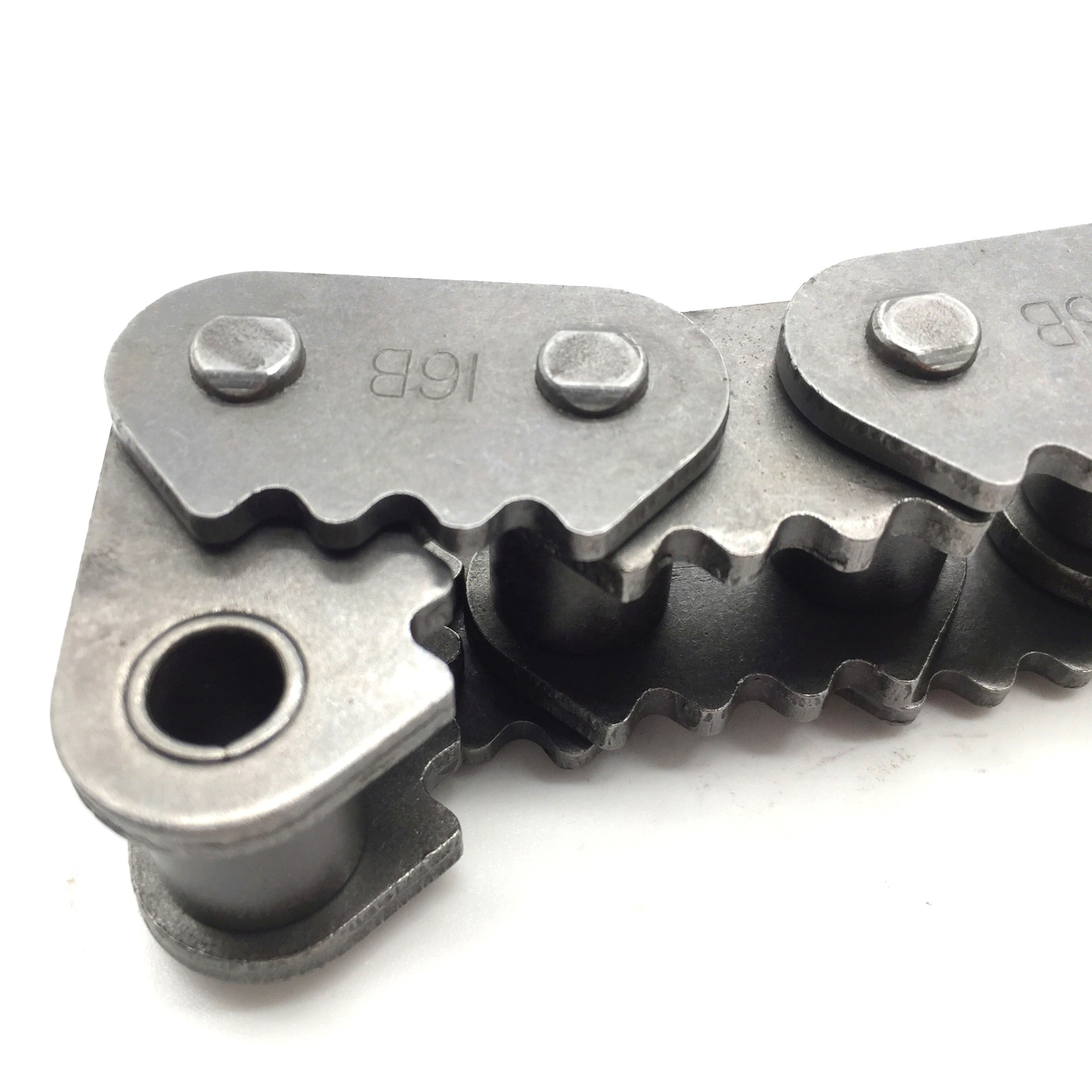

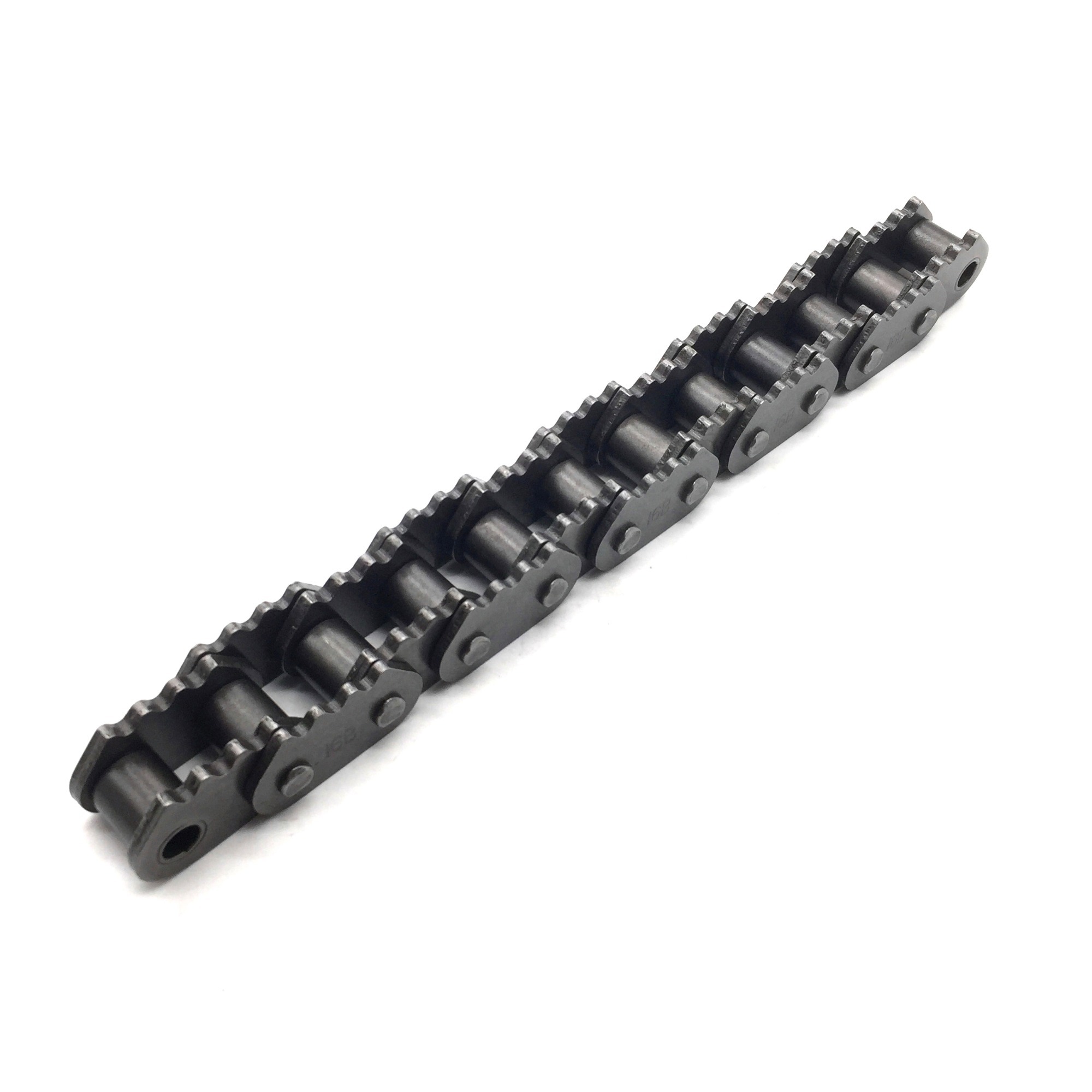

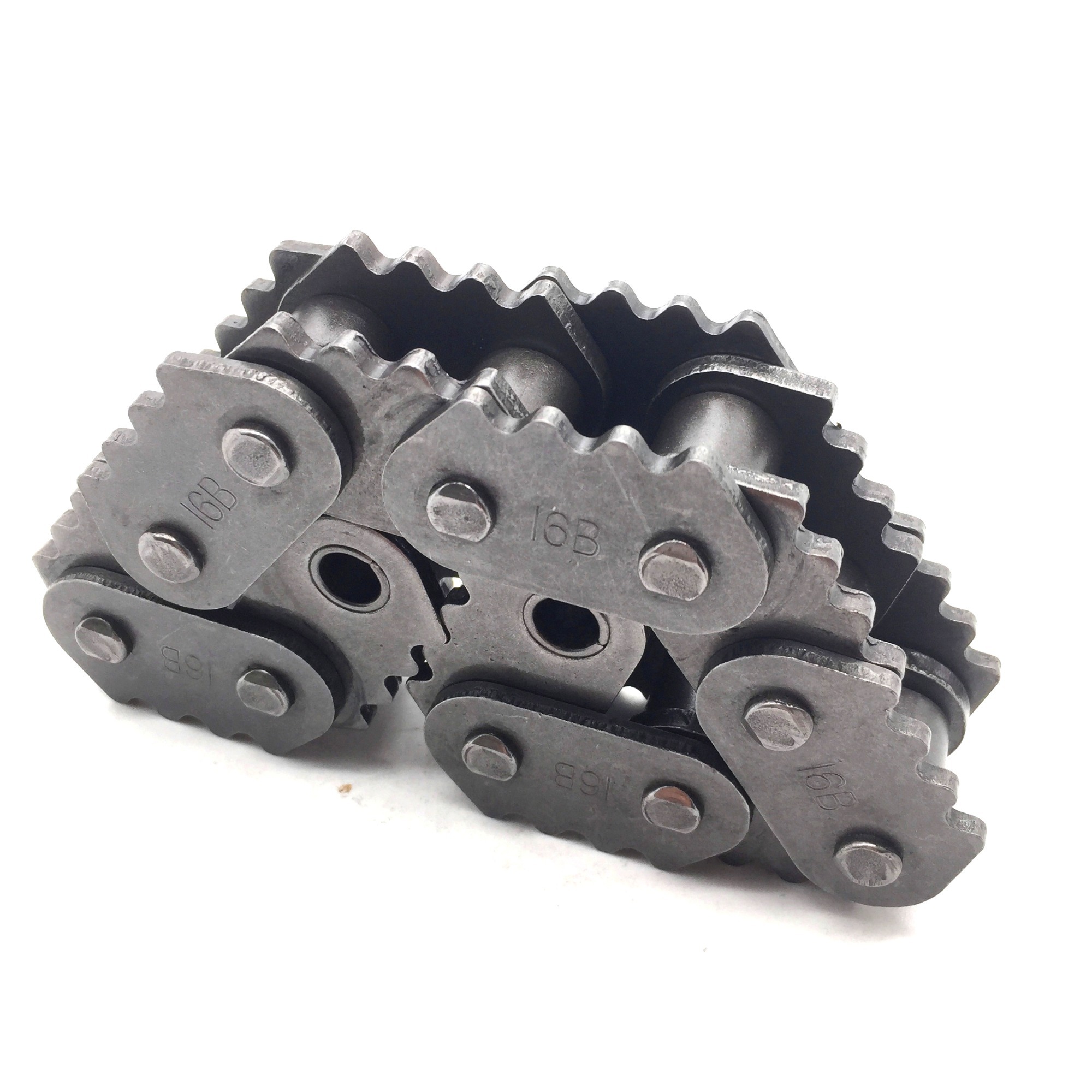

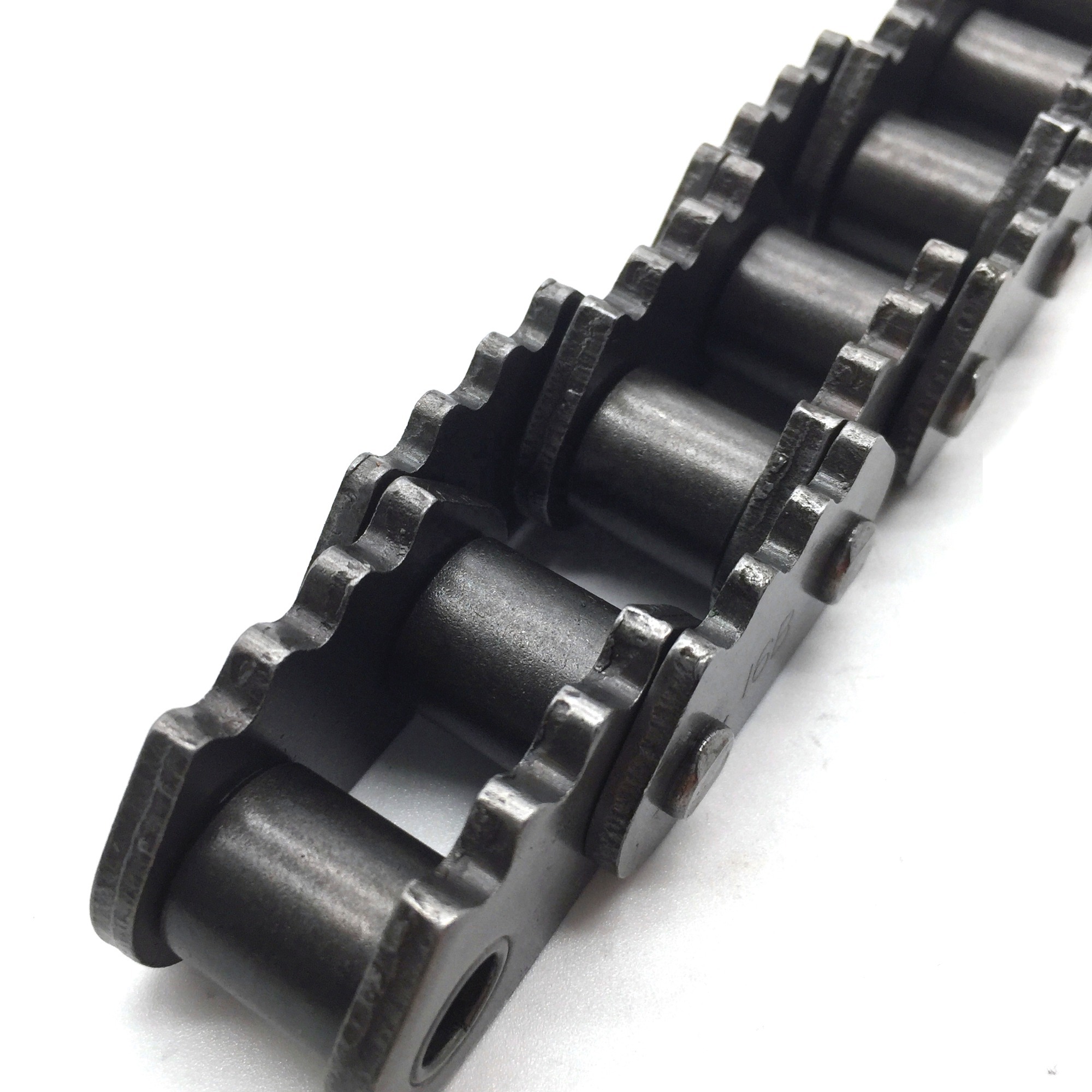

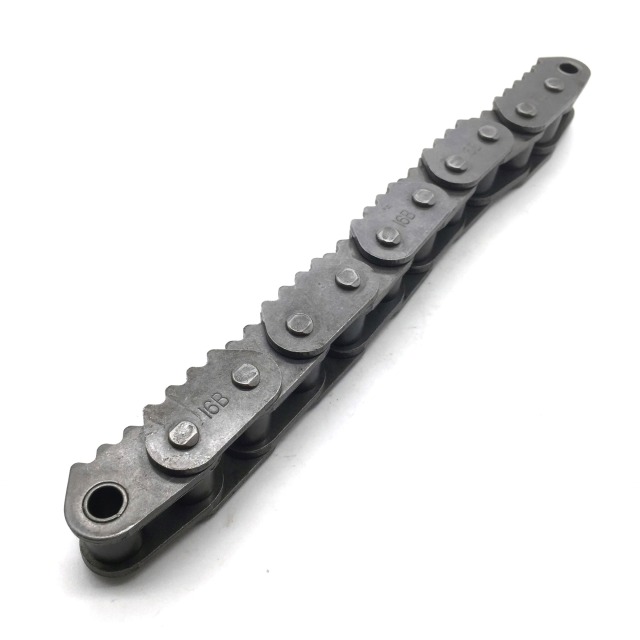

| chain No. |
Pitch | Roller dimension |
Width between inner plates |
Pin diameter |
Pin length | Distance romfhole centre to tooth |
Distance between two teeth |
Trans- verse pitch | Ultimate tensile strength |
Weight per meter |
Type |
| P | d1 max | b1 min | d2 max | L max |
C nom |
S nom |
Pt | Fu min | q ≈ |
||
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | ||
| C16AT1-3 | 25.40 | 15.88 | 15.75 | 7.92 | 91.70 | 17.50 | 12.20 | 29.29 | 166.80 | 0.25 | A |
| C16AT2-3 | 25.40 | 15.88 | 15.75 | 7.92 | 91.70 | 17.50 | 6.35 | 29.29 | 166.80 | 0.79 | A |
| C20AT1-2 | 31.75 | 19.05 | 18.90 | 5.93 | 76.40 | 21.09 | 23.11 | 35.76 | 173.50 | 1.36 | B |
| C20AT1-3 | 31.75 | 19.05 | 18.90 | 5.93 | 112.20 | 21.09 | 23.11 | 35.76 | 2603.20 | 2.19 | B |
