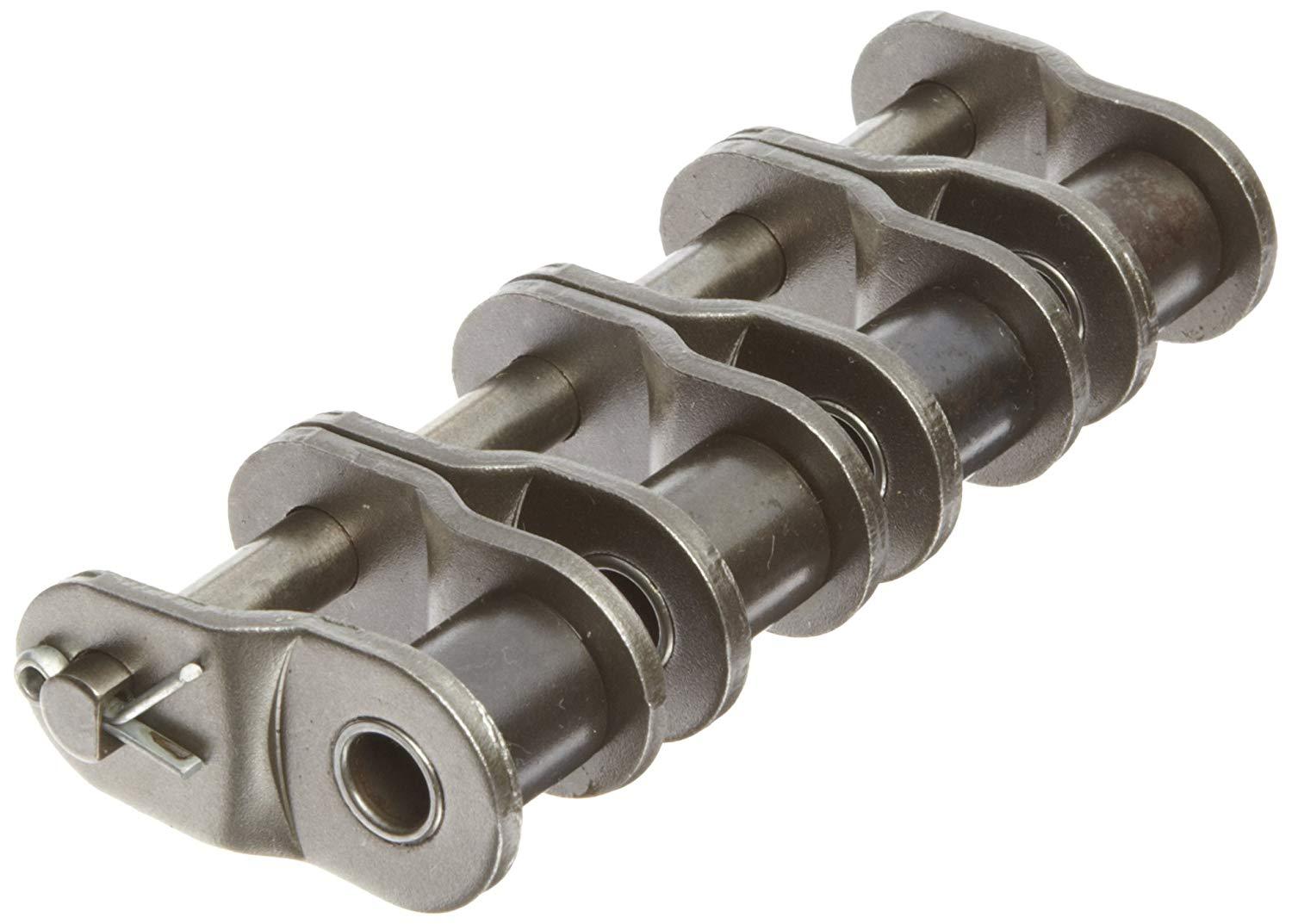

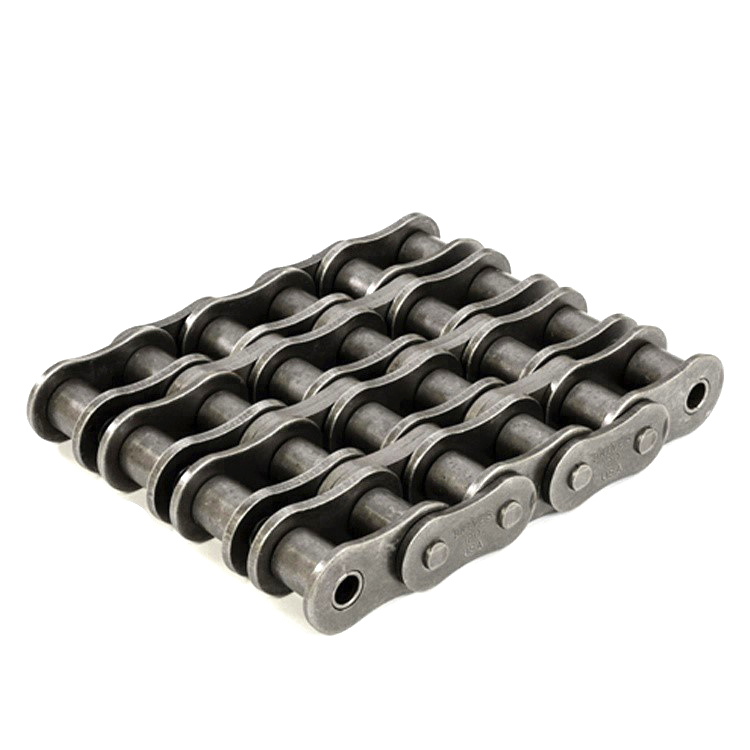

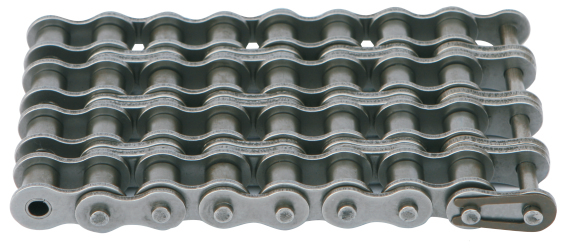

| Chain No. |
pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Width over bearing pins |
Width over connecting pins |
Inner plates depth |
Transverse pitch |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Mass per meter |
|
| GB ISO DIN |
ANSI | p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | pt | T | Fu min | Fua | q≈ |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | N | kg/m | ||
| 16A-4 | 80-4 | 25.40 | 15.88 | 15.75 | 7.94 | 121.4 | 126.8 | 24.13 | 29.29 | 3.18 | 222.4 | 237.0 | 10.50 |
| 16A-5 | 80-5 | 25.40 | 15.88 | 15.75 | 7.94 | 150.7 | 156.1 | 24.13 | 29.29 | 3.18 | 278.0 | 296.0 | 13.11 |
| 16A-6 | 80-6 | 25.40 | 15.88 | 15.75 | 7.94 | 180.0 | 185.4 | 24.13 | 29.29 | 3.18 | 333.6 | 356.0 | 15.73 |
| 20A-4 | 100-4 | 31.75 | 19.05 | 18.90 | 9.54 | 148.4 | 154.5 | 30.17 | 35.76 | 3.96 | 348.0 | 370.0 | 15.70 |
| 20A-5 | 100-5 | 31.75 | 19.05 | 18.90 | 9.54 | 184.1 | 190.2 | 30.17 | 35.76 | 3.96 | 435.0 | 462.0 | 19.53 |
| 20A-6 | 100-6 | 31.75 | 19.05 | 18.90 | 9.54 | 219.9 | 226.0 | 30.17 | 35.76 | 3.96 | 522.0 | 555.0 | 23.48 |
| 24A-4 | 120-4 | 38.10 | 22.23 | 25.22 | 11.11 | 187.1 | 193.7 | 36.20 | 45.44 | 4.75 | 500.0 | 531.0 | 23.36 |
| 24A-5 | 120-5 | 38.10 | 22.23 | 25.22 | 11.11 | 232.6 | 239.2 | 36.20 | 45.44 | 4.75 | 625.0 | 664.0 | 29.16 |
| 24A-6 | 120-6 | 38.10 | 22.23 | 25.22 | 11.11 | 278.0 | 284.6 | 36.20 | 45.44 | 4.75 | 750.0 | 796.0 | 34.96 |
| 28A-4 | 140-4 | 44.45 | 25.40 | 25.22 | 12.71 | 201.5 | 208.9 | 42.23 | 48.87 | 5.56 | 680.0 | 720.0 | 28.52 |
| 28A-5 | 140-5 | 44.45 | 25.40 | 25.22 | 12.71 | 250.4 | 257.8 | 42.23 | 48.87 | 5.56 | 850.0 | 900.0 | 36.97 |
| 28A-6 | 140-6 | 44.45 | 25.40 | 25.22 | 12.71 | 299.3 | 306.7 | 42.23 | 48.87 | 5.56 | 1020.0 | 1081.0 | 44.30 |
| 32A-4 | 160-4 | 50.80 | 28.58 | 31.55 | 14.29 | 241.2 | 249.1 | 48.26 | 58.55 | 6.35 | 892.0 | 945.5 | 40.06 |
| 32A-5 | 160-5 | 50.80 | 28.58 | 31.55 | 14.29 | 299.7 | 307.6 | 48.26 | 58.55 | 6.35 | 1115.0 | 1182.0 | 49.89 |
| 32A-6 | 160-6 | 50.80 | 28.58 | 31.55 | 14.29 | 358.3 | 366.2 | 48.26 | 58.55 | 6.35 | 1338.0 | 1418.0 | 59.93 |
