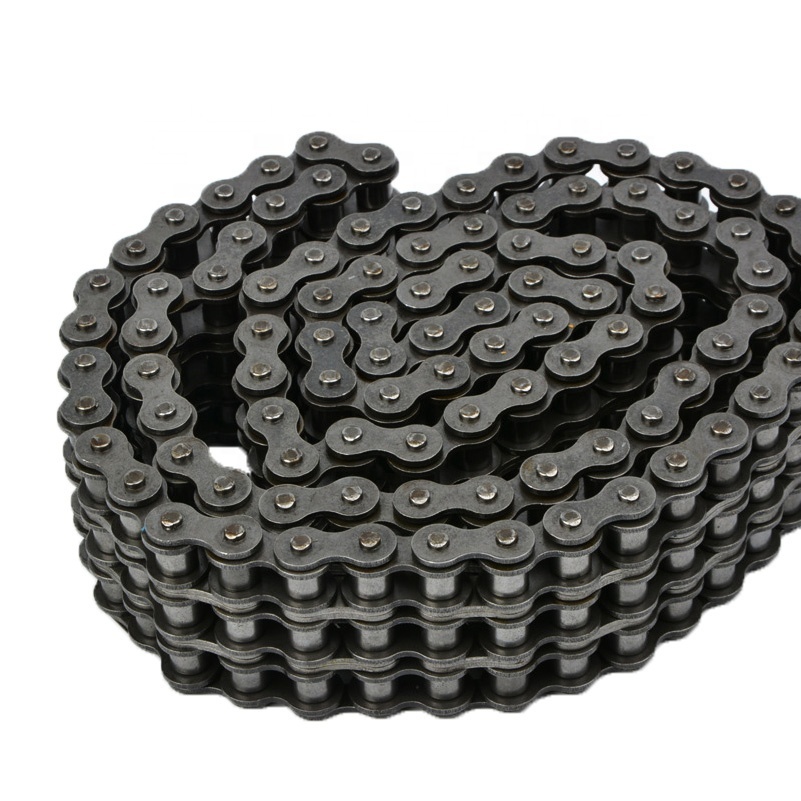

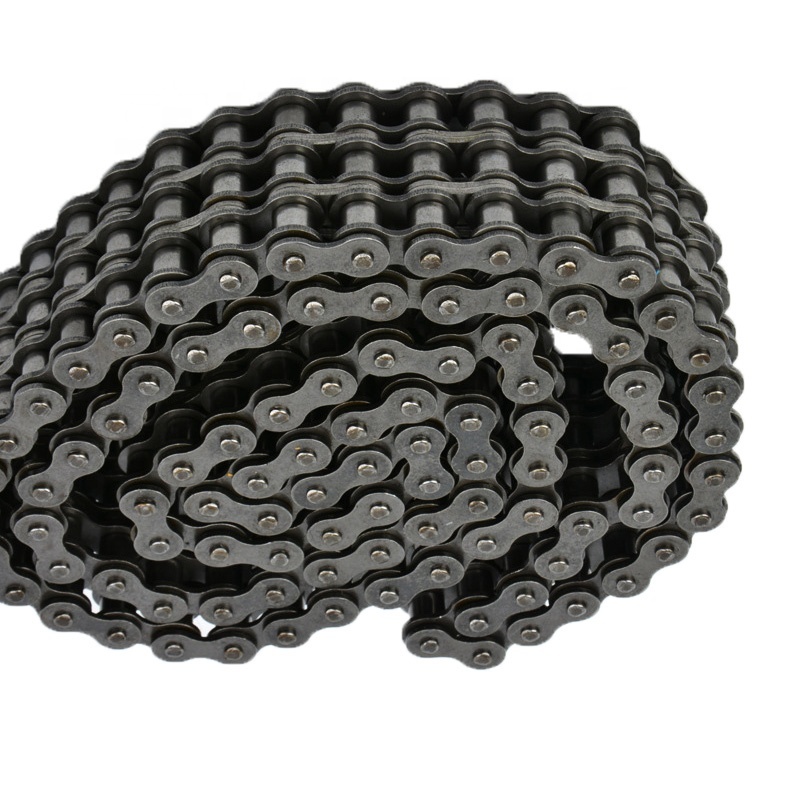

| Chain No. |
pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Width over bearing pins |
Width over connecting pins |
Inner plates depth |
Transverse pitch |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Mass per meter |
|
| GB ISO DIN |
ANSI | p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | pt | T | Fu min | Fua | q≈ |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | N | kg/m | ||
| *04C-3 | *25-3 | 6.35 | 3.30 | 3.10 | 2.31 | 21.8 | 24.3 | 6.02 | 6.40 | 0.76 | 10.5 | 12.0 | 0.44 |
| *06C-3 | *35-3 | 9.525 | 5.08 | 4.68 | 3.60 | 33.5 | 36.8 | 9.05 | 10.13 | 1.27 | 23.7 | 27.2 | 1.05 |
| 08A-3 | 40-3 | 12.7 | 7.92 | 7.85 | 3.98 | 46.7 | 50.6 | 12.07 | 14.38 | 1.52 | 41.7 | 47.5 | 1.80 |
| 10A-3 | 50-3 | 15.88 | 10.16 | 9.40 | 5.09 | 57.9 | 62.0 | 15.09 | 18.11 | 2.03 | 65.4 | 74.0 | 2.90 |
| 12A-3 | 60-3 | 19.05 | 11.91 | 12.57 | 5.96 | 72.6 | 77.2 | 18.10 | 22.78 | 2.39 | 93.9 | 106.0 | 4.30 |
| 16A-3 | 80-3 | 25.4 | 15.88 | 15.75 | 7.94 | 91.9 | 97.3 | 24.13 | 29.29 | 3.18 | 166.8 | 188.5 | 7.50 |
| 20A-3 | 100-3 | 31.75 | 19.05 | 18.90 | 9.54 | 113.0 | 119.1 | 30.17 | 35.76 | 3.96 | 261.0 | 294.0 | 11.00 |
| 24A-3 | 120-3 | 38.1 | 22.23 | 25.22 | 11.11 | 141.7 | 148.3 | 36.20 | 45.44 | 4.75 | 375.0 | 415.0 | 16.50 |
| 28A-3 | 140-3 | 44.45 | 25.40 | 25.22 | 12.71 | 152.4 | 159.8 | 42.23 | 48.87 | 5.56 | 510.0 | 564.0 | 21.70 |
| 32A-3 | 160-3 | 50.8 | 28.58 | 31.55 | 14.29 | 182.9 | 190.8 | 48.26 | 58.55 | 6.35 | 669.0 | 742.0 | 28.30 |
| 36A-3 | 180-3 | 57.15 | 35.71 | 35.48 | 17.46 | 206.0 | 215.1 | 54.30 | 65.84 | 7.14 | 843.0 | 934.0 | 38.22 |
| 40A-3 | 200-3 | 63.5 | 39.68 | 37.85 | 19.85 | 223.5 | 233.7 | 60.33 | 71.55 | 7.92 | 1041.0 | 1157.0 | 48.00 |
| 48A-3 | 240-3 | 76.2 | 47.63 | 47.35 | 23.81 | 271.3 | 281.8 | 72.39 | 87.83 | 9.52 | 1500.0 | 1699.0 | 66.00 |
