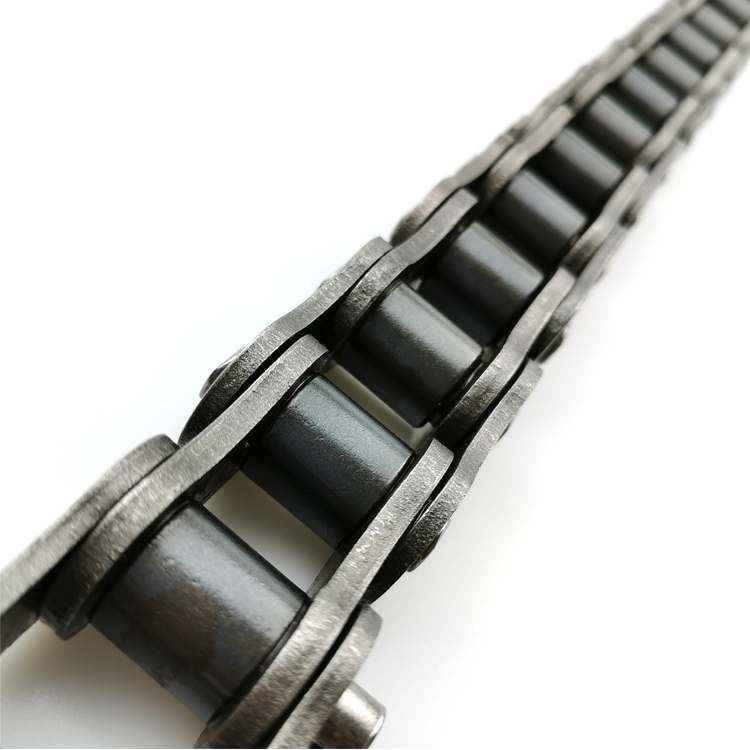

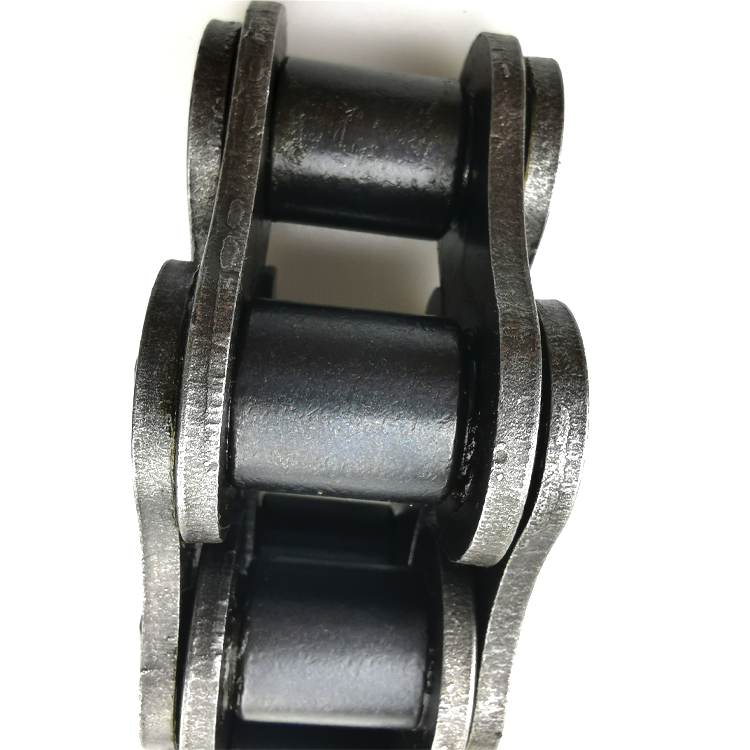

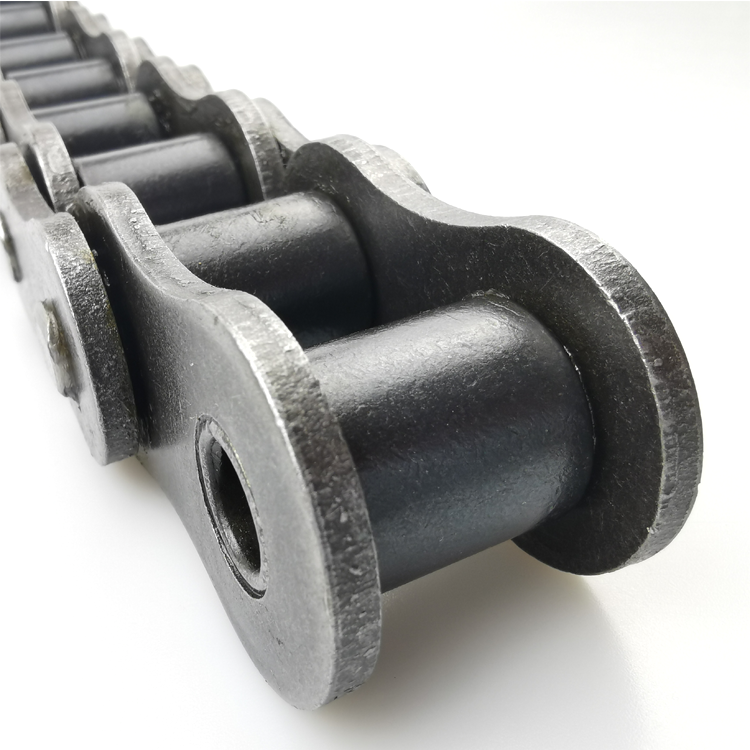

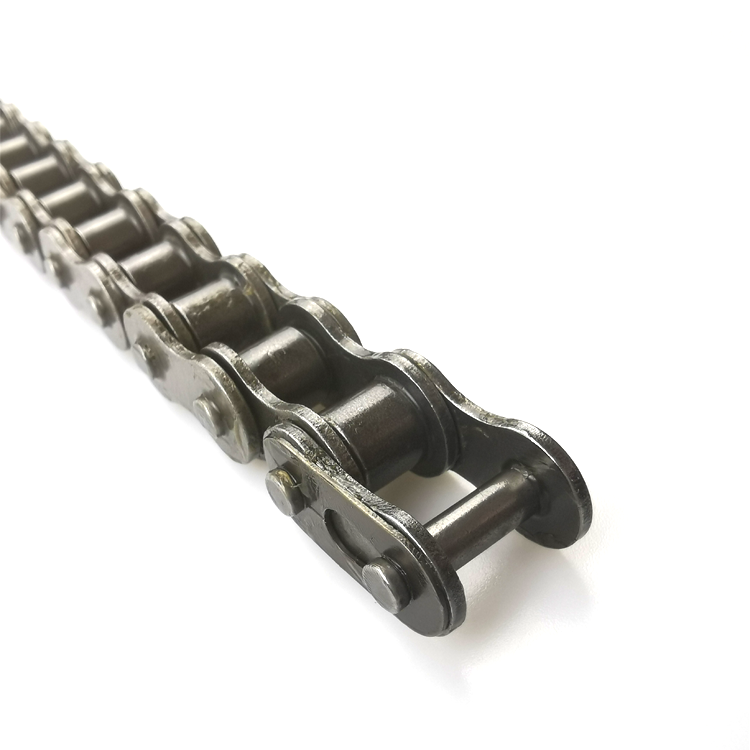

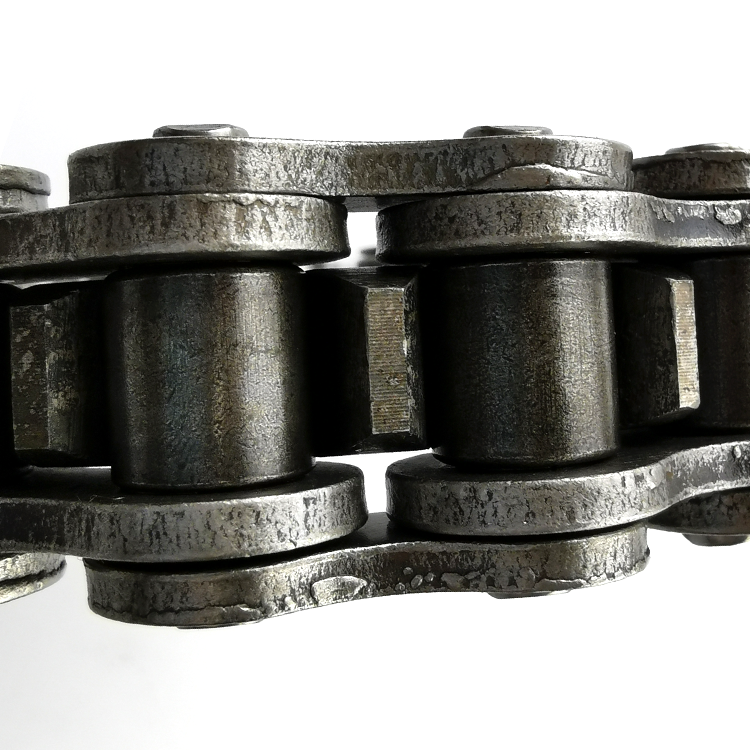

| Chain No. |
pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Width over bearing pins |
Width over connecting pins |
Inner plates depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Dynamic strength |
Mass per meter |
|
| GB ISO DIN |
ANSI | p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T | Fu min | Fua | Fd min | q≈ |
| mm | mm | mm | mm | mm | mm | mm | mm | Kn | kN | N | kg/m | ||
| *04C-1 | *25 | 6.35 | 3.30 | 3.10 | 2.31 | 9.1 | 11.6 | 6.02 | 0.76 | 3.5 | 4.4 | 630 | 0.15 |
| *06C-1 | *35 | 9.525 | 5.08 | 4.68 | 3.60 | 13.2 | 16.5 | 9.05 | 1.27 | 7.9 | 10.3 | 1410 | 0.33 |
| 08A-1 | 40 | 12.70 | 7.92 | 7.85 | 3.98 | 17.8 | 21.7 | 12.07 | 1.52 | 13.9 | 17.0 | 2480 | 0.60 |
| 085-1 | 41 | 12.70 | 7.77 | 6.25 | 3.60 | 14.0 | 16.0 | 9.91 | 1.30 | 6.7 | 12.0 | 1340 | 0.41 |
| 10A-1 | 50 | 15.875 | 10.16 | 9.40 | 5.09 | 21.8 | 25.9 | 15.09 | 2.03 | 21.8 | 28.0 | 3850 | 1.00 |
| 12A-1 | 60 | 19.05 | 11.91 | 12.57 | 5.96 | 26.9 | 31.5 | 18.10 | 2.39 | 31.3 | 40.0 | 5490 | 1.50 |
| 16A-1 | 80 | 25.40 | 15.88 | 15.75 | 7.94 | 33.5 | 38.9 | 24.13 | 3.18 | 55.6 | 66.0 | 9550 | 2.60 |
| 20A-1 | 100 | 31.75 | 19.05 | 18.90 | 9.54 | 41.1 | 47.2 | 30.17 | 3.96 | 87.0 | 104.0 | 14600 | 3.70 |
| 24A-1 | 120 | 38.10 | 22.23 | 25.22 | 11.11 | 50.8 | 57.4 | 36.20 | 4.75 | 125.0 | 148.0 | 20500 | 5.50 |
| 28A-1 | 140 | 44.45 | 25.40 | 25.22 | 12.71 | 54.9 | 62.3 | 42.23 | 5.56 | 170.0 | 201.0 | 27300 | 7.50 |
| 32A-1 | 160 | 50.80 | 28.58 | 31.55 | 14.29 | 65.5 | 73.4 | 48.26 | 6.35 | 223.0 | 265.0 | 34800 | 9.70 |
| 36A-1 | 180 | 57.15 | 35.71 | 35.48 | 17.46 | 73.9 | 83.0 | 54.30 | 7.14 | 281.0 | 325.0 | 44500 | 13.45 |
| 40A-1 | 200 | 63.50 | 39.68 | 37.85 | 19.85 | 80.3 | 90.5 | 60.33 | 7.92 | 347.0 | 410.0 | 53600 | 15.60 |
| 48A-1 | 240 | 76.20 | 47.63 | 47.35 | 23.81 | 95.5 | 106.0 | 72.39 | 9.52 | 500.0 | 591.0 | 73100 | 22.60 |
