Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

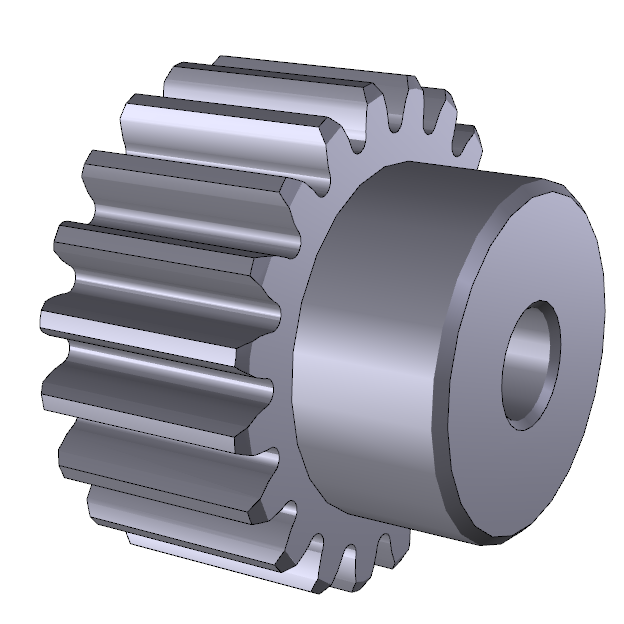

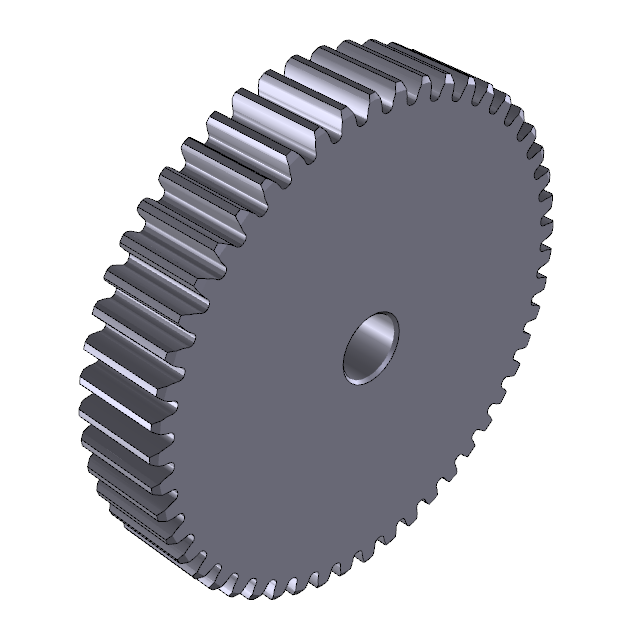

Standard Spur Gear Mod. 8
Tooth width A: 80 mm
Total width L: 110 mm
Pressure Angle 20°
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
|
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
| |
| dp |
de |
dm |
d |
|
dp |
de |
dm |
d |
| |
|
mm |
mm |
mm |
mm |
kg |
|
|
|
mm |
mm |
mm |
mm |
kg |
| M8-15 |
15 |
136.0 |
120.0 |
90 |
25 |
7.96 |
|
M8-25 |
25 |
216.0 |
200.0 |
150 |
30 |
22.85 |
| M8-18 |
18 |
160.0 |
144.0 |
100 |
25 |
11.34 |
|
M8-18 |
30 |
256.0 |
240.0 |
190 |
30 |
33.50 |
| M8-20 |
20 |
176.0 |
160.0 |
120 |
30 |
14.38 |
|
|
|
|
|
|
|
|
| M8-24 |
24 |
208.0 |
192.0 |
150 |
30 |
21.25 |
|
|
|
|
|
|
|
|
|
|
|
