Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

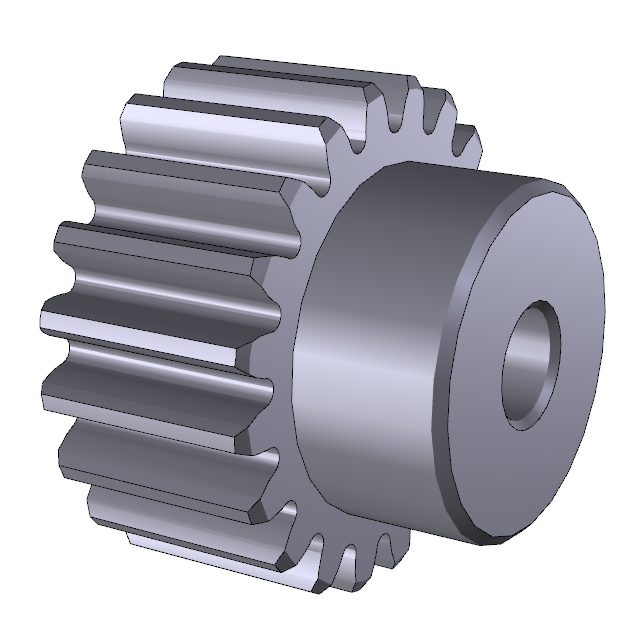

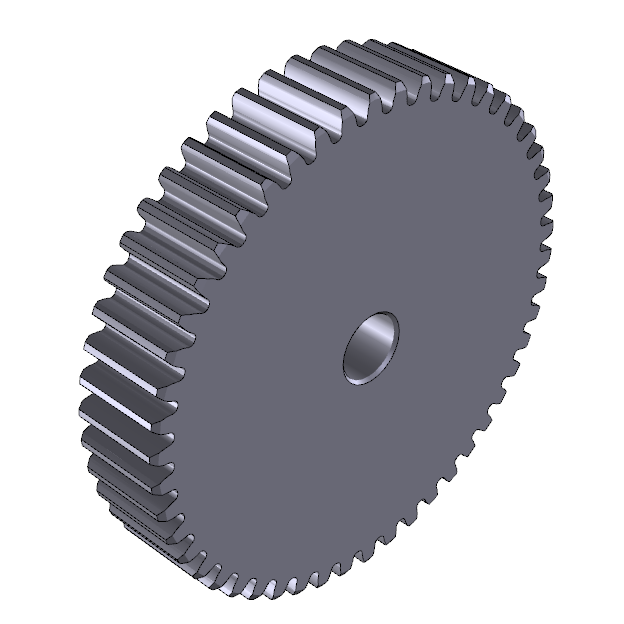

Standard Spur Gear Mod. 5
Tooth width A: 50 mm
Total width L: 75 mm
Pressure Angle 20°
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
|
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
| |
| dp |
de |
dm |
d |
|
dp |
de |
dm |
d |
| |
|
mm |
mm |
mm |
mm |
kg |
|
|
|
mm |
mm |
mm |
mm |
kg |
| M5-12 |
12 |
60.0 |
70.0 |
45 |
16 |
1.21 |
|
M5-35 |
35 |
175.0 |
185.0 |
- |
25 |
9.16 |
| M5-13 |
13 |
65.0 |
75.0 |
50 |
16 |
1.47 |
|
M5-38 |
38 |
190.0 |
200.0 |
- |
30 |
10.84 |
| M5-14 |
14 |
70.0 |
80.0 |
55 |
20 |
1.76 |
|
M5-40 |
40 |
200.0 |
210.0 |
- |
30 |
12.04 |
| M5-15 |
15 |
75.0 |
85.0 |
60 |
20 |
2.07 |
|
M5-45 |
45 |
225.0 |
235.0 |
- |
30 |
15.30 |
| M5-16 |
16 |
80.0 |
90.0 |
65 |
20 |
2.40 |
|
M5-48 |
48 |
240.0 |
250.0 |
- |
30 |
17.44 |
| M5-17 |
17 |
85.0 |
95.0 |
70 |
20 |
2.75 |
|
M5-50 |
50 |
250.0 |
260.0 |
- |
30 |
18.86 |
| M5-18 |
18 |
90.0 |
100.0 |
70 |
20 |
3.02 |
|
M5-52 |
52 |
260.0 |
270.0 |
- |
30 |
20.43 |
| M5-19 |
19 |
95.0 |
105.0 |
70 |
20 |
3.30 |
|
M5-55 |
55 |
275.0 |
285.0 |
- |
30 |
22.89 |
| M5-20 |
20 |
100.0 |
110.0 |
80 |
20 |
3.83 |
|
M5-57 |
57 |
285.0 |
295.0 |
- |
30 |
24.62 |
| M5-21 |
21 |
105.0 |
115.0 |
80 |
20 |
4.15 |
|
M5-60 |
60 |
300.0 |
310.0 |
- |
30 |
27.31 |
| M5-22 |
22 |
110.0 |
120.0 |
80 |
25 |
4.48 |
|
M5-65 |
65 |
325.0 |
335.0 |
- |
30 |
32.12 |
| M5-23 |
23 |
115.0 |
125.0 |
90 |
25 |
5.08 |
|
M5-70 |
70 |
350.0 |
360.0 |
- |
30 |
37.31 |
| M5-24 |
24 |
120.0 |
130.0 |
90 |
25 |
5.44 |
|
M5-75 |
75 |
375.0 |
385.0 |
- |
30 |
42.88 |
| M5-25 |
25 |
125.0 |
135.0 |
90 |
25 |
5.82 |
|
M5-76 |
76 |
380.0 |
390.0 |
- |
30 |
44.04 |
| M5-26 |
26 |
130.0 |
140.0 |
100 |
25 |
6.50 |
|
M5-80 |
80 |
400.0 |
410.0 |
- |
30 |
48.84 |
| M5-27 |
27 |
135.0 |
145.0 |
100 |
25 |
6.91 |
|
M5-85 |
85 |
425.0 |
435.0 |
- |
30 |
55.19 |
| M5-28 |
28 |
140.0 |
150.0 |
100 |
25 |
7.22 |
|
M5-90 |
90 |
450.0 |
460.0 |
- |
30 |
61.92 |
| M5-29 |
29 |
145.0 |
155.0 |
100 |
25 |
7.98 |
|
M5-95 |
95 |
475.0 |
485.0 |
- |
30 |
69.03 |
| M5-30 |
30 |
150.0 |
160.0 |
100 |
25 |
8.44 |
|
M5-100 |
100 |
500.0 |
510.0 |
- |
30 |
76.53 |
| M5-32 |
32 |
160.0 |
170.0 |
- |
25 |
7.62 |
|
M5-110 |
110 |
550.0 |
560.0 |
- |
30 |
92.69 |
| |
|
|
|
|
|
|
|
M5-114 |
114 |
570.0 |
580.0 |
- |
30 |
99.59 |
|
|
