Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

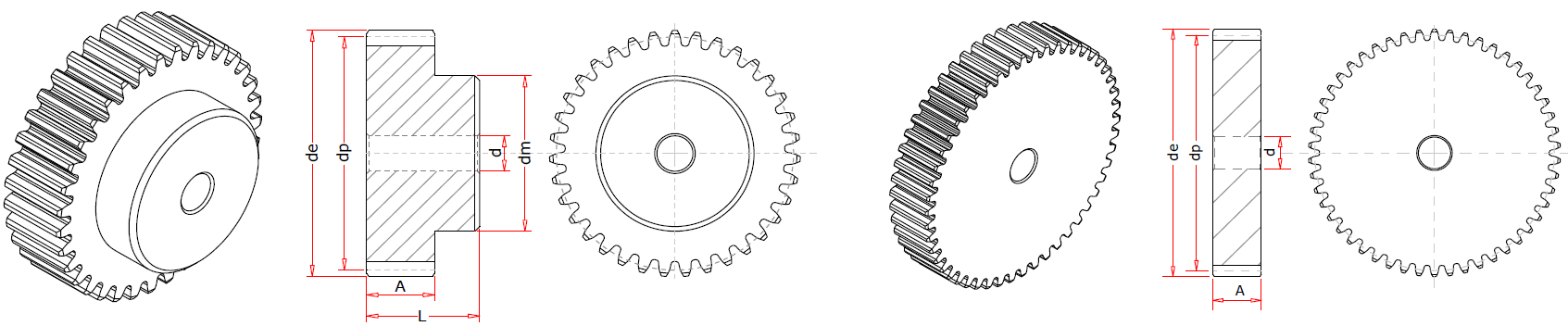

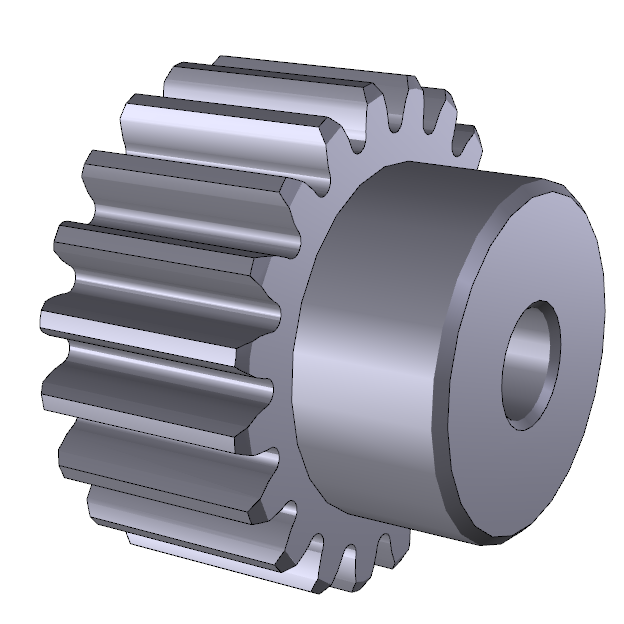

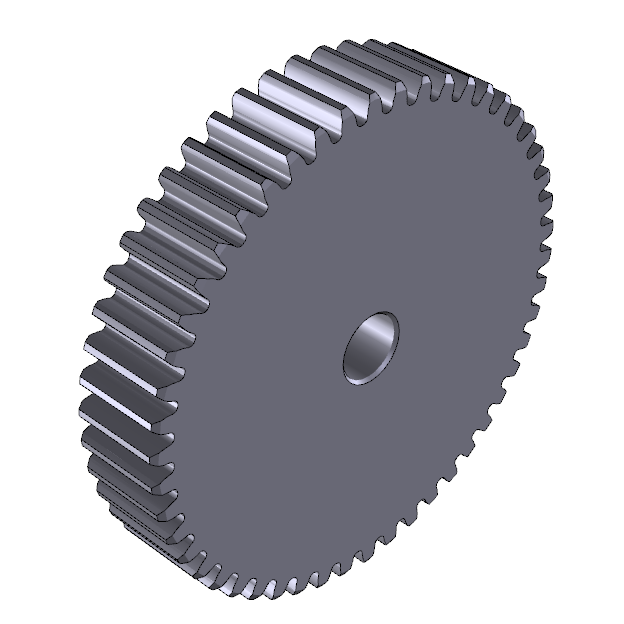

Standard Spur Gear Mod. 4
Tooth width A: 40 mm
Total width L: 60 mm
Pressure Angle 20°
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
|
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
| |
| dp |
de |
dm |
d |
|
dp |
de |
dm |
d |
| |
|
mm |
mm |
mm |
mm |
kg |
|
|
|
mm |
mm |
mm |
mm |
kg |
| M4-12 |
12 |
48.0 |
56.0 |
35 |
14 |
0.63 |
|
M4-34 |
34 |
136.0 |
144.0 |
80 |
20 |
5.16 |
| M4-13 |
13 |
52.0 |
60.0 |
40 |
14 |
0.78 |
|
M4-35 |
35 |
140.0 |
148.0 |
80 |
20 |
5.43 |
| M4-14 |
14 |
56.0 |
64.0 |
45 |
14 |
0.93 |
|
M4-36 |
36 |
144.0 |
152.0 |
80 |
20 |
5.63 |
| M4-15 |
15 |
60.0 |
68.0 |
45 |
14 |
1.05 |
|
M4-38 |
38 |
152.0 |
160.0 |
- |
25 |
5.20 |
| M4-16 |
16 |
64.0 |
72.0 |
50 |
15 |
1.20 |
|
M4-40 |
40 |
160.0 |
168.0 |
- |
25 |
6.11 |
| M4-17 |
17 |
68.0 |
76.0 |
50 |
15 |
1.33 |
|
M4-45 |
45 |
180.0 |
188.0 |
- |
25 |
7.78 |
| M4-18 |
18 |
72.0 |
80.0 |
50 |
15 |
1.47 |
|
M4-48 |
48 |
192.0 |
200.0 |
- |
25 |
8.87 |
| M4-19 |
19 |
76.0 |
84.0 |
60 |
15 |
1.75 |
|
M4-50 |
50 |
200.0 |
208.0 |
- |
25 |
9.65 |
| M4-20 |
20 |
80.0 |
88.0 |
60 |
15 |
1.90 |
|
M4-52 |
52 |
208.0 |
216.0 |
- |
25 |
10.45 |
| M4-21 |
21 |
84.0 |
92.0 |
70 |
20 |
2.22 |
|
M4-55 |
55 |
220.0 |
228.0 |
- |
25 |
11.71 |
| M4-22 |
22 |
88.0 |
96.0 |
70 |
20 |
2.39 |
|
M4-57 |
57 |
228.0 |
236.0 |
- |
25 |
12.59 |
| M4-23 |
23 |
92.0 |
100.0 |
75 |
20 |
2.60 |
|
M4-60 |
60 |
240.0 |
248.0 |
- |
25 |
13.97 |
| M4-24 |
24 |
96.0 |
104.0 |
75 |
20 |
2.79 |
|
M4-65 |
65 |
260.0 |
268.0 |
- |
25 |
16.43 |
| M4-25 |
25 |
100.0 |
108.0 |
75 |
20 |
2.98 |
|
M4-70 |
70 |
280.0 |
288.0 |
- |
25 |
19.09 |
| M4-26 |
26 |
104.0 |
112.0 |
75 |
20 |
3.18 |
|
M4-75 |
75 |
300.0 |
308.0 |
- |
25 |
21.94 |
| M4-27 |
27 |
108.0 |
116.0 |
75 |
20 |
3.39 |
|
M4-76 |
76 |
304.0 |
312.0 |
- |
25 |
22.47 |
| M4-28 |
28 |
112.0 |
120.0 |
75 |
20 |
3.60 |
|
M4-80 |
80 |
320.0 |
328.0 |
- |
25 |
24.93 |
| M4-29 |
29 |
116.0 |
124.0 |
75 |
20 |
3.83 |
|
M4-85 |
85 |
340.0 |
348.0 |
- |
25 |
28.18 |
| M4-30 |
30 |
120.0 |
128.0 |
75 |
20 |
4.06 |
|
M4-90 |
90 |
360.0 |
368.0 |
- |
25 |
31.62 |
| M4-31 |
31 |
124.0 |
132.0 |
80 |
20 |
4.39 |
|
M4-95 |
95 |
380.0 |
388.0 |
- |
25 |
35.26 |
| M4-32 |
32 |
128.0 |
136.0 |
80 |
20 |
4.64 |
|
M4-100 |
100 |
400.0 |
408.0 |
- |
25 |
39.11 |
| M4-33 |
33 |
132.0 |
140.0 |
80 |
20 |
4.90 |
|
M4-110 |
110 |
440.0 |
448.0 |
- |
25 |
47.38 |
| |
|
|
|
|
|
|
|
M4-114 |
114 |
456.0 |
464.0 |
- |
25 |
50.91 |
|
|
