Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

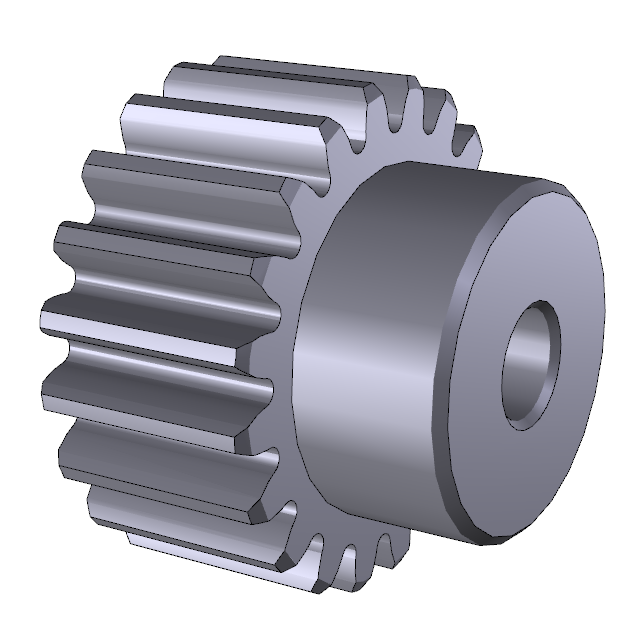

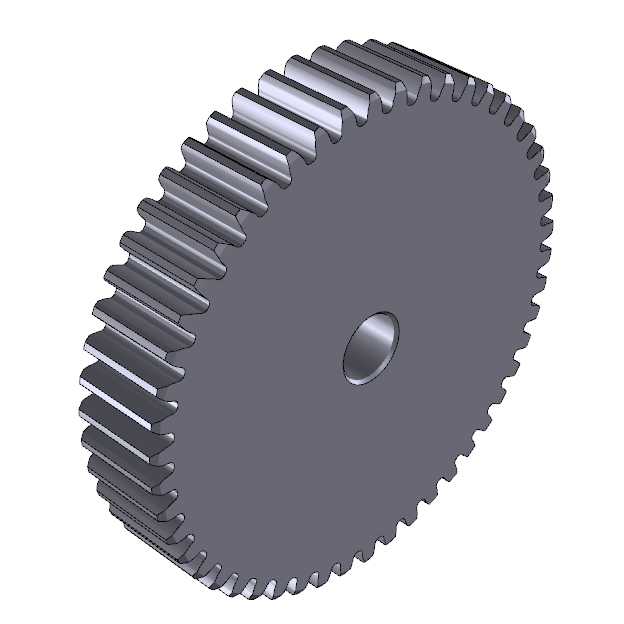

Standard Spur Gear Mod. 3
Tooth width A: 30 mm
Total width L: 50 mm
Pressure Angle 20°
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
|
Catalog
No. |
Z |
Pitch
Dia |
Outside
Dia |
Hub
Dia |
Bore |
kg/pc |
| |
| dp |
de |
dm |
d |
|
dp |
de |
dm |
d |
| |
|
mm |
mm |
mm |
mm |
kg |
|
|
|
mm |
mm |
mm |
mm |
kg |
| M3-12 |
12 |
36.0 |
42.0 |
25 |
12 |
0.28 |
|
M3-40 |
40 |
120.0 |
126.0 |
80 |
20 |
3.31 |
| M3-13 |
13 |
39.0 |
45.0 |
25 |
12 |
0.34 |
|
M3-41 |
41 |
123.0 |
129.0 |
90 |
20 |
3.44 |
| M3-14 |
14 |
42.0 |
48.0 |
30 |
12 |
0.41 |
|
M3-42 |
42 |
126.0 |
132.0 |
90 |
20 |
3.58 |
| M3-15 |
15 |
45.0 |
51.0 |
35 |
12 |
0.47 |
|
M3-43 |
43 |
129.0 |
135.0 |
90 |
20 |
3.72 |
| M3-16 |
16 |
48.0 |
54.0 |
38 |
15 |
0.54 |
|
M3-44 |
44 |
132.0 |
138.0 |
90 |
20 |
4.07 |
| M3-17 |
17 |
51.0 |
57.0 |
42 |
15 |
0.63 |
|
M3-45 |
45 |
135.0 |
141.0 |
90 |
20 |
4.22 |
| M3-18 |
18 |
54.0 |
60.0 |
45 |
15 |
0.72 |
|
M3-46 |
46 |
138.0 |
144.0 |
90 |
20 |
4.37 |
| M3-19 |
19 |
57.0 |
63.0 |
45 |
15 |
0.78 |
|
M3-47 |
47 |
141.0 |
147.0 |
90 |
20 |
4.76 |
| M3-20 |
20 |
60.0 |
66.0 |
45 |
15 |
0.84 |
|
M3-48 |
48 |
144.0 |
150.0 |
100 |
20 |
4.92 |
| M3-21 |
21 |
63.0 |
69.0 |
45 |
15 |
0.89 |
|
M3-50 |
50 |
150.0 |
156.0 |
- |
25 |
4.06 |
| M3-22 |
22 |
66.0 |
72.0 |
50 |
15 |
1.02 |
|
M3-52 |
52 |
156.0 |
162.0 |
- |
25 |
4.40 |
| M3-23 |
23 |
69.0 |
75.0 |
50 |
15 |
1.10 |
|
M3-55 |
55 |
165.0 |
171.0 |
- |
25 |
4.93 |
| M3-24 |
24 |
72.0 |
78.0 |
50 |
16 |
1.18 |
|
M3-57 |
57 |
171.0 |
177.0 |
- |
25 |
5.30 |
| M3-25 |
25 |
75.0 |
81.0 |
60 |
16 |
1.39 |
|
M3-60 |
60 |
180.0 |
186.0 |
- |
25 |
5.89 |
| M3-26 |
26 |
78.0 |
84.0 |
60 |
16 |
1.48 |
|
M3-65 |
65 |
195.0 |
201.0 |
- |
25 |
6.92 |
| M3-27 |
27 |
81.0 |
87.0 |
60 |
16 |
1.56 |
|
M3-70 |
70 |
210.0 |
216.0 |
- |
25 |
8.00 |
| M3-28 |
28 |
84.0 |
90.0 |
60 |
16 |
1.66 |
|
M3-72 |
72 |
216.0 |
222.0 |
- |
25 |
8.47 |
| M3-29 |
29 |
87.0 |
93.0 |
60 |
16 |
1.75 |
|
M3-75 |
75 |
225.0 |
231.0 |
- |
25 |
9.21 |
| M3-30 |
30 |
90.0 |
96.0 |
60 |
16 |
1.85 |
|
M3-76 |
76 |
228.0 |
234.0 |
- |
25 |
9.46 |
| M3-31 |
31 |
93.0 |
99.0 |
70 |
20 |
1.95 |
|
M3-80 |
80 |
240.0 |
246.0 |
- |
25 |
10.49 |
| M3-32 |
32 |
96.0 |
102.0 |
70 |
20 |
2.21 |
|
M3-85 |
85 |
255.0 |
261.0 |
- |
25 |
11.86 |
| M3-33 |
33 |
99.0 |
105.0 |
70 |
20 |
2.32 |
|
M3-90 |
90 |
270.0 |
276.0 |
- |
25 |
13.32 |
| M3-34 |
34 |
102.0 |
108.0 |
70 |
20 |
2.43 |
|
M3-95 |
95 |
285.0 |
291.0 |
- |
25 |
14.86 |
| M3-35 |
35 |
105.0 |
111.0 |
70 |
20 |
2.55 |
|
M3-100 |
100 |
300.0 |
306.0 |
- |
25 |
16.48 |
| M3-36 |
36 |
108.0 |
114.0 |
70 |
20 |
2.62 |
|
M3-110 |
110 |
330.0 |
336.0 |
- |
25 |
19.97 |
| M3-37 |
37 |
111.0 |
117.0 |
80 |
20 |
2.74 |
|
M3-114 |
114 |
342.0 |
348.0 |
- |
30 |
21.40 |
| M3-38 |
38 |
114.0 |
120.0 |
80 |
20 |
3.05 |
|
M3-120 |
120 |
360.0 |
366.0 |
- |
30 |
23.74 |
| M3-39 |
39 |
117.0 |
123.0 |
80 |
20 |
3.18 |
|
M3-127 |
127 |
381.0 |
387.0 |
- |
30 |
26.61 |
|
|
