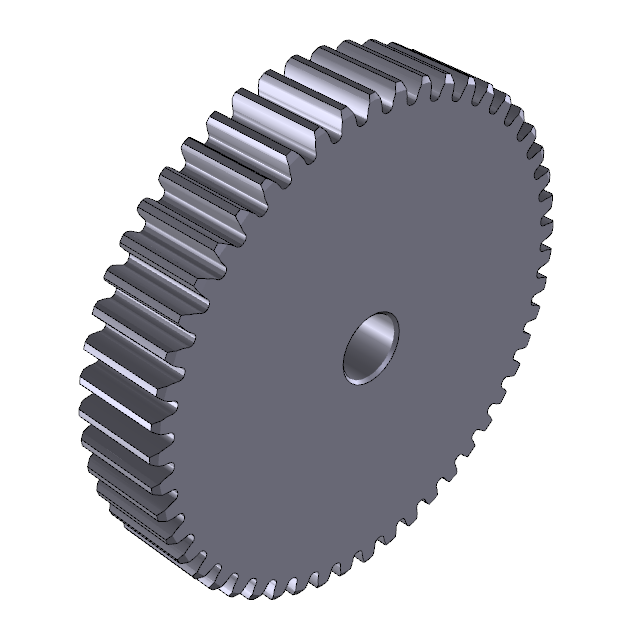

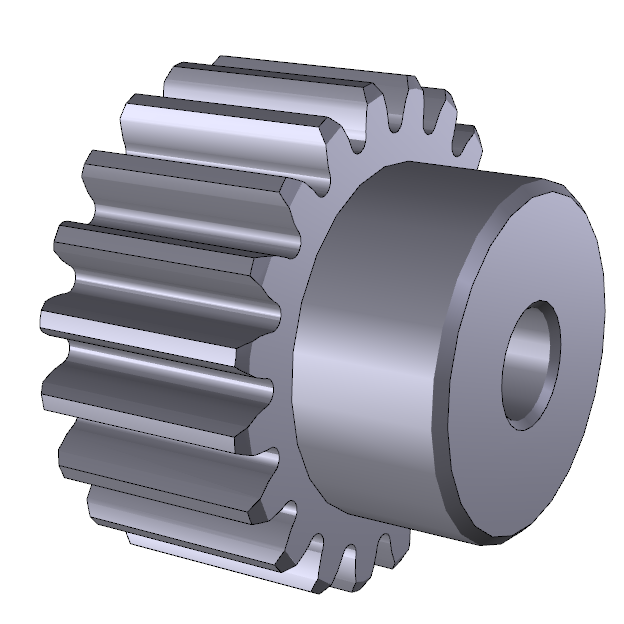

Standard Spur Gear Mod. 2.5

Description

Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

Standard Spur Gear Mod. 2.5
Tooth width A: 25 mm
Total width L: 40 mm
Pressure Angle 20°

Catalog No.	Z	Pitch Dia	Outside Dia	Hub Dia	Bore	kg/pc	Catalog No.	Z	Pitch Dia	Outside Dia	Hub Dia	Bore	kg/pc
		Pitch Dia	Outside Dia	Hub Dia	Bore				Pitch Dia	Outside Dia	Hub Dia	Bore
		dp	de	dm	d				dp	de	dm	d
		mm	mm	mm	mm	kg			mm	mm	mm	mm	kg
M2.5-12	12	30.0	35.0	22	10	0.15	M2.5-44	44	110.0	115.0	70	20	2.23
M2.5-13	13	32.5	37.5	25	10	0.19	M2.5-45	45	112.5	117.5	70	20	2.25
M2.5-14	14	35.0	40.0	28	10	0.23	M2.5-46	46	115.0	120.0	70	20	2.36
M2.5-15	15	37.5	42.5	30	10	0.30	M2.5-47	47	117.5	122.5	80	20	2.53
M2.5-16	16	40.0	45.0	32	12	0.30	M2.5-48	48	120.0	125.0	80	20	2.69
M2.5-17	17	42.5	47.5	35	12	0.34	M2.5-49	49	122.5	127.5	80	20	2.77
M2.5-18	18	45.0	50.0	35	12	0.38	M2.5-50	50	125.0	130.0	80	20	2.86
M2.5-19	19	47.5	52.5	35	12	0.40	M2.5-51	51	127.5	132.5	90	20	3.20
M2.5-20	20	50.0	55.0	40	14	0.48	M2.5-52	52	130.0	135.0	90	20	3.23
M2.5-21	21	52.5	57.5	40	14	0.52	M2.5-53	53	132.5	137.5	90	20	3.33
M2.5-22	22	55.0	60.0	45	14	0.59	M2.5-54	54	135.0	140.0	90	20	3.41
M2.5-23	23	57.5	62.5	45	14	0.64	M2.5-55	55	137.5	142.5	90	20	3.52
M2.5-24	24	60.0	65.0	45	14	0.68	M2.5-56	56	140.0	145.0	100	20	3.82
M2.5-25	25	62.5	67.5	50	14	0.75	M2.5-57	57	142.5	147.5	100	20	3.94
M2.5-26	26	65.0	70.0	50	14	0.82	M2.5-58	58	145.0	150.0	100	20	4.04
M2.5-27	27	67.5	72.5	50	14	0.87	M2.5-59	59	147.5	152.5	100	20	4.13
M2.5-28	28	70.0	75.0	50	14	0.91	M2.5-60	60	150.0	155.0	100	20	4.25
M2.5-29	29	72.5	77.5	50	14	1.00	M2.5-65	65	162.5	167.5	-	20	4.01
M2.5-30	30	75.0	80.0	55	16	1.07	M2.5-70	70	175.0	180.0	-	20	4.60
M2.5-31	31	77.5	82.5	55	16	1.14	M2.5-72	72	180.0	185.0	-	20	4.90
M2.5-32	32	80.0	85.0	55	16	1.20	M2.5-75	75	187.5	192.5	-	20	5.40
M2.5-33	33	82.5	87.5	55	16	1.20	M2.5-76	76	190.0	195.0	-	20	5.50
M2.5-34	34	85.0	90.0	55	16	1.32	M2.5-80	80	200.0	205.0	-	25	6.10
M2.5-35	35	87.5	92.5	60	16	1.42	M2.5-85	85	212.5	217.5	-	25	6.77
M2.5-36	36	90.0	95.0	60	16	1.47	M2.5-90	90	225.0	230.0	-	25	7.45
M2.5-37	37	92.5	97.5	60	16	1.57	M2.5-95	95	237.5	242.5	-	25	8.60
M2.5-38	38	95.0	100.0	60	16	1.65	M2.5-100	100	250.0	255.0	-	25	9.43
M2.5-39	39	97.5	102.5	60	16	1.72	M2.5-110	110	275.0	280.0	-	25	11.37
M2.5-40	40	100.0	105.0	70	20	1.92	M2.5-114	114	285.0	290.0	-	25	12.14
M2.5-41	41	102.5	107.5	70	20	2.00	M2.5-120	120	300.0	305.0	-	25	13.54
M2.5-42	42	105.0	110.0	70	20	2.08	M2.5-127	127	317.5	322.5	-	25	15.50
M2.5-43	43	107.5	112.5	70	20	2.16
