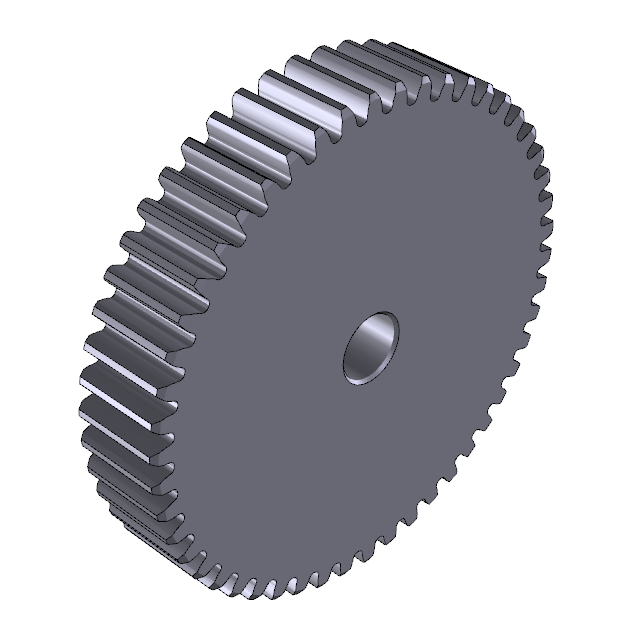

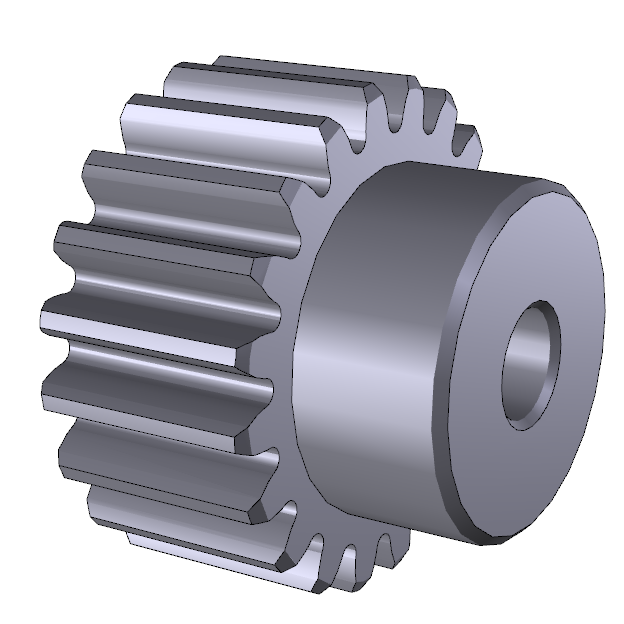

Standard Spur Gear Mod. 2

Description

Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

Standard Spur Gear Mod. 2
Tooth width A: 20 mm
Total width L: 35 mm
Pressure Angle 20°

Catalog No.	Z	Pitch Dia	Outside Dia	Hub Dia	Bore	kg/pc	Catalog No.	Z	Pitch Dia	Outside Dia	Hub Dia	Bore	kg/pc
		Pitch Dia	Outside Dia	Hub Dia	Bore				Pitch Dia	Outside Dia	Hub Dia	Bore
		dp	de	dm	d				dp	de	dm	d
		mm	mm	mm	mm	kg			mm	mm	mm	mm	kg
M2-12	12	24.0	28.0	18	10	0.08	M2-47	47	94.0	98.0	60	16	1.48
M2-13	13	26.0	30.0	19	10	0.10	M2-48	48	96.0	100.0	70	16	1.53
M2-14	14	28.0	32.0	20	10	0.12	M2-49	49	98.0	102.0	70	16	1.57
M2-15	15	30.0	34.0	22	10	0.14	M2-50	50	100.0	104.0	70	16	1.62
M2-16	16	32.0	36.0	24	10	0.16	M2-51	51	102.0	106.0	70	20	1.67
M2-17	17	34.0	38.0	25	10	0.18	M2-52	52	104.0	108.0	70	20	1.72
M2-18	18	36.0	40.0	25	10	0.19	M2-53	53	106.0	110.0	70	20	1.78
M2-19	19	38.0	42.0	25	10	0.21	M2-54	54	108.0	112.0	70	20	1.83
M2-20	20	40.0	44.0	30	10	0.26	M2-55	55	110.0	114.0	70	20	1.88
M2-21	21	42.0	46.0	30	12	0.27	M2-56	56	112.0	116.0	70	20	1.94
M2-22	22	44.0	48.0	30	12	0.29	M2-57	57	114.0	118.0	70	20	1.99
M2-23	23	46.0	50.0	30	12	0.31	M2-58	58	116.0	120.0	70	20	2.05
M2-24	24	48.0	52.0	35	12	0.36	M2-59	59	118.0	122.0	70	20	2.11
M2-25	25	50.0	54.0	35	12	0.39	M2-60	60	120.0	124.0	70	20	2.16
M2-26	26	52.0	56.0	40	12	0.45	M2-61	61	122.0	126.0	80	20	2.36
M2-27	27	54.0	58.0	40	12	0.47	M2-62	62	124.0	128.0	80	20	2.42
M2-28	28	56.0	60.0	40	12	0.50	M2-63	63	126.0	130.0	80	20	2.48
M2-29	29	58.0	62.0	40	14	0.52	M2-64	64	128.0	132.0	80	20	2.55
M2-30	30	60.0	64.0	40	14	0.55	M2-65	65	130.0	134.0	80	20	2.61
M2-31	31	62.0	66.0	45	14	0.61	M2-66	66	132.0	136.0	80	20	2.67
M2-32	32	64.0	68.0	45	14	0.65	M2-67	67	134.0	138.0	80	20	2.74
M2-33	33	66.0	70.0	45	14	0.68	M2-68	68	136.0	140.0	80	20	2.81
M2-34	34	68.0	72.0	45	14	0.71	M2-69	69	138.0	142.0	80	20	2.87
M2-35	35	70.0	74.0	45	14	0.74	M2-70	70	140.0	144.0	-	20	2.94
M2-36	36	72.0	76.0	45	14	0.78	M2-72	72	144.0	148.0	-	20	2.50
M2-37	37	74.0	78.0	50	14	0.86	M2-75	75	150.0	154.0	-	20	2.71
M2-38	38	76.0	80.0	50	14	0.90	M2-76	76	152.0	156.0	-	20	2.79
M2-39	39	78.0	82.0	50	14	0.93	M2-80	80	160.0	164.0	-	20	3.09
M2-40	40	80.0	84.0	50	14	0.97	M2-85	85	170.0	174.0	-	20	3.50
M2-41	41	82.0	86.0	60	16	1.05	M2-90	90	180.0	184.0	-	20	3.93
M2-42	42	84.0	88.0	60	16	1.09	M2-95	95	190.0	194.0	-	20	4.39
M2-43	43	86.0	90.0	60	16	1.13	M2-100	100	200.0	204.0	-	20	4.87
M2-44	44	88.0	92.0	60	16	1.23	M2-110	110	220.0	224.0	-	20	5.90
M2-45	45	90.0	94.0	60	16	1.27	M2-114	114	228.0	232.0	-	20	6.34
M2-46	46	92.0	96.0	60	16	1.31	M2-120	120	240.0	244.0	-	20	7.03
							M2-127	127	254.0	258.0	-	20	7.89
