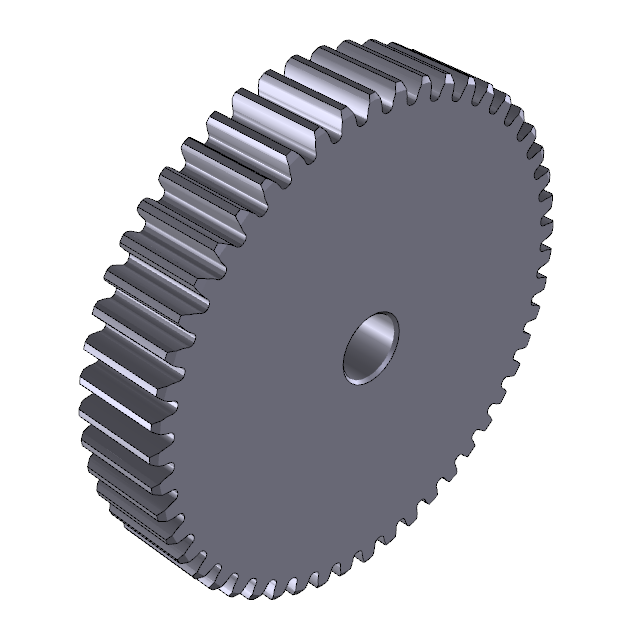

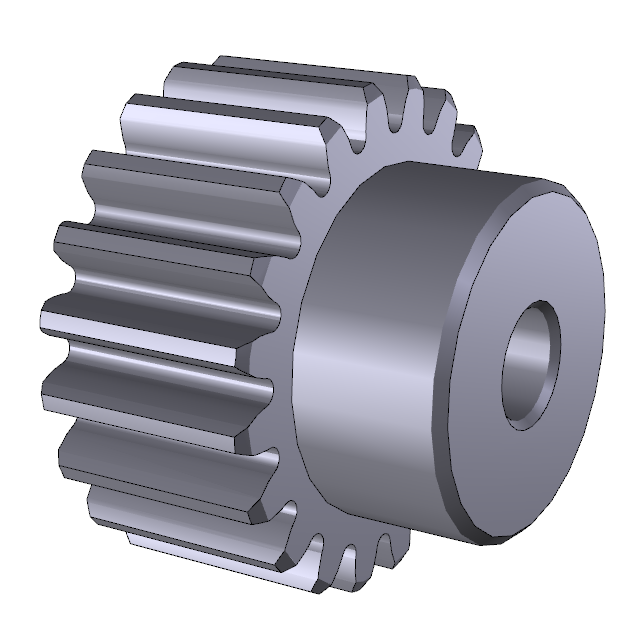

Standard Spur Gear Mod. 1.5

Description

Pignoni a modulo con denti Temprati ad Induzione (45 ÷ 55 HRC)-Angolo di pressione 20° | Materiale C45E | UNI EN 10083-1
Spur gears with Hardened Teeth(45 ÷ 55 HRC)-Pressure angle 20° | Material C45E | UNI EN 10083-1
Gehärtete Stirnzahnräder (45 ÷ 55 HRC)-Eingriffswinkel 20° | Werkstoff C45E | UNI EN 10083-1
Roues cylindriques et denture Traitée par Induction (45 ÷ 55 HRC)-Angle de pression 20° | Matière C45E| UNI EN 10083-1
Ruedas dentadas cillndricas dientes Templados por Induccion (45 ÷ 55 HRC)-Angulo de presion 20° | Material C45E | UNI EN 10083-1

Standard Spur Gear Mod. 1.5
Tooth width A: 17 mm
Total width L: 30 mm
Pressure Angle 20°

Catalog No.	Z	Pitch Dia	Outside Dia	Hub Dia	Bore	kg/pc	Catalog No.	Z	Pitch Dia	Outside Dia	Hub Dia	Bore	kg/pc
		Pitch Dia	Outside Dia	Hub Dia	Bore				Pitch Dia	Outside Dia	Hub Dia	Bore
		dp	de	dm	d				dp	de	dm	d
		mm	mm	mm	mm	kg			mm	mm	mm	mm	kg
M1.5-12	12	18.0	21.0	14	8	0.04	M1.5-47	47	70.5	73.5	50	14	0.70
M1.5-13	13	19.5	22.5	14	8	0.05	M1.5-48	48	72.0	75.0	50	14	0.70
M1.5-14	14	21.0	24.0	17	8	0.06	M1.5-49	49	73.5	76.5	50	14	0.73
M1.5-15	15	22.5	25.5	18	8	0.07	M1.5-50	50	75.0	78.0	50	14	0.76
M1.5-16	16	24.0	27.0	20	8	0.08	M1.5-51	51	76.5	79.5	60	15	0.86
M1.5-17	17	25.5	28.5	20	8	0.09	M1.5-52	52	78.0	81.0	60	15	0.89
M1.5-18	18	27.0	30.0	20	8	0.10	M1.5-53	53	79.5	82.5	60	15	0.91
M1.5-19	19	28.5	31.5	20	8	0.10	M1.5-54	54	81.0	84.0	60	15	0.94
M1.5-20	20	30.0	33.0	25	8	0.13	M1.5-55	55	82.5	85.5	60	15	0.96
M1.5-21	21	31.5	34.5	25	10	0.13	M1.5-56	56	84.0	87.0	60	15	0.98
M1.5-22	22	33.0	36.0	25	10	0.14	M1.5-57	57	85.5	88.5	60	15	1.00
M1.5-23	23	34.5	37.5	25	10	0.16	M1.5-58	58	87.0	90.0	60	15	1.03
M1.5-24	24	36.0	39.0	25	10	0.17	M1.5-59	59	88.5	91.5	60	15	1.06
M1.5-25	25	37.5	40.5	25	10	0.18	M1.5-60	60	90.0	93.0	60	15	1.09
M1.5-26	26	39.0	42.0	30	12	0.20	M1.5-61	61	91.5	94.5	70	20	1.22
M1.5-27	27	40.5	43.5	30	12	0.22	M1.5-62	62	93.0	96.0	70	20	1.25
M1.5-28	28	42.0	45.0	30	12	0.23	M1.5-63	63	94.5	97.5	70	20	1.28
M1.5-29	29	43.5	46.5	30	12	0.24	M1.5-64	64	96.0	99.0	70	20	1.31
M1.5-30	30	45.0	48.0	30	12	0.26	M1.5-65	65	97.5	100.5	70	20	1.34
M1.5-31	31	46.5	49.5	35	12	0.30	M1.5-66	66	99.0	102.0	70	20	1.37
M1.5-32	32	48.0	51.0	35	12	0.31	M1.5-67	67	100.5	103.5	70	20	1.40
M1.5-33	33	49.5	52.5	35	12	0.33	M1.5-68	68	102.0	105.0	70	20	1.43
M1.5-34	34	51.0	54.0	35	12	0.34	M1.5-69	69	103.5	106.5	70	20	1.46
M1.5-35	35	52.5	55.5	35	12	0.36	M1.5-70	70	105.0	108.0	70	20	1.50
M1.5-36	36	54.0	57.0	35	12	0.37	M1.5-72	72	108.0	111.0	-	20	1.19
M1.5-37	37	55.5	58.5	40	12	0.42	M1.5-75	75	112.5	115.5	-	20	1.30
M1.5-38	38	57.0	60.0	40	12	0.44	M1.5-76	76	114.0	117.0	-	20	1.33
M1.5-39	39	58.5	61.5	40	12	0.46	M1.5-80	80	120.0	123.0	-	20	1.48
M1.5-40	40	60.0	63.0	40	12	0.48	M1.5-85	85	127.5	130.5	-	20	1.67
M1.5-41	41	61.5	64.5	50	14	0.50	M1.5-90	90	135.0	138.0	-	20	1.88
M1.5-42	42	63.0	66.0	50	14	0.59	M1.5-95	95	142.5	145.5	-	20	2.09
M1.5-43	43	64.5	67.5	50	14	0.61	M1.5-100	100	150.0	153.0	-	20	2.32
M1.5-44	44	66.0	69.0	50	14	0.63	M1.5-110	110	165.0	168.0	-	20	2.82
M1.5-45	45	67.5	70.5	50	14	0.65	M1.5-114	114	171.0	174.0	-	20	3.03
M1.5-46	46	69.0	72.0	50	14	0.66	M1.5-120	120	180.0	183.0	-	20	3.36
							M1.5-127	127	190.5	193.5	-	20	3.77
