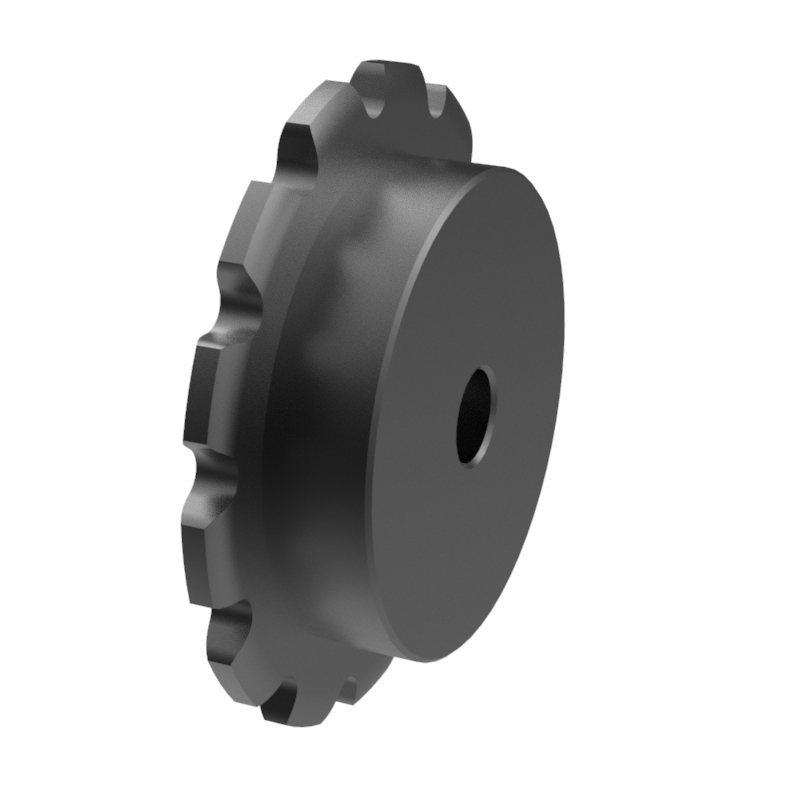

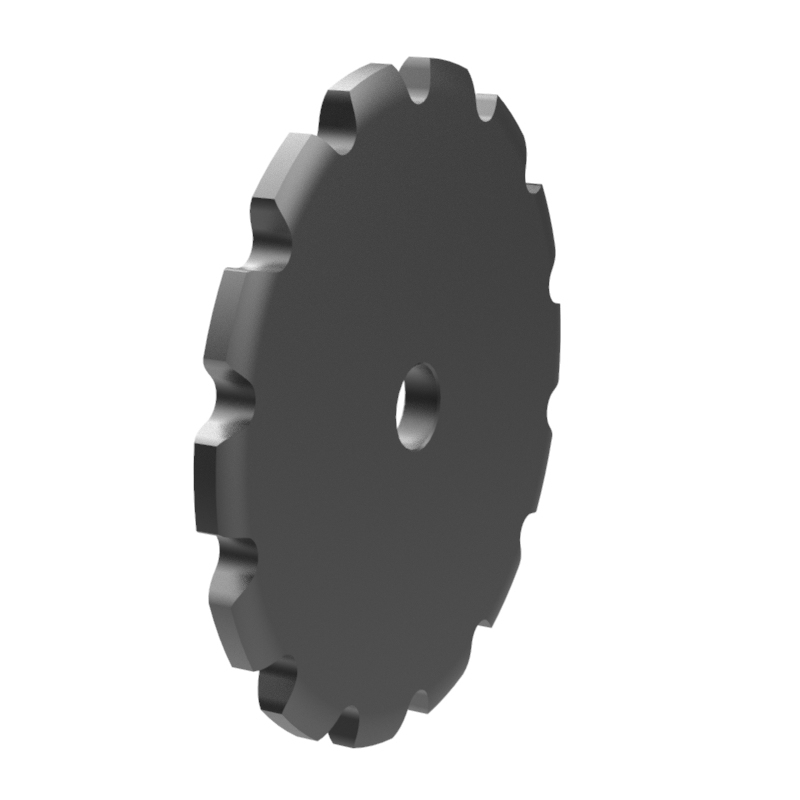

Standard Double Pitch Sprocket for S Rollers B-type

Description

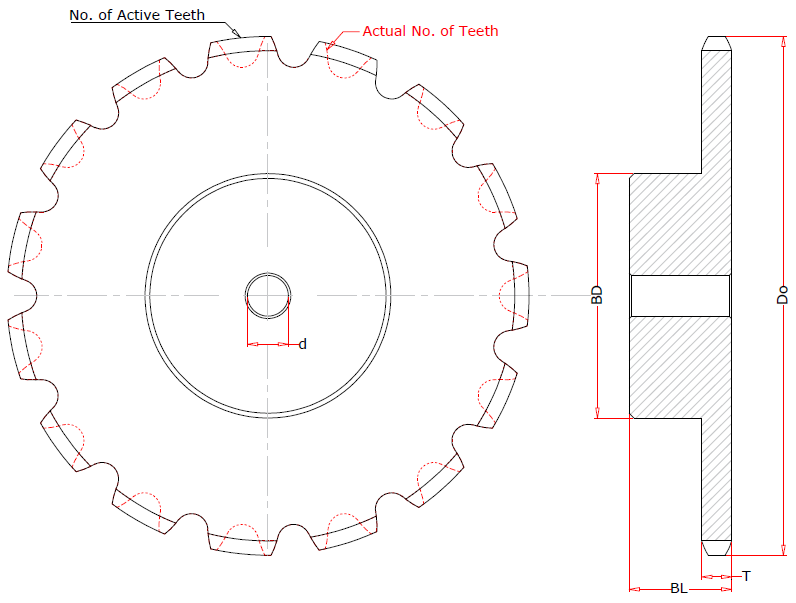

TYPE	No. of Active Teeth	Actual No. of Teeth	Outer Diameter Do	Pitch Diameter Dp	d	BD	BL	Weight kg
2040B Chain: No.C2040 Chain Pitch: 25.4 mm Width between inner plates: 7.85 mm Roller Diameter: 7.95 mm Tooth Width: (T) 7.2 mm	6 1/2	13	59	54.66	12	35	22	0.20
	7 1/2	15	67	62.45	12	43	22	0.30
	8 1/2	17	76	70.31	13	52	22	0.42
	9 1/2	19	84	78.23	14	60	25	0.61
	10 1/2	21	92	86.17	14	69	25	0.82
	11 1/2	23	100	94.15	14	77	25	0.98
	12	24	104	98.14	14	63	25	0.84
	12 1/2	25	108	102.14	14	63	25	0.88
2050B Chain: No.C2050 Chain Pitch: 31.75 mm Width between inner plates: 9.40 mm Roller Diameter: 10.16 mm Tooth Width: (T) 8.7 mm	6 1/2	13	74	68.32	12	44	25	0.38
	7 1/2	15	84	78.06	12	54	25	0.55
	8 1/2	17	94	87.89	14	65	25	0.76
	9 1/2	19	105	97.78	14	73	28	1.06
	10 1/2	21	115	107.72	14	73	28	1.16
	11 1/2	23	125	117.68	16	73	28	1.27
	12	24	130	122.67	16	73	28	1.40
	12 1/2	25	135	127.67	16	73	28	1.46
2060B Chain: No.C2060 Chain Pitch: 38.10 mm Width between inner plates: 12.57 mm Roller Diameter: 11.91 mm Tooth Width: (T) 11.7 mm	6 1/2	13	88	81.98	14	53	32	0.73
	7 1/2	15	101	93.67	16	66	32	1.05
	8 1/2	17	113	105.47	16	73	32	1.33
	9 1/2	19	126	117.34	16	83	40	2.03
	10 1/2	21	138	129.26	16	83	40	2.23
	11 1/2	23	150	141.22	16	83	45	2.56
	12	24	156	147.21	18	83	45	2.90
	12 1/2	25	162	153.20	18	83	45	2.81
2080B Chain: No.C2080 Chain Pitch: 50.80 mm Width between inner plates: 15.75 mm Roller Diameter: 15.88 mm Tooth Width: (T) 14.6 mm	6 1/2	13	118	109.31	16	70	40	1.62
	7 1/2	15	135	124.90	20	88	40	2.34
	8 1/2	17	151	140.63	20	93	40	2.48
	9 1/2	19	167	156.45	20	93	40	3.24
	10 1/2	21	184	172.35	20	93	40	3.68
	11 1/2	23	200	188.29	26	107	45	4.88
	12	24	208	196.28	26	107	45	5.30
	12 1/2	25	216	204.27	26	107	45	5.43
2100B Chain: No.C2100 Chain Pitch: 63.50 mm Width between inner plates: 18.90 mm Roller Diameter: 19.05 mm Tooth Width: (T) 17.6 mm	6 1/2	13	148	136.64	20	88	50	3.38
	7 1/2	15	168	156.12	20	98	50	4.12
	8 1/2	17	189	175.78	20	107	50	5.15
	9 1/2	19	209	195.57	20	107	50	5.91
	10 1/2	21	230	215.43	20	107	50	6.76
	11 1/2	23	250	235.36	26	117	56	8.63
	12 1/2	25	270	255.34	26	117	56	9.65
