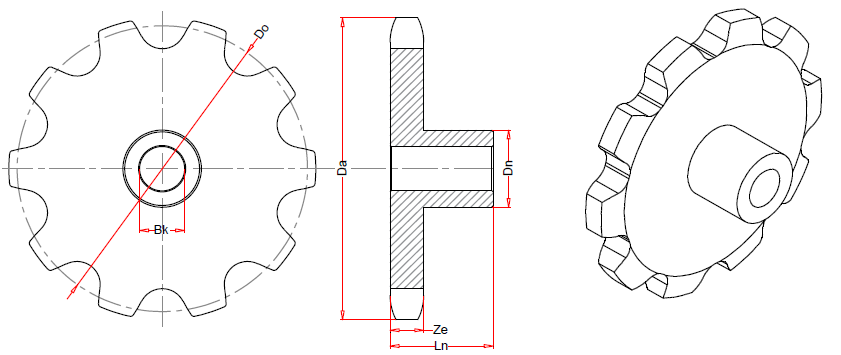

Sprockets for M Series Conveyor Chain (M224-M315)

Description

Conveyor chains - DIN 8165 - sprockets
ISO No.	p	z	Do	Da (For Roller Type)			Dn	Ln	Ze (For Roller Type)		Bk	q
	mm		mm	mm			mm	mm	mm		mm	Kg
				A	B	C,D			A,B,C	D
M 224	125	8	326.63	340	342	349	120	65	39	28	40	28
		10	404.51	418	420	427	130	70			40	38
		12	482.96	496	499	506	140	80			40	53
	160	8	418.09	431	434	441	140	80	39	28	40	44
		10	517.77	531	533	540	150	85			40	58
		12	618.19	631	634	641	160	90			40	73
	200	8	522.62	536	538	545	150	85	39	28	40	60
		10	647.22	660	663	670	160	90			40	78
		12	772.74	786	788	795	180	100			50	102
	250	8	653.27	666	669	676	160	90	39	28	40	78
		10	809.02	821	824	831	190	105			50	111
		12	965.92	979	982	988	210	120			50	143
M 315	160	8	418.09	433	435	443	200	115	44	31	50	61
		10	517.77	532	535	542	200	115			60	72
		12	618.19	633	635	643	210	115			60	89
	200	8	522.62	537	540	547	200	115	44	31	50	79
		10	647.22	662	664	672	200	115			60	108
		12	772.74	787	790	797	210	115			60	127
	250	8	653.27	668	670	678	210	115	44	31	60	109
		10	809.02	823	825	833	210	115			60	143
		12	965.92	980	983	990	220	125			60	153
