Sprockets for FV Series Conveyor Chain(FV40-FV112)

Sprockets for FV Series Conveyor Chain

GET A QUOTE

Description

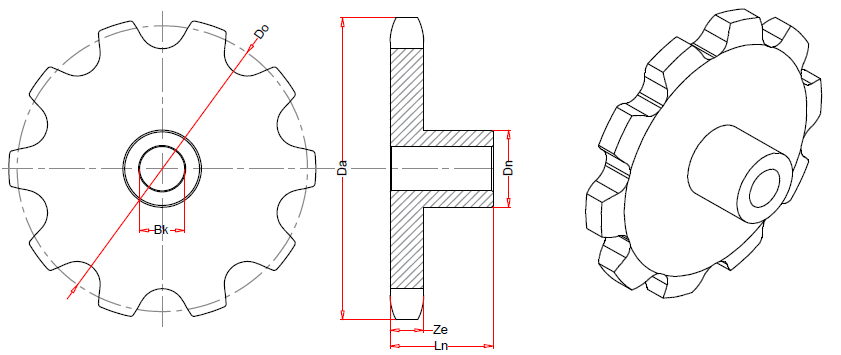

Type	p	z	Do	Da (For Roller Type)				Dn	Ln	Ze (For Roller Type)		Bk	q
	mm		mm	mm				mm	mm	mm		mm	Kg
				A	B	C	D			A,B,C	D
FV40	40	10	129.44	139	141			80	46	16		25	4
		16	205.03	215	216			90	50			30	5
		24	306.45	316	318			120	65			30	10
	50	10	161.81	171	173	175		100	50	16		30	5
		16	256.29	265	267	270		110	60			30	12
		24	383.07	392	394	397		120	65			30	19
	63	10	203.87	214	215	218	220	90	50	16	11	30	8
		16	322.93	333	334	337	339	120	65			30	15
		24	482.66	493	494	497	500	125	70			40	22
	80	8	209.05	218	220	223	224	110	50	16	11	30	7
		10	258.89	268	270	273	274	110	60			30	12
		16	410.06	419	421	424	425	120	65			40	19
	100	8	261.31	271	272	275	277	110	60	16	11	30	12
		10	323.61	334	335	338	340	120	65			30	16
		16	512.58	523	524	527	529	130	75			40	30
FV63	63	10	203.87	215	217	220		110	60	20		30	7
		16	322.93	334	336	339		125	70			30	13
		24	482.66	494	495	499		130	75			40	20
	80	8	209.05	219	221	224	226	110	60	20	14	30	7
		10	258.89	269	271	274	276	120	65			30	12
		16	410.06	420	422	425	427	130	75			40	20
	100	8	261.31	272	274	277	279	120	65	20	14	30	10
		10	323.61	335	336	340	342	125	70			30	13
		16	512.58	524	525	529	531	140	80			40	25
	125	8	326.64	338	339	343	345	125	70	20	14	40	14
		10	404.51	416	417	421	423	130	75			40	17
		12	482.96	494	496	499	501	130	75			40	22
	160	8	418.10	429	431	434	436	130	75	20	14	40	17
		10	517.78	529	531	534	537	140	80			40	26
		12	618.19	630	631	634	636	150	85			40	31

FV90	63	10	203.87	215	218	221		120	65	23		30	8
		16	322.93	334	337	340		130	75			30	15
		24	482.66	494	496	500		140	80			40	22
	100	8	261.31	272	275	279	281	125	70	23	17	30	12
		10	323.61	335	337	341	344	130	75			30	16
		16	512.58	524	526	530	533	150	85			40	30
	125	8	326.64	338	340	344	347	130	75	23	17	30	15
		10	404.51	416	418	422	425	140	80			30	23
		12	482.96	494	497	500	503	140	80			40	25
	160	8	418.10	429	432	436	438	140	80	23	17	40	23
		10	517.78	529	531	535	538	150	85			40	30
		12	618.19	629	632	636	638	160	90			50	32
	200	8	522.62	534	536	540	543	150	85	23	17	40	34
		10	647.22	658	661	665	667	160	90			40	50
	250	8	653.28	664	667	671	674	160	90	23	17	40	44
		10	809.03	820	823	827	830	170	95			50	60
FV112	100	8	261.31	273	275	280	284	125	70	27	21	30	15
		10	323.61	335	338	342	345	140	80			30	21
		16	512.58	525	527	532	535	160	90			40	38
		24	766.13	778	780	785	788	170	95			40	54
	125	8	326.64	338	341	345	348	140	80	27	21	30	21
		10	404.51	416	419	423	426	150	85			30	29
		12	482.96	495	497	502	504	150	85			40	35
	160	8	418.10	430	432	437	441	150	85	27	21	40	29
		10	517.78	529	532	536	540	160	90			40	41
		12	618.19	630	632	637	641	170	95			40	50
	200	8	522.62	534	537	541	545	160	90	27	21	40	50
		10	647.22	658	661	666	670	170	95			40	54
		12	772.74	784	787	792	795	170	95			50	63
	250	8	653.28	665	667	671	674	170	95	27	21	40	98
		10	809.03	820	823	827	830	190	105			50	141
		12	965.93	977	980	984	987	200	110			50	194
