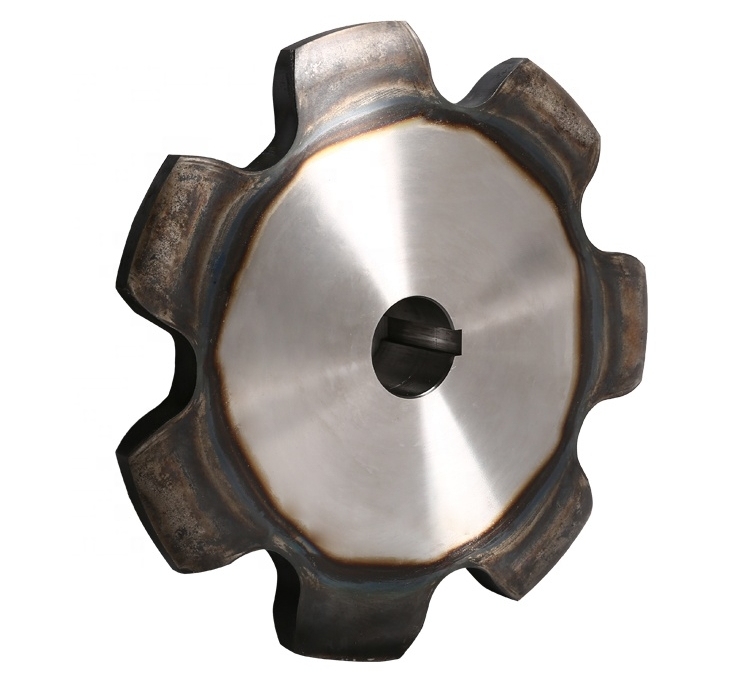

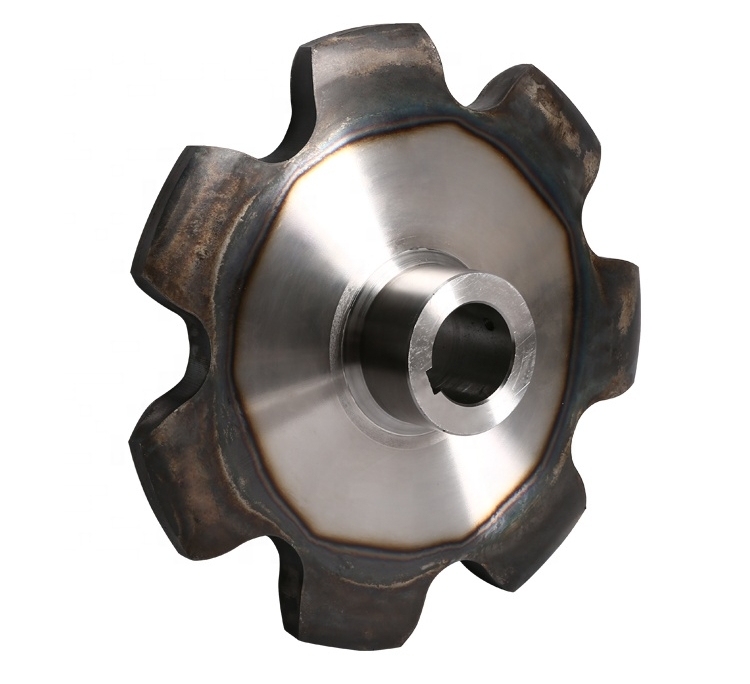

| Sprockets for agriculture chains type S88 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 66,27 mm | Z(T): Number of teeth | |||
| Width between inner plates: 28,58 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 22,86 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 26,0mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TS88 | 132.54 | 150.70 | 6 | 80 | 50 | 20 |
| 7TS88 | 152.75 | 170.90 | 7 | 80 | 50 | 20 |
| 8TS88 | 173.09 | 191.20 | 8 | 80 | 55 | 20 |
| 9TS88 | 193.76 | 212.00 | 9 | 90 | 60 | 25 |
| 10TS88 | 214.45 | 232.70 | 10 | 90 | 60 | 25 |
| 11TS88 | 235.22 | 253.50 | 11 | 90 | 60 | 25 |
| 12TS88 | 256.05 | 274.30 | 12 | 100 | 65 | 28 |
| 13TS88 | 276.92 | 295.20 | 13 | 100 | 65 | 28 |
| 14TS88 | 297.81 | 316.10 | 14 | 100 | 65 | 28 |
| 15TS88 | 318.74 | 337.00 | 15 | 100 | 65 | 28 |
| 16TS88 | 339.69 | 357.90 | 16 | 120 | 70 | 28 |
| 17TS88 | 360.50 | 378.90 | 17 | 120 | 70 | 28 |
| 18TS88 | 381.63 | 399.90 | 18 | 120 | 70 | 28 |
| 20TS88 | 423.59 | 441.70 | 20 | 130 | 70 | 28 |
| 21TS88 | 444.60 | 462.80 | 21 | 130 | 70 | 28 |
| 27TS88 | 570.84 | 589.10 | 27 | 160 | 80 | 28 |
| 30TS88 | 633.99 | 652.20 | 30 | 180 | 80 | 28 |
| 34TS88 | 718.23 | 736.50 | 34 | 200 | 100 | 28 |
| 38TS88 | 802.46 | 820.60 | 38 | 200 | 100 | 28 |
