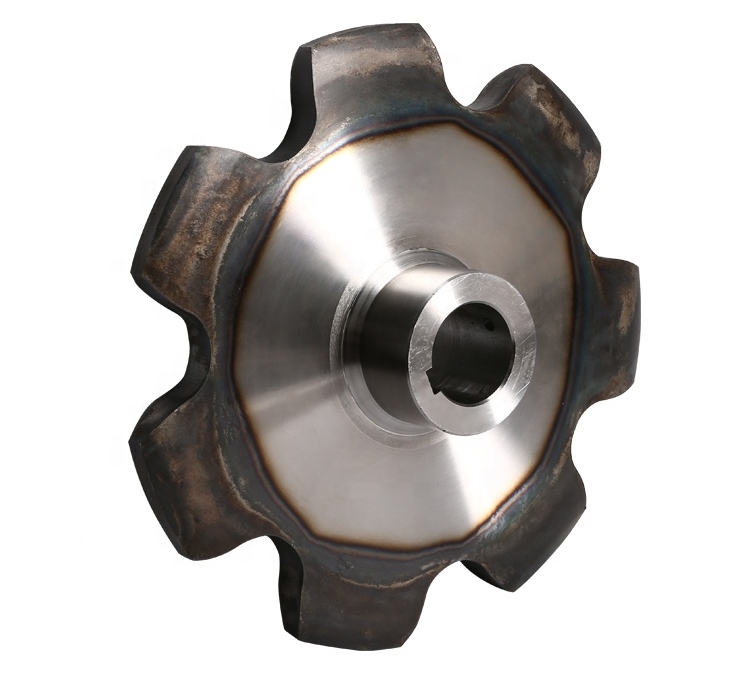

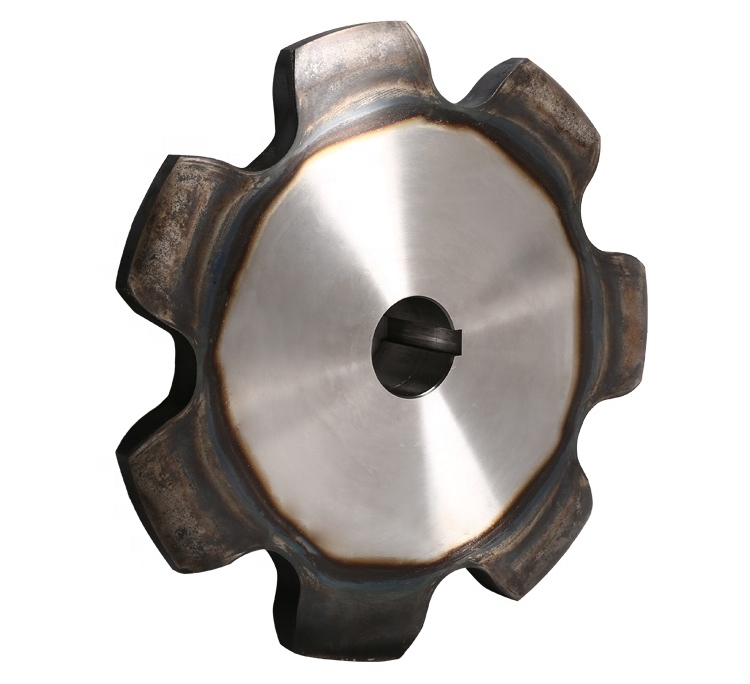

| Sprockets for agriculture chains type S77 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 58,34 mm | Z(T): Number of teeth | |||
| Width between inner plates: 22,23 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 18,26 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 19,8 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TS77 | 116.68 | 131.20 | 6 | 80 | 50 | 20 |
| 7TS77 | 134.47 | 149.00 | 7 | 80 | 50 | 20 |
| 8TS77 | 152.38 | 166.90 | 8 | 85 | 55 | 20 |
| 9TS77 | 170.57 | 185.10 | 9 | 90 | 60 | 25 |
| 10TS77 | 188.79 | 203.40 | 10 | 90 | 60 | 25 |
| 11TS77 | 207.07 | 221.60 | 11 | 90 | 60 | 25 |
| 12TS77 | 225.41 | 240.00 | 12 | 100 | 60 | 25 |
| 13TS77 | 243.78 | 258.40 | 13 | 100 | 60 | 25 |
| 14TS77 | 262.17 | 276.70 | 14 | 100 | 60 | 25 |
| 15TS77 | 280.60 | 295.20 | 15 | 100 | 60 | 25 |
| 16TS77 | 299.04 | 313.60 | 16 | 120 | 65 | 28 |
| 17TS77 | 317.50 | 332.10 | 17 | 120 | 65 | 28 |
| 18TS77 | 335.97 | 350.50 | 18 | 120 | 65 | 28 |
| 20TS77 | 372.90 | 387.50 | 20 | 120 | 65 | 28 |
| 21TS77 | 391.40 | 406.00 | 21 | 120 | 65 | 28 |
| 27TS77 | 502.53 | 517.10 | 27 | 140 | 70 | 28 |
| 30TS77 | 558.13 | 572.70 | 30 | 160 | 70 | 28 |
| 34TS77 | 632.29 | 646.90 | 34 | 180 | 75 | 28 |
| 38TS77 | 706.43 | 721.00 | 38 | 180 | 75 | 28 |
