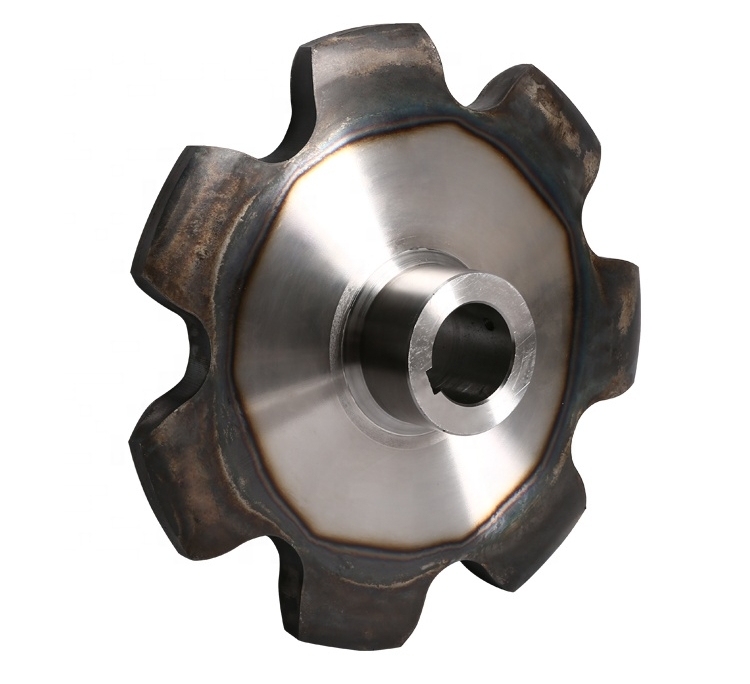

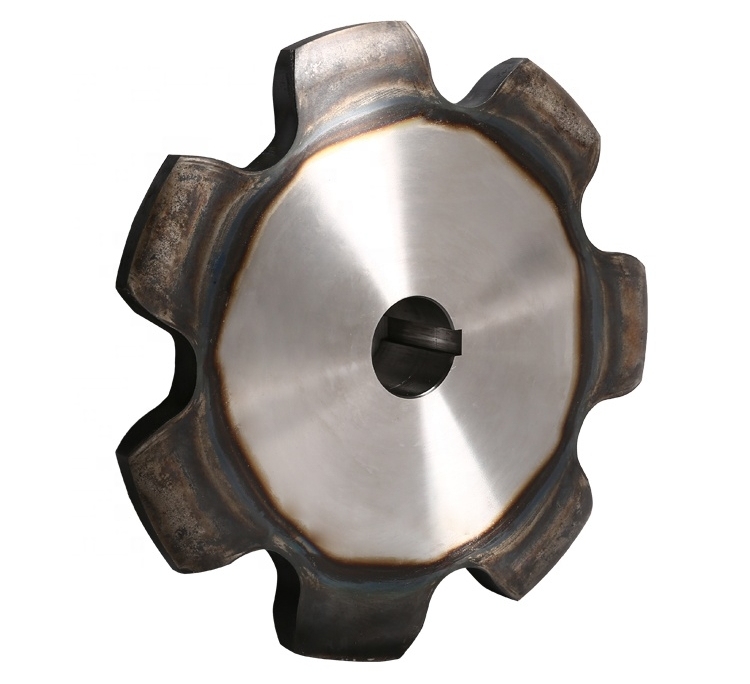

| Sprockets for agriculture chains type S52 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 38,10 mm | Z(T): Number of teeth | |||
| Width between inner plates: 22,23 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 15,24 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 19,8 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TS52 | 76.20 | 88.30 | 6 | 55 | 50 | 15 |
| 7TS52 | 87.82 | 99.80 | 7 | 60 | 50 | 15 |
| 8TS52 | 99.51 | 111.60 | 8 | 70 | 50 | 15 |
| 9TS52 | 111.39 | 123.60 | 9 | 75 | 55 | 20 |
| 10TS52 | 123.29 | 135.50 | 10 | 75 | 55 | 20 |
| 11TS52 | 135.23 | 147.70 | 11 | 85 | 55 | 20 |
| 12TS52 | 147.20 | 159.40 | 12 | 85 | 55 | 20 |
| 13TS52 | 159.20 | 171.40 | 13 | 85 | 55 | 20 |
| 14TS52 | 171.21 | 183.40 | 14 | 85 | 55 | 20 |
| 15TS52 | 183.24 | 195.40 | 15 | 85 | 55 | 20 |
| 16TS52 | 195.29 | 207.50 | 16 | 90 | 60 | 20 |
| 17TS52 | 207.34 | 219.60 | 17 | 90 | 60 | 20 |
| 18TS52 | 219.41 | 231.60 | 18 | 90 | 60 | 20 |
| 20TS52 | 243.53 | 255.60 | 20 | 100 | 60 | 20 |
| 21TS52 | 255.62 | 267.70 | 21 | 100 | 60 | 20 |
| 27TS52 | 328.18 | 340.40 | 27 | 100 | 65 | 25 |
| 30TS52 | 362.49 | 376.70 | 30 | 110 | 65 | 25 |
| 34TS52 | 412.92 | 425.10 | 34 | 120 | 70 | 25 |
| 38TS52 | 461.35 | 473.40 | 38 | 120 | 70 | 25 |
