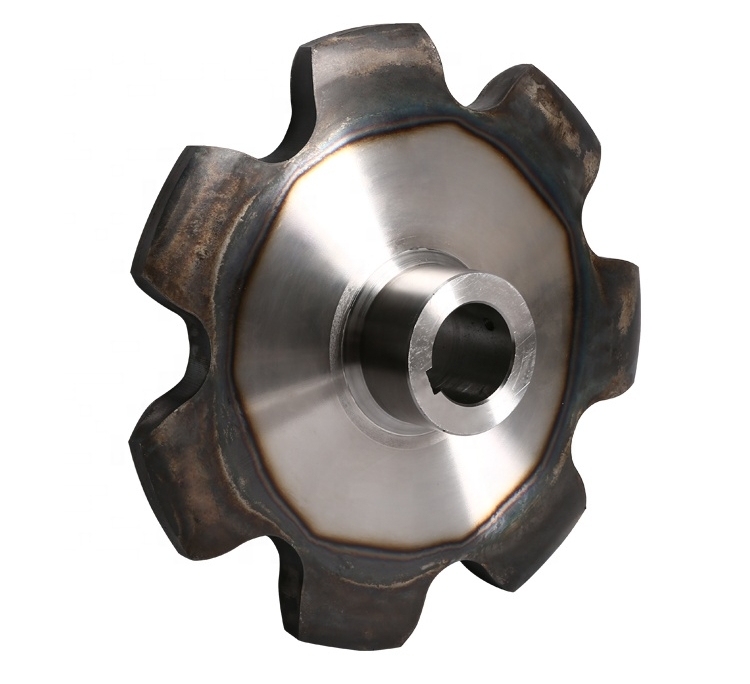

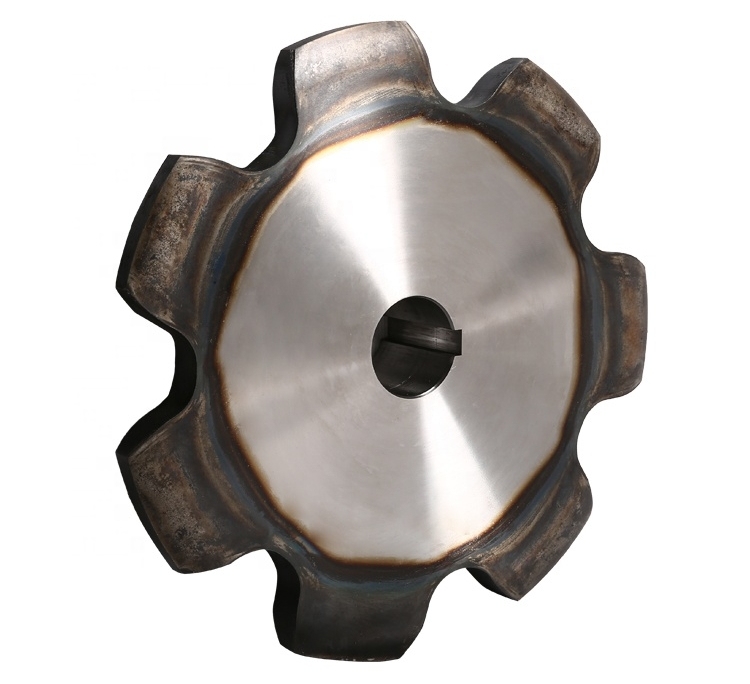

| Sprockets for agriculture chains type S45 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 41,40 mm | Z(T): Number of teeth | |||
| Width between inner plates: 22,23 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 15,24 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 19,8 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TS45 | 82.80 | 94.90 | 6 | 50 | 45 | 15 |
| 7TS45 | 95.42 | 107.50 | 7 | 70 | 45 | 15 |
| 8TS45 | 108.13 | 120.20 | 8 | 80 | 55 | 20 |
| 9TS45 | 121.04 | 133.20 | 9 | 80 | 55 | 20 |
| 10TS45 | 133.97 | 146.20 | 10 | 80 | 55 | 20 |
| 11TS45 | 146.94 | 159.10 | 11 | 90 | 55 | 20 |
| 12TS45 | 159.95 | 172.10 | 12 | 90 | 55 | 20 |
| 13TS45 | 172.99 | 185.20 | 13 | 90 | 55 | 20 |
| 14TS45 | 186.04 | 198.20 | 14 | 90 | 55 | 20 |
| 15TS45 | 199.12 | 211.30 | 15 | 90 | 55 | 20 |
| 16TS45 | 212.20 | 224.40 | 16 | 100 | 60 | 20 |
| 17TS45 | 225.30 | 237.50 | 17 | 100 | 60 | 20 |
| 18TS45 | 238.41 | 250.60 | 18 | 100 | 60 | 20 |
| 20TS45 | 264.62 | 276.70 | 20 | 100 | 60 | 20 |
| 21TS45 | 277.75 | 289.80 | 21 | 100 | 60 | 20 |
| 27TS45 | 256.61 | 368.80 | 27 | 100 | 65 | 25 |
| 30TS45 | 396.06 | 408.20 | 30 | 100 | 65 | 25 |
| 34TS45 | 448.69 | 460.70 | 34 | 120 | 70 | 25 |
| 38TS45 | 501.31 | 513.40 | 38 | 120 | 70 | 25 |
