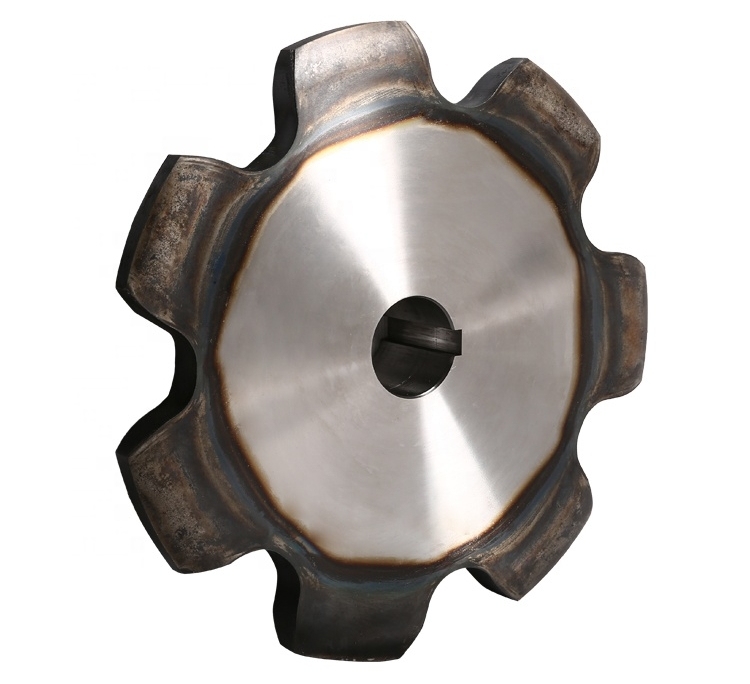

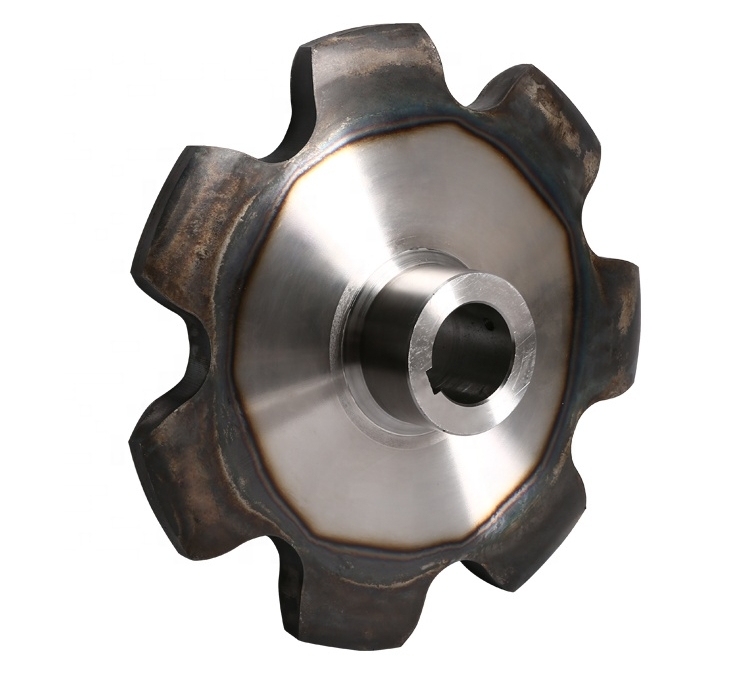

| Sprockets for agriculture chains type CA620 | ||||
| Chain Data | Sprocket Data | |||
| Pitch: 42.01 mm | Z(T): Number of teeth | |||
| Width between inner plates: 24.51 mm | Do: Pitch circle (pcd) - Diam | |||
| Roller: 17.91 mm | Da: Top - Diam | |||
| Dn: Hub Diam | ||||
| Ln: Total length, hub on one side | ||||
| d: Pilot bore | ||||
| B1:Plate Wheel Thickness 22,0 mm | ||||
| Sprocket No. | Do Ø mm |
Da Ø mm |
Z (T) | Dn Ø mm |
Ln mm |
d Ø mm |
| 6TCA620 | 84.02 | 102.59 | 6 | 55 | 45 | 15 |
| 7TCA620 | 96.82 | 114.54 | 7 | 65 | 45 | 15 |
| 8TCA620 | 109.78 | 127.47 | 8 | 70 | 50 | 15 |
| 9TCA620 | 122.83 | 141.47 | 9 | 80 | 55 | 20 |
| 10TCA620 | 135.95 | 155.34 | 10 | 80 | 55 | 20 |
| 11TCA620 | 149.11 | 169.12 | 11 | 90 | 55 | 20 |
| 12TCA620 | 162.31 | 179.89 | 12 | 90 | 55 | 20 |
| 13TCA620 | 175.54 | 193.55 | 13 | 90 | 55 | 20 |
| 14TCA620 | 188.79 | 207.16 | 14 | 90 | 55 | 20 |
| 15TCA620 | 202.06 | 220.75 | 15 | 90 | 55 | 20 |
| 16TCA620 | 215.34 | 234.30 | 16 | 100 | 60 | 20 |
| 17TCA620 | 228.63 | 247.84 | 17 | 100 | 60 | 20 |
| 18TCA620 | 241.93 | 261.36 | 18 | 100 | 60 | 20 |
| 20TCA620 | 268.55 | 286.25 | 20 | 100 | 60 | 20 |
| 21TCA620 | 281.87 | 299.72 | 21 | 100 | 60 | 20 |
| 27TCA620 | 361.87 | 380.42 | 27 | 110 | 65 | 25 |
| 30TCA620 | 401.90 | 420.70 | 30 | 110 | 65 | 25 |
| 34TCA620 | 455.30 | 474.37 | 34 | 120 | 70 | 25 |
| 38TCA620 | 508.72 | 527.99 | 38 | 120 | 70 | 25 |
