SPC-4

No.SPC-4
Material: Steel, Cast iron Product name:SPC cast iron v groove belt pulleys SPC-4 Taper Bush No.:3020,3535,4040,4545,5050 Surface treatment:Black electrophoresis Bore Type:taper bushed bore
GET A QUOTE
  • SPC-4
  • SPC-4
  • SPC-4
  • SPC-4
  • SPC-4

Description

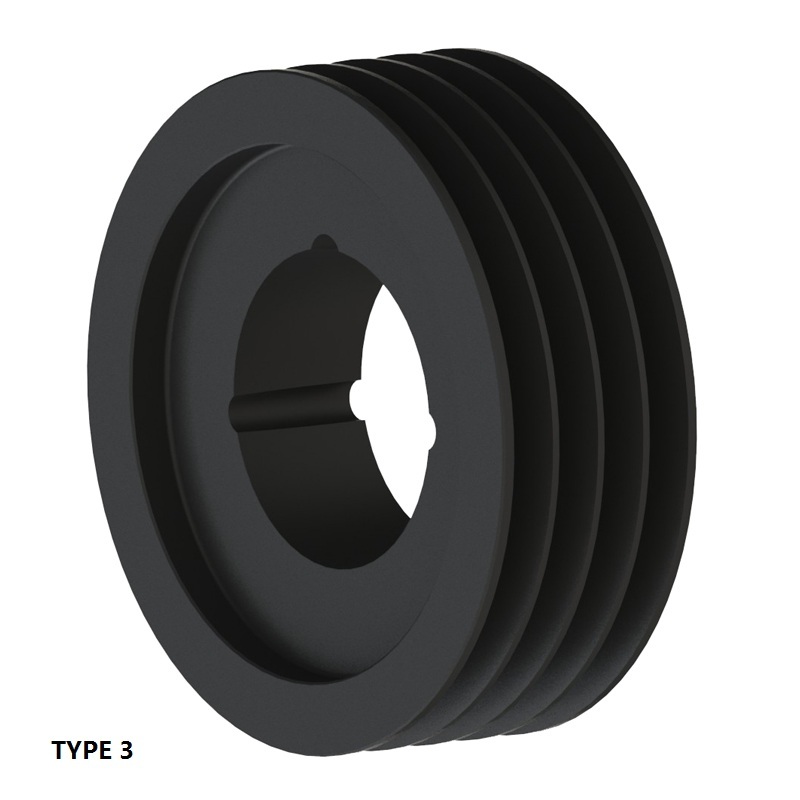

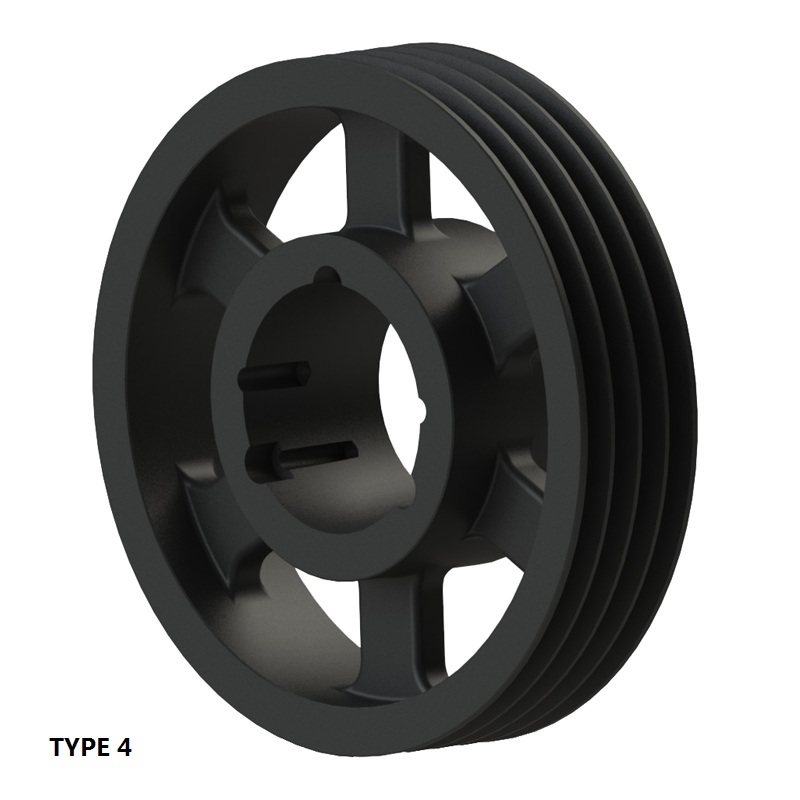

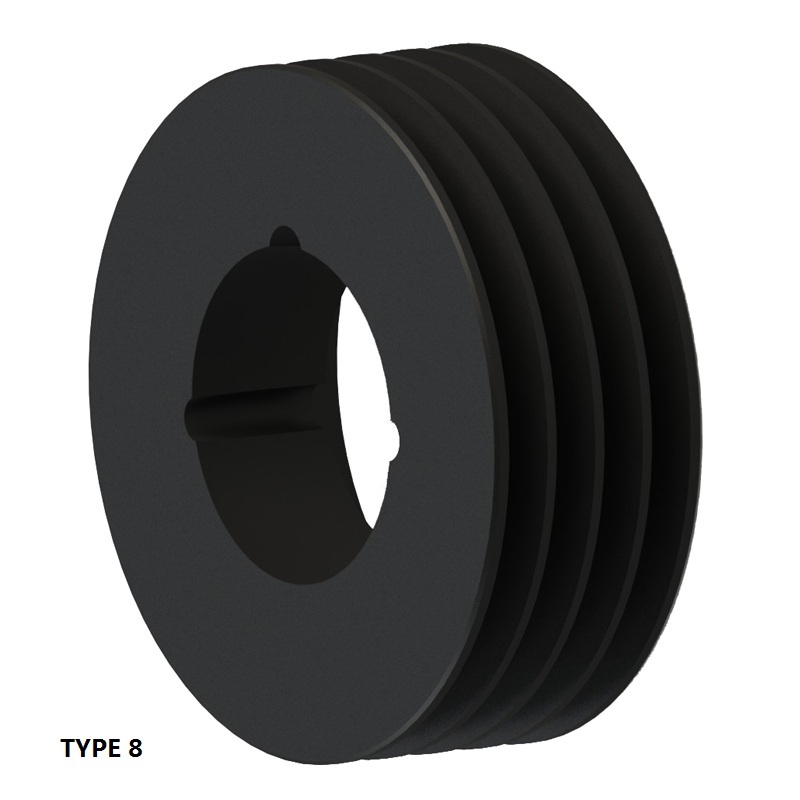

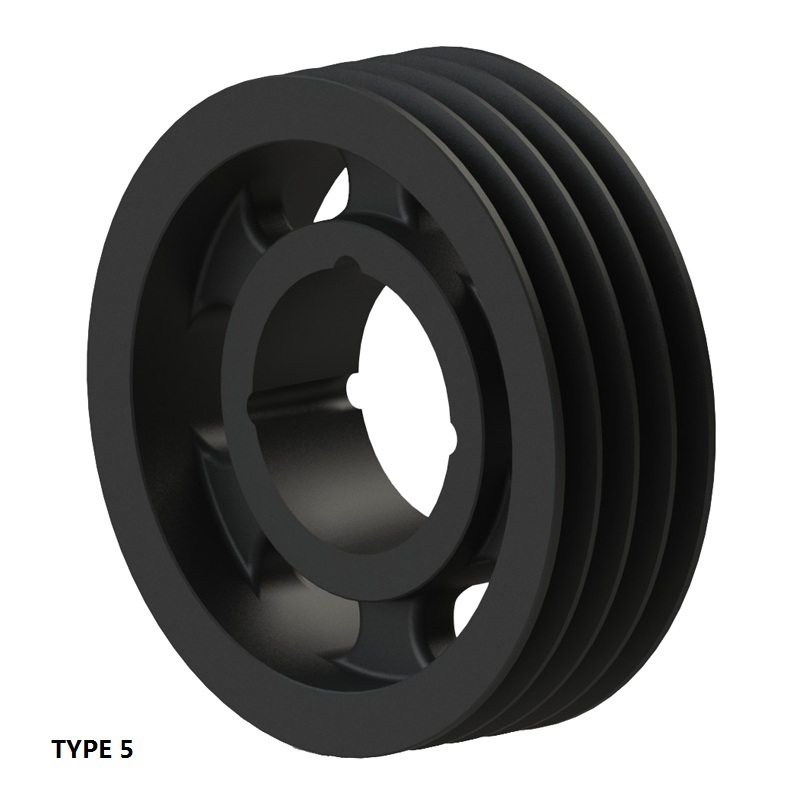

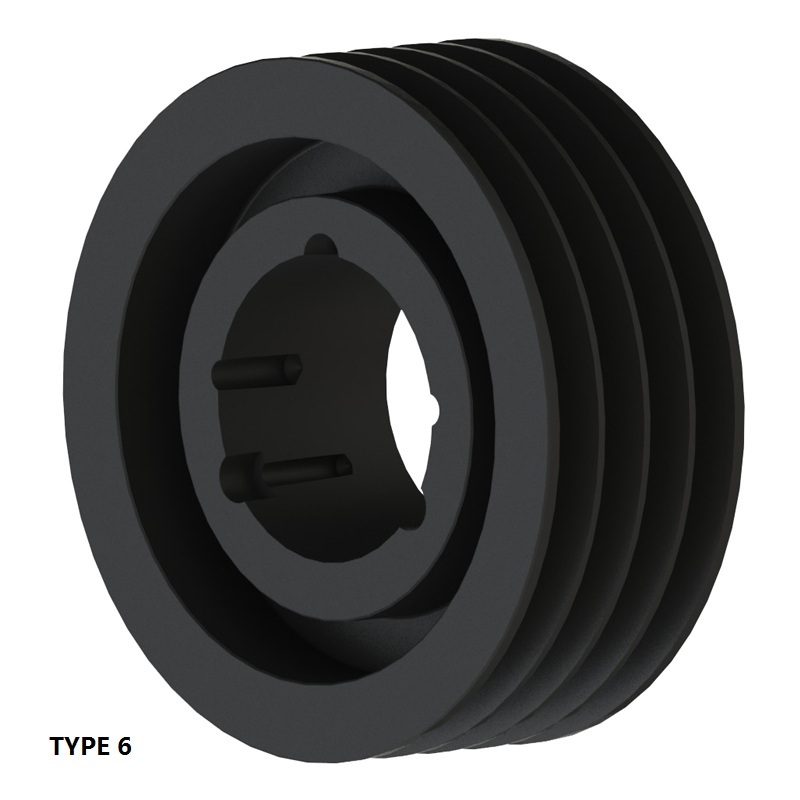

Type Grooves P O Type Bush Max Bore E F J K L M N
SPC  200-04 4 200 209.6 3 3020 75 - 111 148 30 51 30 -
SPC  212-04 4 212 221.6 3 3020 75 - 111 160 30 51 30 -
SPC  224-04 4 224 233.6 3 3535 90 - 111 172 11 89 11 -
SPC  236-04 4 236 245.6 3 3535 90 - 111 184 11 89 11 -
SPC  250-04 4 250 259.6 3 3535 90 - 111 198 11 89 11 -
SPC  265-04 4 265 274.6 3 3535 90 - 111 213 11 89 11 -
SPC  280-04 4 280 289.6 6 3535 90 - 111 228 11 89 11 -
SPC  300-04 4 300 309.6 6 3535 90 20 111 248 11 89 11 170
SPC  315-04 4 315 324.6 6 3535 90 20 111 263 11 89 11 170
SPC  335-04 4 335 344.6 6 3535 90 20 111 283 11 89 11 170
SPC  355-04 4 355 364.6 6 3535 90 20 111 303 11 89 11 170
SPC  375-04 4 375 384.6 6 3535 90 25 111 323 11 89 11 170
SPC  400-04 4 400 409.6 5 3535 90 - 111 344 11 89 11 170
SPC  425-04 4 425 434.6 5 3535 90 - 111 369 11 89 11 170
SPC  450-04 4 450 459.6 5 3535 90 - 111 394 11 89 11 170
SPC  475-04 4 475 484.6 5 3535 90 - 111 419 11 89 11 170
SPC  500-04 4 500 509.6 5 3535 90 - 111 444 11 89 11 170
SPC  530-04 4 530 539.6 5 3535 90 - 111 474 11 89 11 170
SPC  560-04 4 560 569.6 5 4040 100 - 111 504 45 102 45 200
SPC  630-04 4 630 639.6 4 4545 110 - 111 574 15 114 15 225
SPC  710-04 4 710 719.6 4 5050 125 - 111 654 4 127 12 245
SPC  800-04 4 800 809.6 4 5050 125 - 111 737 4 127 12 245
SPC  1000-04 4 1000 1,009.6 4 5050 125 - 111 937 4 127 12 245
SPC  1250-04 4 1250 1,259.6 4 5050 125 - 111 1187 4 127 12 245
