MXL025

No.MXL025

Aluminium UN13571TA16 Suitable for Anodic Treatment Steel UNI C45 Cast iron GG25 UNI 5007 The surface treatment of timing belt pulleys is black phosphated (except Aluminium material) The timing belt pulleys that made of GG25 cast iron should be dynam

GET A QUOTE

Description

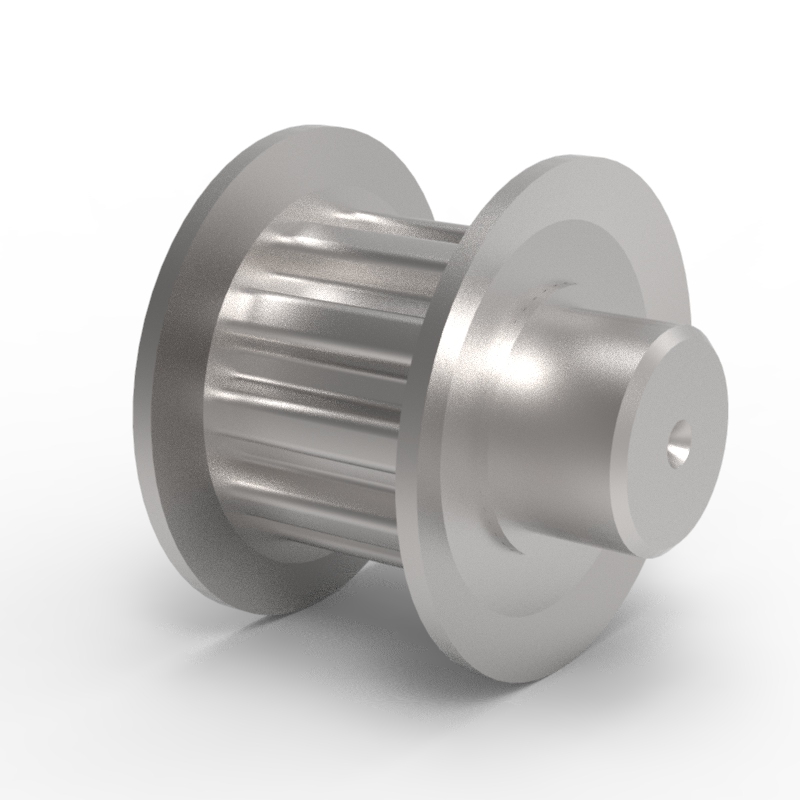

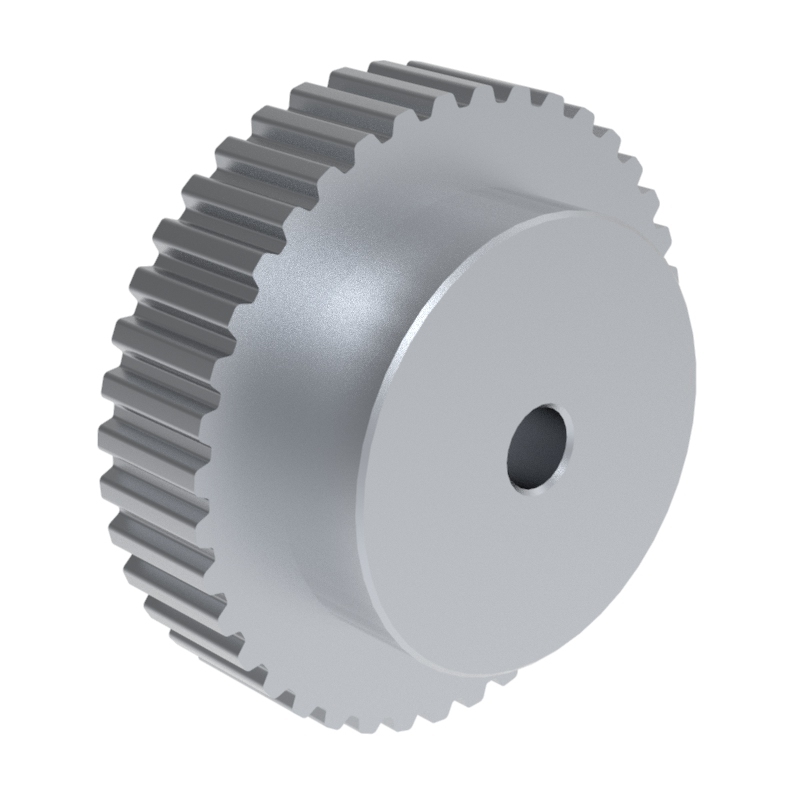

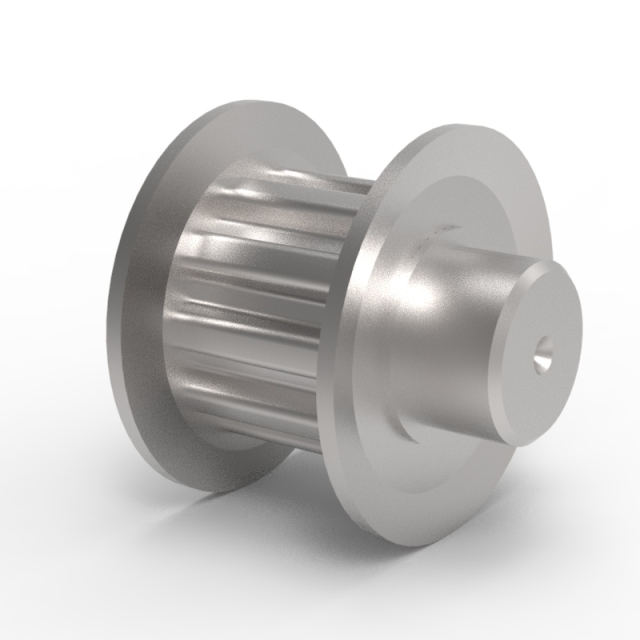

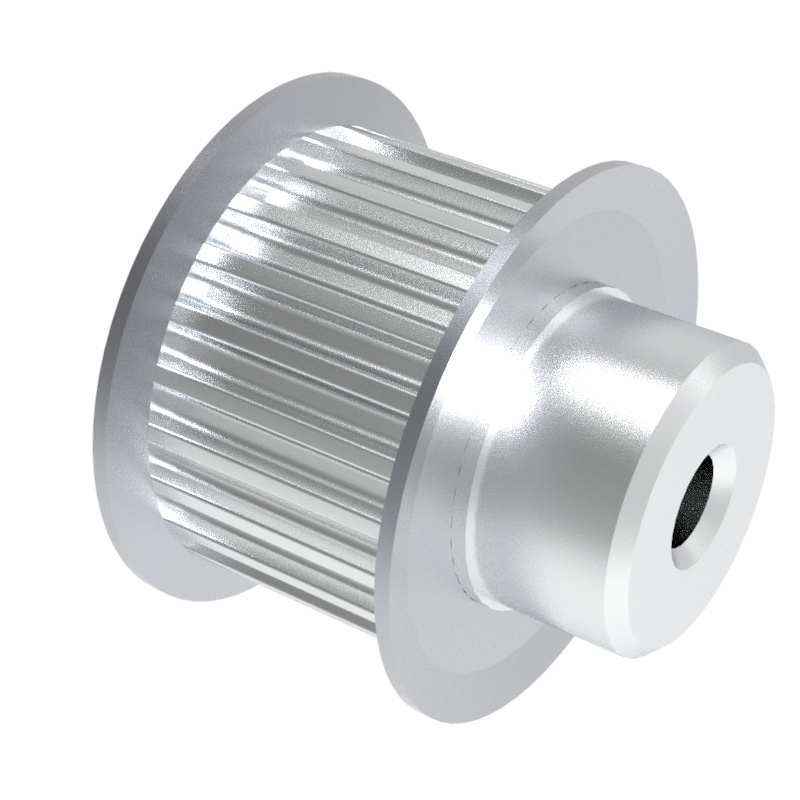

MXL 025
Pitch: 0,80” (2,032 mm)
FOR 1/4 "(6.35 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc

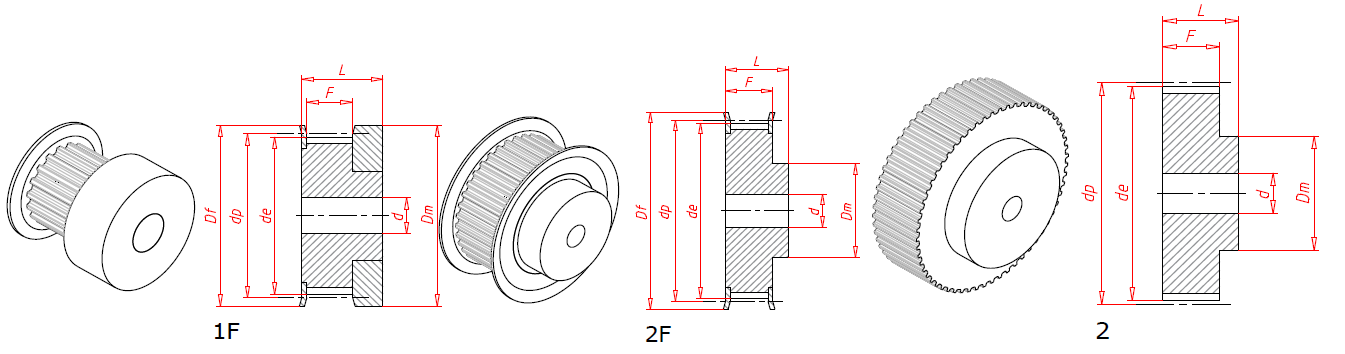

				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
16 MXL 025	1F	Al	16	10.35	9.84	15	15	8.5	16		101	0.01
18 MXL 025	1F	Al	18	11.64	11.13	16	16	8.5	16		102	0.01
20 MXL 025	1F	Al	20	12.94	12.43	16	16	8.5	16		102	0.01
22 MXL 025	2F	Al	22	14.23	13.72	18	10	11.0	16	3	104	0.01
24 MXL 025	2F	Al	24	15.52	15.02	18	10	11.0	16	3	104	0.01
28 MXL 025	2F	Al	28	18.11	17.60	23	11	11.0	16	3	107	0.01
30 MXL 025	2F	Al	30	19.40	18.90	23	12	11.0	16	4	107	0.02
32 MXL 025	2F	Al	32	20.70	20.19	25	14	11.0	16	4	108	0.02
36 MXL 025	2F	Al	36	23.29	22.78	28	16	11.0	16	4	109	0.02
40 MXL 025	2F	Al	40	25.87	25.36	32	18	11.0	16	4	110	0.03
42 MXL 025	2F	Al	42	27.17	26.66	32	18	11.0	16	5	110	0.03
44 MXL 025	2F	Al	44	28.46	27.95	36	18	11.0	16	5	111	0.03
48 MXL 025	2	Al	48	31.05	30.54		20	11.0	16	5		0.03
60 MXL 025	2	Al	60	38.81	38.30		24	11.0	16	5		0.04
72 MXL 025	2	Al	72	46.57	46.06		25	11.0	16	6		0.05
