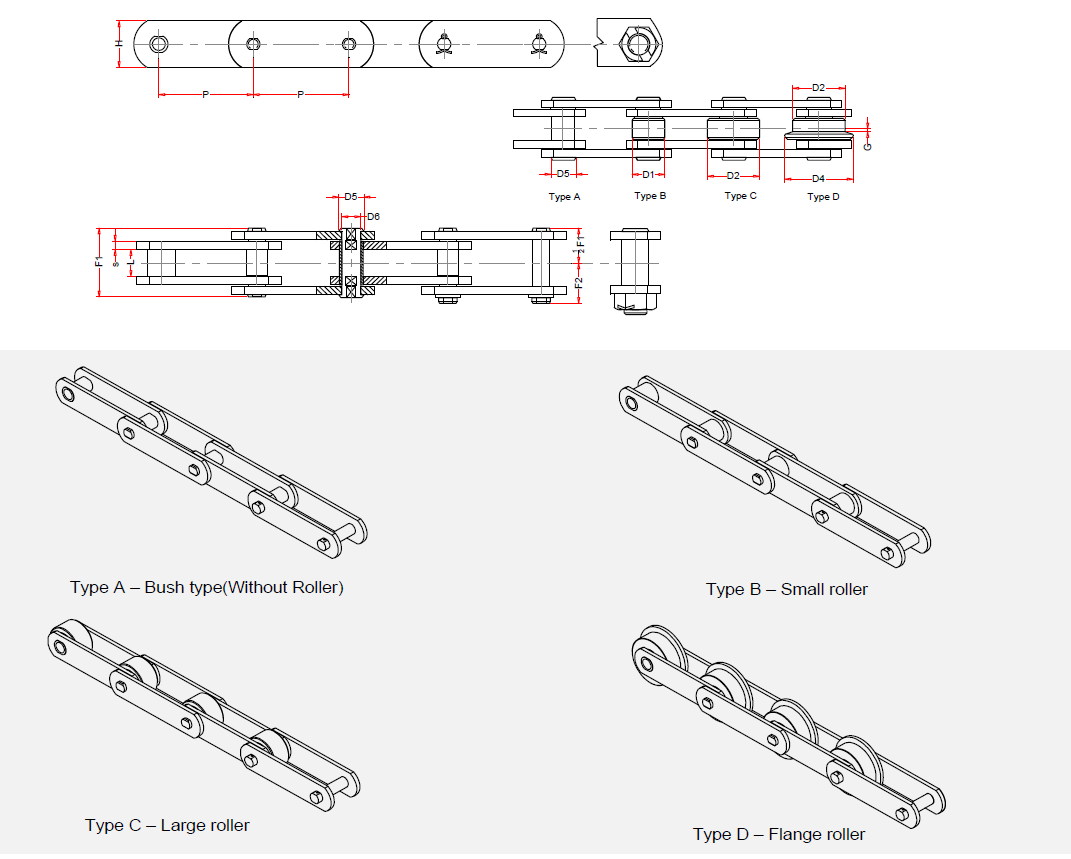

| Metric Conveyor Chain (DIN 8167) | ||||||||||||||||||
| Chain No. | Pitch sizes available | Rollers | Bushings | Pins | Over All Pin & Cotter | Between Sidebars |
Sidebars | Ultimate tensile strength |
Average tensile strength |
|||||||||
| Style | Flange Thickness | Diameter | Thickness | Height | ||||||||||||||
| p | D1 | D2 | D4 | G | D5 | D6 | F1 | F2 | L | S | H | Q min | Q0 | |||||
| M20 | 40* | 50 | 63 | 80 | 12.5 | 25 | 32 | 3.5 | 9 | 6 | 33.0 | 19.0 | 16 | 2.5 | 18 | 20 | 25.0 | |
| M28 | 50* | 63 | 80 | 100 | 15.0 | 30 | 36 | 4.0 | 10 | 7 | 36.0 | 20.5 | 18 | 3.0 | 20 | 28 | 35.0 | |
| M40 | 63 | 80 | 100 | 125 | 18.0 | 36 | 45 | 4.5 | 11 | 8 | 40.5 | 24.0 | 20 | 4.0 | 25 | 40 | 50.0 | |
| M56 | 63* | 80 | 100 | 125 | 160 | 21.0 | 42 | 50 | 7.0 | 15 | 10 | 45.0 | 26.0 | 24 | 4.0 | 30 | 56 | 70.0 |
| M80 | 80 | 100 | 125 | 160 | 200 | 25.0 | 50 | 60 | 7.0 | 18 | 12 | 54.5 | 30.5 | 28 | 5.0 | 35 | 80 | 100.0 |
| M112 | 80* | 100 | 125 | 160 | 200 | 30.0 | 60 | 75 | 7.5 | 21 | 15 | 63.0 | 36.0 | 32 | 6.0 | 40 | 112 | 140.0 |
| M160 | 100* | 125 | 160 | 200 | 250 | 36.0 | 70 | 90 | 8.5 | 25 | 18 | 72.0 | 41.5 | 37 | 7.0 | 50 | 160 | 200.0 |
| M224 | 125* | 160 | 200 | 250 | 315 | 42.0 | 85 | 105 | 10.0 | 30 | 21 | 84.0 | 47.0 | 43 | 8.0 | 60 | 224 | 280.0 |
| M315 | 160* | 200 | 250 | 315 | 400 | 50.0 | 100 | 124 | 10.5 | 36 | 25 | 97.0 | 55.0 | 48 | 10.0 | 70 | 315 | 393.7 |
| M450 | 200 | 250 | 315 | 400 | 60.0 | 120 | 149 | 11.5 | 42 | 30 | 114.0 | 67.0 | 56 | 12.0 | 80 | 450 | 562.5 | |
| M630 | 250 | 315 | 400 | 500 | 70.0 | 140 | 170 | 15.0 | 50 | 36 | 137.0 | 87.5 | 67 | 14.0 | 100 | 650 | 715.0 | |
| M900 | 250 | 315 | 400 | 500 | 600 | 85.0 | 170 | 210 | 17.0 | 60 | 44 | 153.0 | 95.0 | 78 | 16.0 | 120 | 900 | 990.0 |
