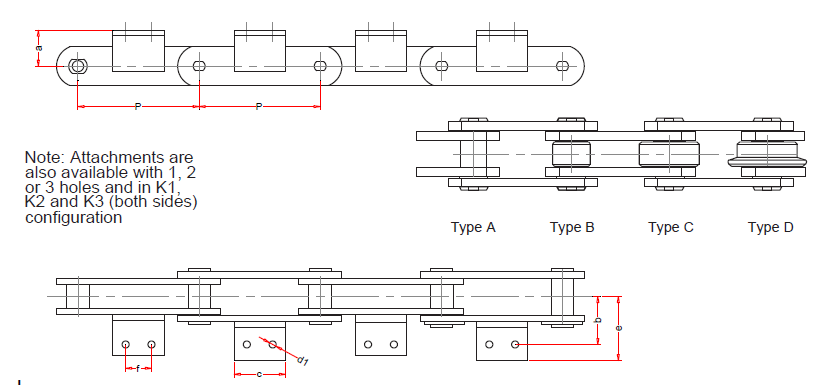

M Series Attachments

Description

* Attachment With One Hole

M Series Attachments Metric Conveyor Chain (DIN 8167)
Chain No.	Pitch sizes	Attachment Dimension						Welded or Integral attachment	Chain Weight - Excluding Attachments				Attachment Weight
	Pitch sizes	mm	mm	mm	mm	mm	mm		kg/metre				(A2)
	p	a	b	c	d1	e	f		Type A	Type B	Type C	Type D	kg each
M20	40*	16	27	14	6.6	40	*	.	1.10	1.3	2.4	2.5	0.02
M20	50	16	27	14	6.6	40	*	.	1.01	1.3	2.0	2.1	0.02
M20	63	16	27	35	6.6	40	20	25x3	0.99	1.2	1.8	1.9	0.04
M20	80	16	27	50	6.6	40	35	25x3	0.90	1.1	1.6	1.6	0.06
M28	50*	20	32	20	9	47	*	20x3	1.60	1.9	3.3	3.4	0.02
M28	63	20	32	20	9	47	*	30x3	1.50	1.7	2.8	2.9	0.02
M28	80	20	32	45	9	47	25	30x3	1.40	1.6	2.5	2.6	0.05
M28	100	20	32	60	9	47	40	30x3	1.30	1.5	2.1	2.2	0.08
M40	63	25	35	31	9	50	*	30x4	2.25	2.6	4.4	4.6	0.04
M40	80	25	35	45	9	50	20	30x4	2.00	2.3	3.7	3.9	0.07
M40	100	25	35	60	9	50	40	30x4	1.90	2.1	3.2	3.4	0.10
M40	125	25	35	85	9	50	65	30x4	1.80	2.0	2.9	3.0	0.15
M56	63*	30	44	22	11	61	*	40x4	3.40	3.9	6.8	7.2	0.05
M56	80	30	44	30	11	61	*	40x4	3.00	3.4	5.7	6.0	0.07
M56	100	30	44	50	11	61	25	40x4	2.80	3.1	5.0	5.2	0.12
M56	125	30	44	75	11	61	50	40x4	2.60	2.9	4.4	4.5	0.18
M56	160	30	44	110	11	61	85	40x4	2.54	2.7	3.9	4.1	0.27
M80	80	35	48	30	11	65	*	40x4	4.70	5.4	9.2	9.4	0.07
M80	100	35	48	50	11	65	25	40x4	4.30	4.8	7.9	8.0	0.12
M80	125	35	48	75	11	65	50	40x4	4.00	4.4	6.9	7.0	0.18
M80	160	35	48	110	11	65	85	40x4	3.70	4.0	6.0	6.1	0.27
M80	200	35	48	150	11	65	125	40x4	3.50	3.8	5.3	5.4	0.36
M112	80*	40	55	28	14	80	*	50x6	6.8	8.0	14.0	14.7	0.13
M112	100	40	55	40	14	80	*	50x6	6.2	7.2	12.0	12.5	0.18
M112	125	40	55	65	14	80	35	50x6	5.7	6.5	10.4	10.8	0.30
M112	160	40	55	95	14	80	65	50x6	5.3	5.9	9.0	9.3	0.44
M112	200	40	55	130	14	80	100	50x6	5.0	5.5	7.9	8.2	0.59
M160	100*	45	62	30	14	85	*	50x6	9.7	11.2	18.9	20.2	0.13
M160	125	45	62	50	14	85	25	50x6	8.9	10.0	16.3	18.1	0.23
M160	160	45	62	80	14	85	50	50x6	8.2	9.1	14.0	15.4	0.37
M160	200	45	62	115	14	85	85	50x6	7.6	8.4	12.2	13.4	0.53
M160	250	45	62	175	14	85	145	50x6	7.3	7.9	11.0	12.0	0.80
M224	125*	55	70	35	18	100	*	63x8	13.0	14.8	25.8	26.6	0.30
M224	160	55	70	60	18	100	*	63x8	12.0	13.4	22.0	22.7	0.43
M224	200	55	70	100	18	100	65	63x8	11.0	12.1	19.0	19.5	0.71
M224	250	55	70	160	18	100	125	63x8	10.3	11.2	16.7	17.1	1.13
M224	315	55	70	230	18	100	190	63x8	9.8	10.5	14.9	15.2	1.60
M315	160*	65	80	35	18	115	*	70x10	18.3	20.4	33.3	34.6	0.36
M315	200	65	80	85	18	115	50	70x10	16.7	18.4	28.7	29.7	0.84
M315	250	65	80	140	18	115	100	70x10	15.6	17.0	25.2	26.0	1.41
M315	315	65	80	190	18	115	155	70x10	14.6	15.7	22.3	22.9	1.93
M315	400	65	80	205	18	115	155	70x10	13.9	14.8	20.0	20.5	2.08
M450	200	75	90	50	18	125	*	70x10	24.0	27.0	40.5	47.0	0.56
M450	250	75	90	125	18	125	85	70x10	22.0	24.9	39.5	41.0	1.35
M450	315	75	90	195	18	125	155	70x10	21.0	23.0	34.5	36.0	2.12
M450	400	75	90	280	18	125	240	70x10	19.6	21.2	30.5	31.4	3.06
M630	250	90	115	50	24	165	*	100x12	36.0	40.8	64.0	66.9	0.90
M630	315	90	115	150	24	165	100	100x12	33.4	36.6	55.5	57.7	2.70
M630	400	90	115	240	24	165	190	100x12	31.5	33.9	49.0	50.7	4.30
M630	500	90	115	350	24	165	300	100x12	29.6	31.6	43.6	45.0	6.20
M900	250	110	140	60	30	195	*	120x15	49.7	56.5	98.3	104.5	1.60
M900	315	110	140	125	30	195	65	120x15	45.5	51.8	84.2	89.7	3.30
M900	400	110	140	215	30	195	155	120x15	42.0	46.2	72.5	76.9	5.70
M900	500	110	140	300	30	195	240	120x15	39.3	42.7	63.8	67.6	8.00
M900	600	110	140	350	30	195	300	120x15	37.3	39.9	56.6	58.9	8.00
