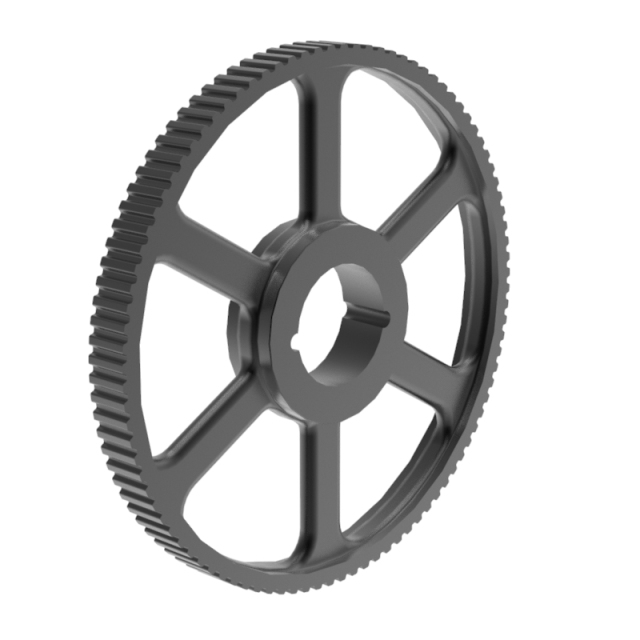

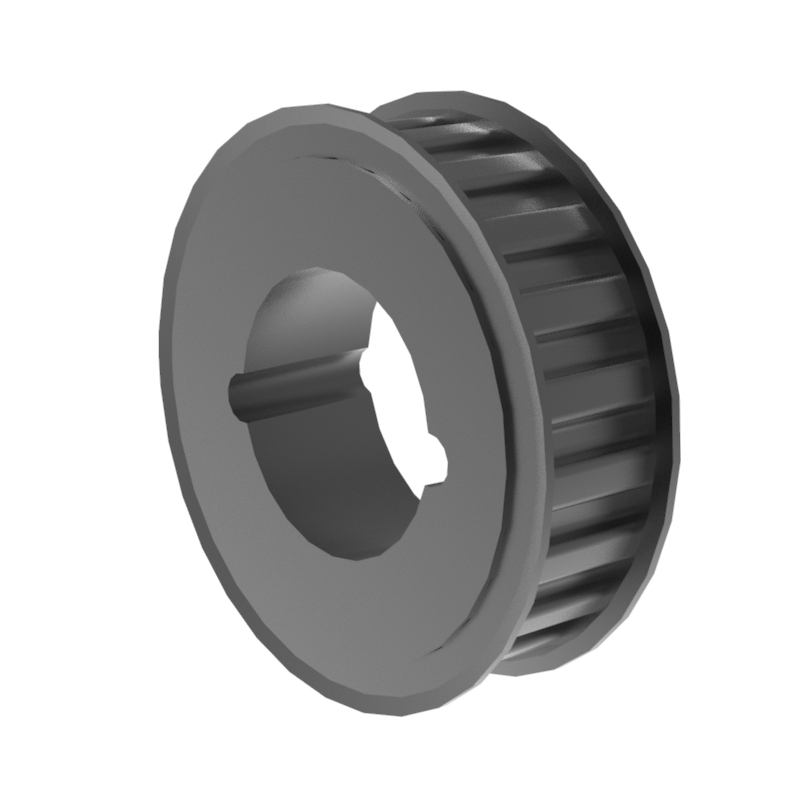

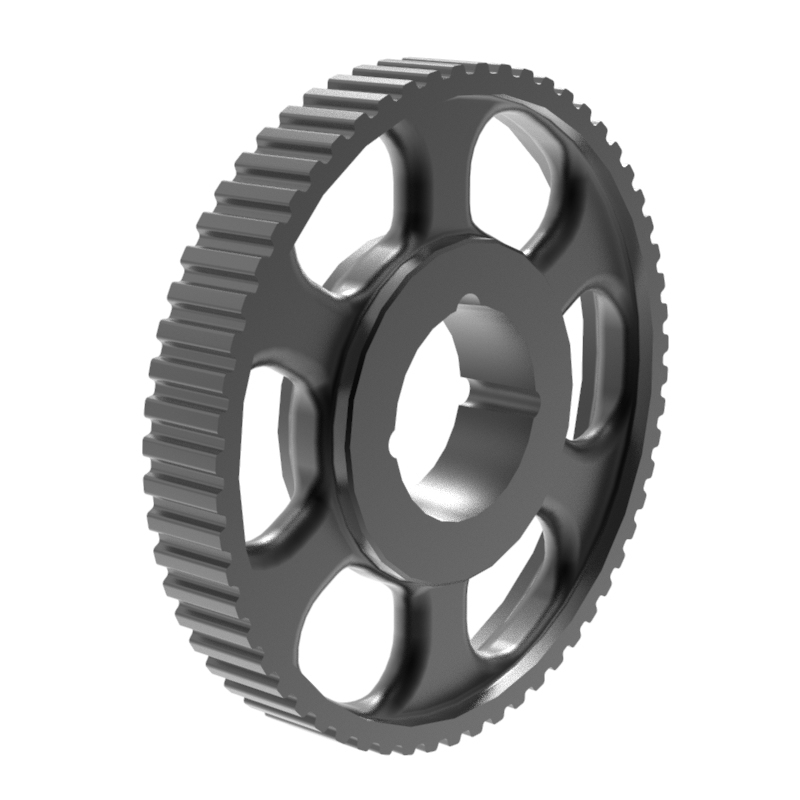

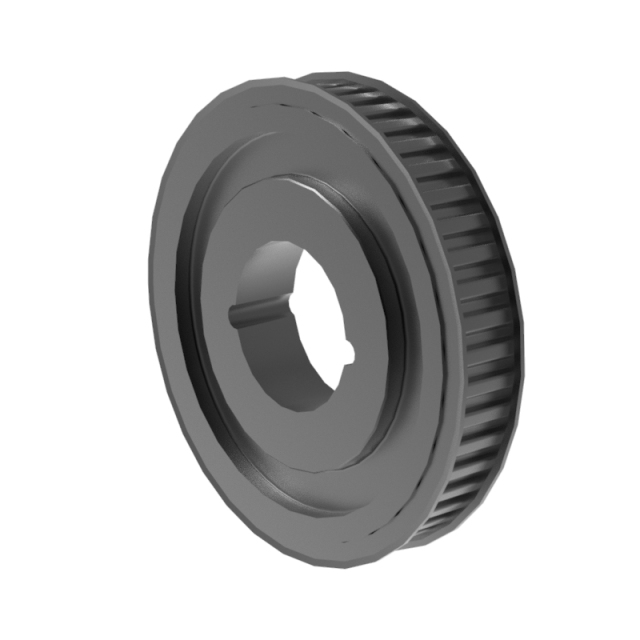

L100

No.TB L100

Steel UNI C45 Cast iron GG25 UNI 5007 Bore Type:Taper Bore PITCH=3/8"(9.525mm)

GET A QUOTE

Description

Timing Pulley |L/H|Taper Bore
L 100
Pitch: 3/8” (9,525 mm)
FOR 1” (25,4 mm) WIDTH BELTS

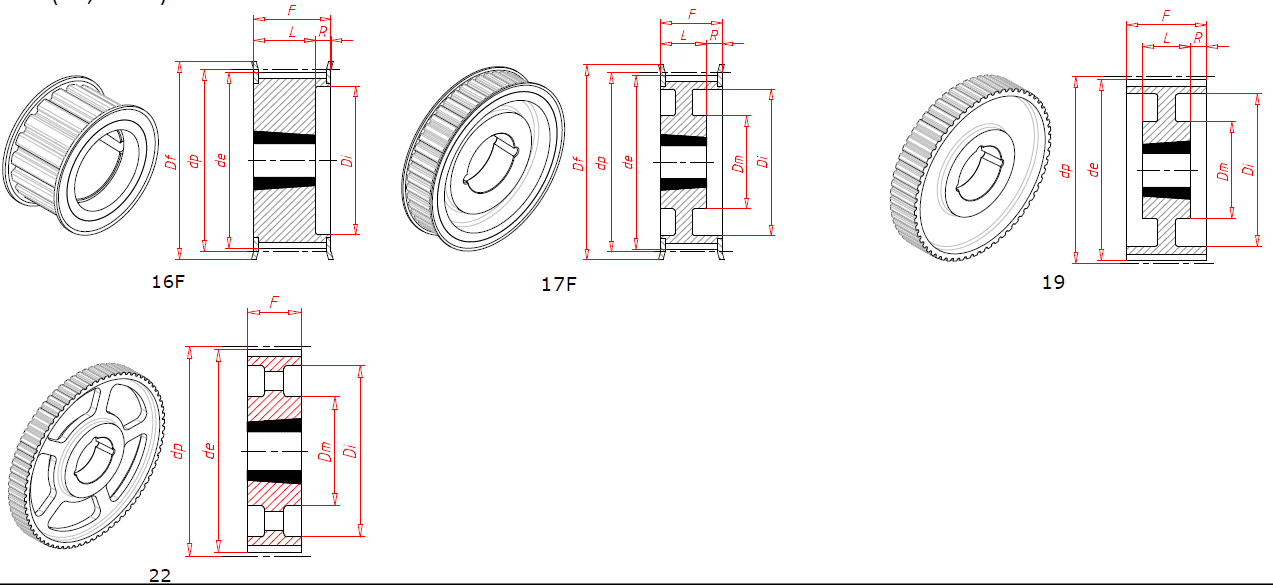

Catalog No.	Type	Material	Teeth	Bush No.	Bore max	Pitch Dia	Outer Dia	Flange Dia	Hub Dia		Tooth width	Total length			Mass per pc
						dp	de	Df	Dm	Di	F	L	R	n ° flange	(q≈)
						mm	mm	mm	mm	mm	mm	mm	mm	°	kg/pc
TL 18 L 100	16F	St	18	1108	28	54.57	53.81	60		38	31.0	22.0	9.0	308	0.20
TL 19 L 100	16F	St	19	1108	28	57.61	56.84	63		38	31.0	22.0	9.0	309	0.32
TL 20 L 100	16F	St	20	1108	28	60.64	59.88	66		45	31.0	22.0	9.0	310	0.41
TL 21 L 100	16F	St	21	1108	28	63.67	62.91	71		45	31.0	22.0	9.0	311	0.45
TL 22 L 100	16F	St	22	1108	28	66.70	65.94	75		48	31.0	22.0	9.0	312	0.47
TL 23 L 100	16F	St	23	1108	28	69.73	68.97	79		52	32.0	22.0	10.0	313	0.50
TL 24 L 100	16F	St	24	1108	28	72.77	72.00	79		52	32.0	22.0	10.0	313	0.64
TL 25 L 100	16F	St	25	1108	28	75.80	75.04	83		54	32.0	22.0	10.0	314	0.68
TL 26 L 100	16F	St	26	1108	28	78.83	78.07	87		60	32.0	22.0	10.0	315	0.70
TL 27 L 100	16F	St	27	1108	28	81.86	81.10	87		60	32.0	22.0	10.0	315	0.83
TL 28 L 100	16F	St	28	1108	28	84.89	84.13	91		65	32.0	22.0	10.0	316	0.85
TL 30 L 100	16F	St	30	1210	32	90.96	90.20	97		71	32.0	25.0	7.0	318	0.90
TL 32 L 100	16F	St	32	1210	32	97.02	96.26	103		75	32.0	25.0	7.0	320	1.05
TL 36 L 100	16F	St	36	1610	42	109.15	108.39	115		86	32.0	25.0	7.0	323	1.40
TL 40 L 100	16F	St	40	1610	42	121.28	120.51	127		96	32.0	25.0	7.0	327	1.65
TL 48 L 100	17F	St	48	1610	42	145.53	144.77	152	92	120	32.0	25.0	7.0	334	2.80
TL 60 L 100	19	St	60	1610	42	181.91	181.15		92	166	32.0	25.0	3.5		2.70
TL 72 L 100	22	GG	72	2012	50	218.30	217.53		106	202	32.0	32.0			2.96
TL 84 L 100	22	GG	84	2012	50	254.68	253.90		106	236	32.0	32.0			3.87
TL 96 L 100	22	GG	96	2012	50	291.06	290.30		106	270	32.0	32.0			4.64
TL 120 L 100	22	GG	120	2012	50	363.83	363.07		106	343	32.0	32.0			6.37
