Timing Pulley |MXL/XL/L/H/XH|pilot bore
L 100
Pitch: 3/8” (9,525 mm)
FOR 1” (25,4 mm) WIDTH BELTS

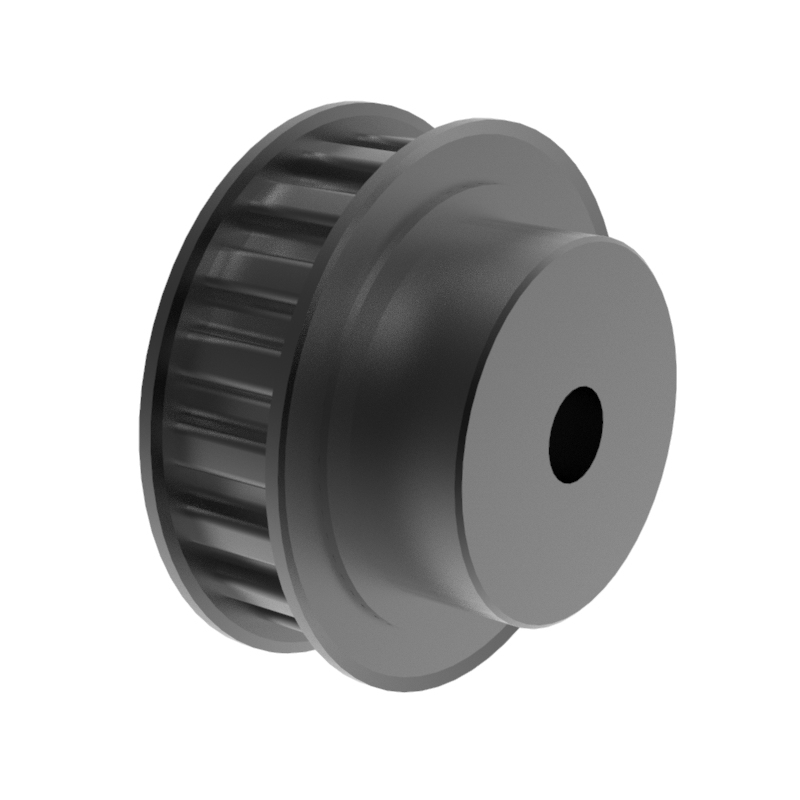

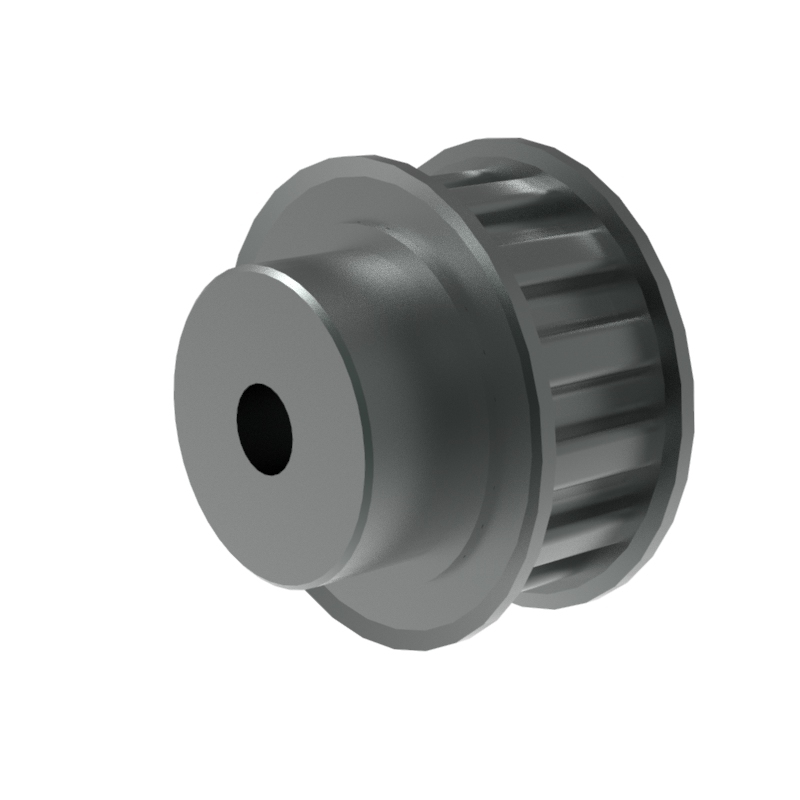

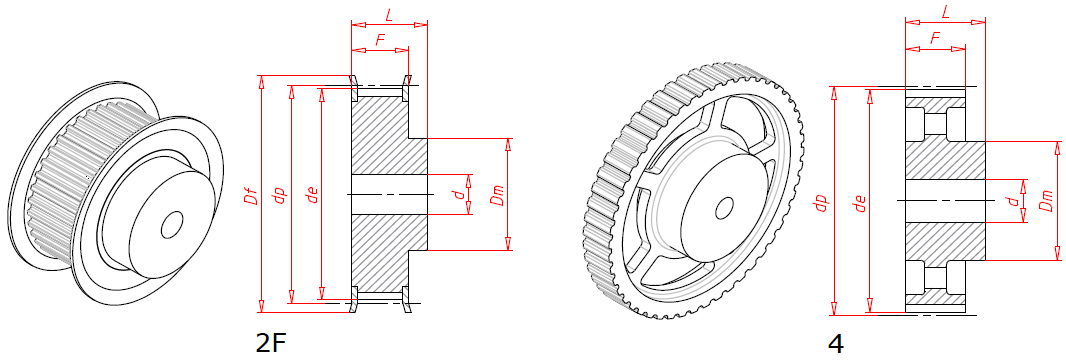

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc
				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
10 L 100	2F	St	10	30.32	29.56	36	20	31.8	45	8	300	0.17
11 L 100	2F	St	11	33.35	32.59	38	24	31.8	45	8	301	0.22
12 L 100	2F	St	12	36.38	35.62	42	24	31.8	45	8	302	0.26
13 L 100	2F	St	13	39.41	38.65	44	28	31.8	45	8	303	0.32
14 L 100	2F	St	14	42.44	41.68	48	28	31.8	45	10	304	0.35
15 L 100	2F	St	15	45.48	44.72	51	34	31.8	45	10	305	0.43
16 L 100	2F	St	16	48.51	47.75	54	36	31.8	45	10	306	0.50
17 L 100	2F	St	17	51.54	50.78	57	36	31.8	45	10	307	0.56
18 L 100	2F	St	18	54.57	53.81	60	40	31.8	45	10	308	0.64
19 L 100	2F	St	19	57.61	56.84	63	40	31.8	45	10	309	0.70
20 L 100	2F	St	20	60.64	59.88	66	40	31.8	45	10	310	0.77
21 L 100	2F	St	21	63.67	62.91	71	45	31.8	45	10	311	0.88
22 L 100	2F	St	22	66.70	65.94	75	45	31.8	45	12	312	0.95
23 L 100	2F	St	23	69.73	68.97	79	55	31.8	45	12	313	1.11
24 L 100	2F	St	24	72.77	72.00	79	55	31.8	45	12	313	1.18
25 L 100	2F	St	25	75.80	75.04	83	58	31.8	45	12	314	1.30
26 L 100	2F	St	26	78.83	78.07	87	58	31.8	45	12	315	1.40
27 L 100	2F	St	27	81.86	81.10	87	58	31.8	45	12	315	1.47
28 L 100	2F	St	28	84.89	84.13	91	58	31.8	45	12	316	1.58
30 L 100	2F	St	30	90.96	90.20	97	70	31.8	45	12	318	1.78
32 L 100	2F	St	32	97.03	96.26	103	70	31.8	45	12	320	2.11
33 L 100	2F	St	33	100.05	99.29	106	70	31.8	45	12	321	2.23
34 L 100	2F	St	34	103.08	102.32	111	70	31.8	45	12	322	2.39
35 L 100	2F	St	35	106.12	105.35	111	70	31.8	45	12	322	2.45
36 L 100	2F	St	36	109.15	108.39	115	70	31.8	45	12	323	2.59
40 L 100	2F	St	40	121.29	120.51	127	70	31.8	45	12	327	3.13
42 L 100	2F	St	42	127.34	126.58	135	70	31.8	45	12	328	3.43
44 L 100	2F	St	44	133.40	132.64	140	70	31.8	45	12	330	3.72
45 L 100	2F	St	45	136.44	135.67	143	70	31.8	45	12	331	3.89
48 L 100	2F	St	48	145.53	144.77	152	70	31.8	45	12	334	4.38

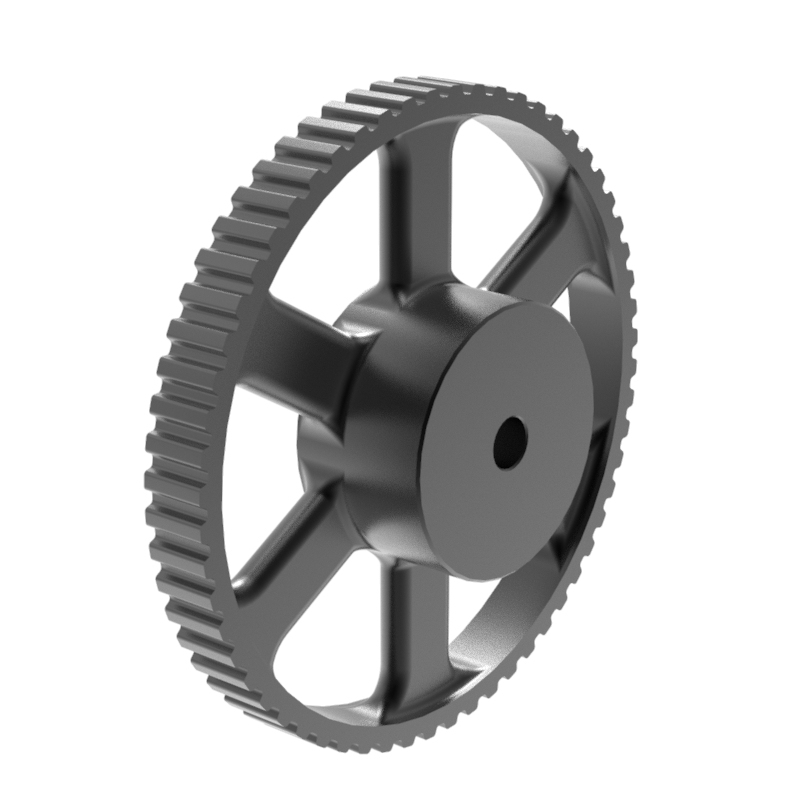

50 L 100	4	GG	50	151.60	150.83		70	31.8	45	14		2.41
52 L 100	4	GG	52	157.66	156.90		70	31.8	45	14		2.55
56 L 100	4	GG	56	169.79	169.02		70	31.8	45	14		2.65
57 L 100	4	GG	57	172.82	172.06		70	31.8	45	14		2.71
60 L 100	4	GG	60	181.91	181.15		75	31.8	45	14		3.11
72 L 100	4	GG	72	218.29	217.53		75	31.8	45	14		3.65
84 L 100	4	GG	84	254.68	253.92		75	31.8	45	14		4.12
96 L 100	4	GG	96	291.06	290.30		75	31.8	45	14		4.60
