| Catalog No. |
Type | Material | Teeth | Bush No. |
Bore max |
Pitch Dia |
Outer Dia |
Flange Dia |
Hub Dia |
Tooth width |
Total length |
Mass per pc |
|||

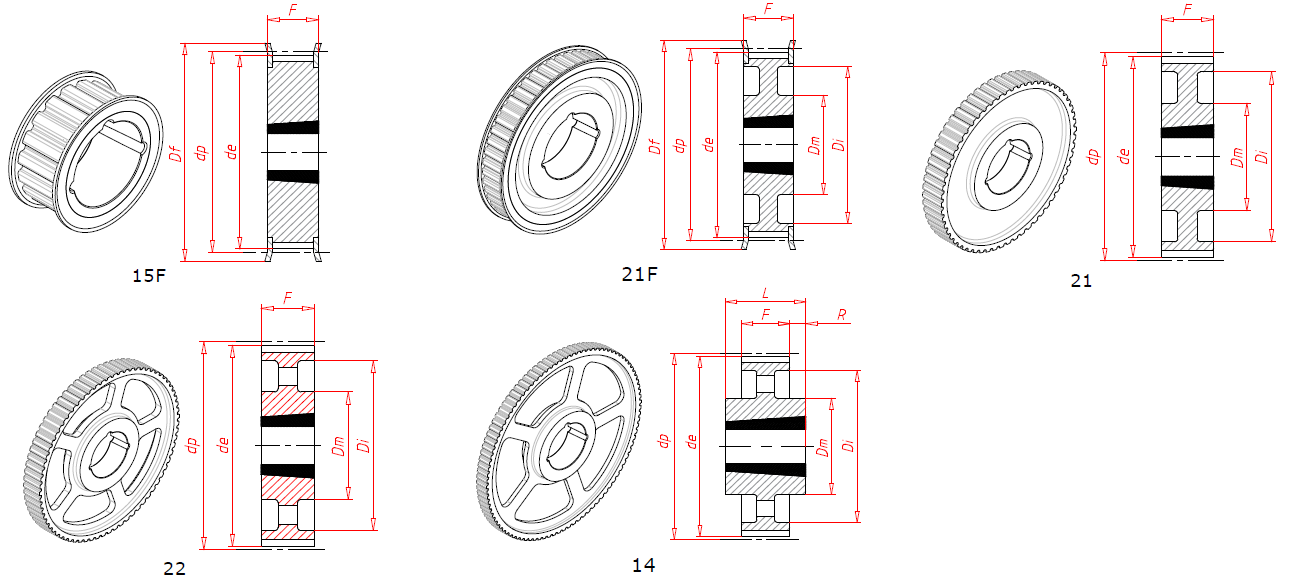

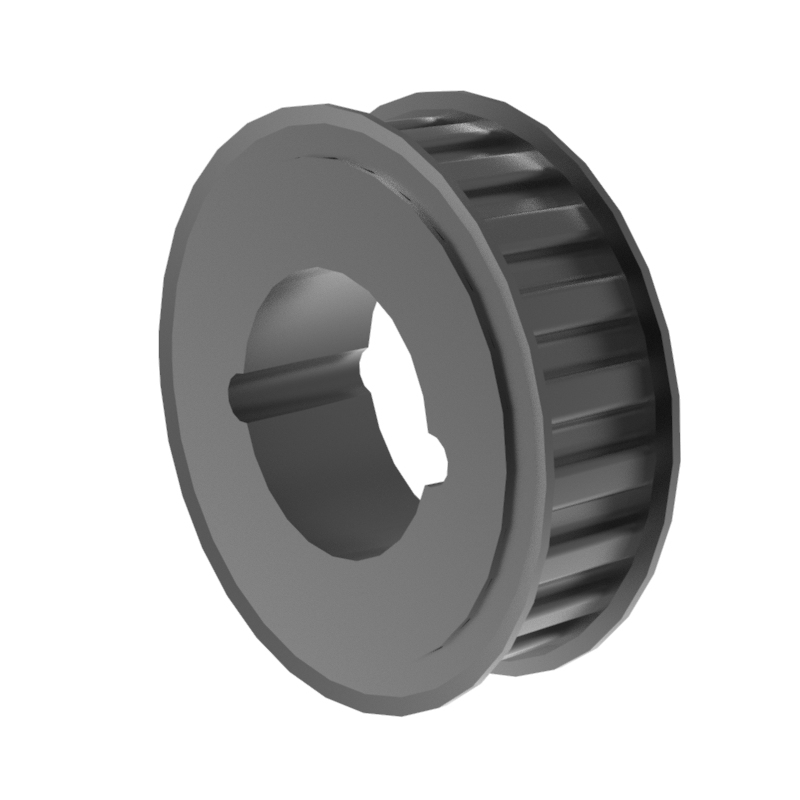

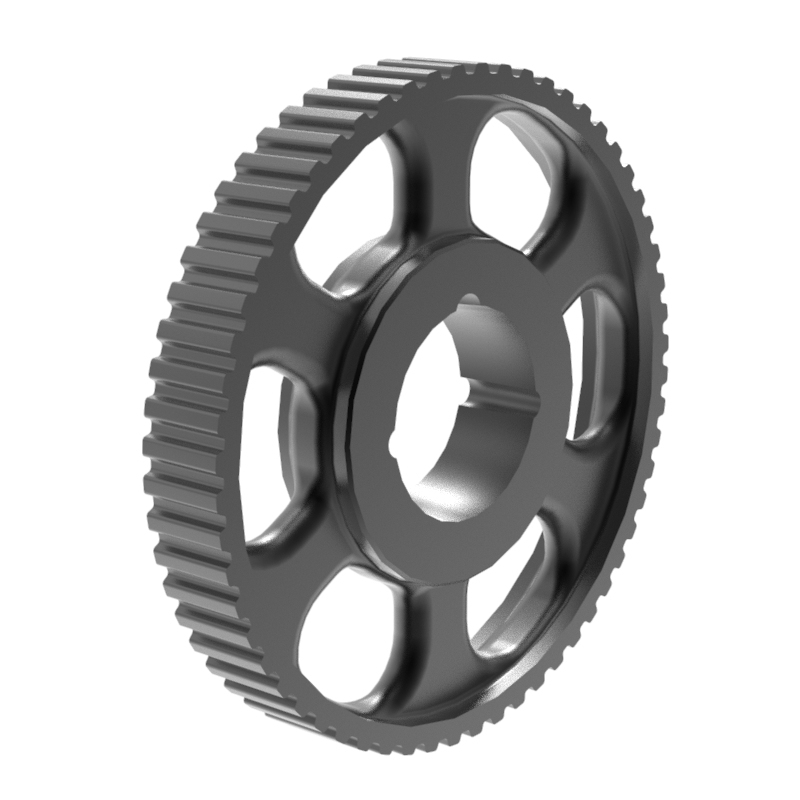

| dp | de | Df | Dm | Di | F | L | R | n ° flange |
(q≈) | ||||||
| mm | mm | mm | mm | mm | mm | mm | mm | ° | kg/pc | ||||||
| TL 18 L 075 | 15F | St | 18 | 1108 | 28 | 54.57 | 53.81 | 60 | 25.0 | 25.0 | 308 | 0.25 | |||
| TL 19 L 075 | 15F | St | 19 | 1108 | 28 | 57.61 | 56.84 | 63 | 25.0 | 25.0 | 309 | 0.32 | |||
| TL 20 L 075 | 15F | St | 20 | 1108 | 28 | 60.64 | 59.88 | 66 | 25.0 | 25.0 | 310 | 0.35 | |||
| TL 21 L 075 | 15F | St | 21 | 1108 | 28 | 63.67 | 62.91 | 71 | 25.0 | 25.0 | 311 | 0.40 | |||
| TL 22 L 075 | 15F | St | 22 | 1108 | 28 | 66.70 | 65.94 | 75 | 25.0 | 25.0 | 312 | 0.44 | |||
| TL 23 L 075 | 15F | St | 23 | 1108 | 28 | 69.73 | 68.97 | 79 | 25.0 | 25.0 | 313 | 0.48 | |||
| TL 24 L 075 | 15F | St | 24 | 1108 | 28 | 72.77 | 72.00 | 79 | 25.0 | 25.0 | 313 | 0.55 | |||
| TL 25 L 075 | 15F | St | 25 | 1108 | 28 | 75.80 | 75.04 | 83 | 25.0 | 25.0 | 314 | 0.63 | |||
| TL 26 L 075 | 15F | St | 26 | 1108 | 28 | 78.83 | 78.07 | 87 | 25.0 | 25.0 | 315 | 0.66 | |||
| TL 27 L 075 | 15F | St | 27 | 1108 | 28 | 81.86 | 81.10 | 87 | 25.0 | 25.0 | 315 | 0.70 | |||
| TL 28 L 075 | 15F | St | 28 | 1108 | 28 | 84.89 | 84.13 | 91 | 25.0 | 25.0 | 316 | 0.72 | |||
| TL 30 L 075 | 15F | St | 30 | 1108 | 28 | 90.96 | 90.20 | 97 | 25.0 | 25.0 | 318 | 0.93 | |||
| TL 32 L 075 | 15F | St | 32 | 1108 | 28 | 97.02 | 96.26 | 103 | 25.0 | 25.0 | 320 | 1.10 | |||
| TL 36 L 075 | 15F | St | 36 | 1610 | 42 | 109.15 | 108.39 | 115 | 25.0 | 25.0 | 323 | 1.20 | |||
| TL 40 L 075 | 15F | St | 40 | 1610 | 42 | 121.28 | 120.51 | 127 | 25.0 | 25.0 | 327 | 1.70 | |||
| TL 48 L 075 | 21F | St | 48 | 1610 | 42 | 145.53 | 144.77 | 152 | 92 | 120 | 25.0 | 25.0 | 334 | 2.60 | |
| TL 60 L 075 | 21 | St | 60 | 1610 | 42 | 181.91 | 181.15 | 92 | 166 | 25.0 | 25.0 | 3.00 | |||
| TL 72 L 075 | 22 | GG | 72 | 1610 | 42 | 218.30 | 217.53 | 92 | 202 | 25.0 | 25.0 | 2.33 | |||
| TL 84 L 075 | 14 | GG | 84 | 2012 | 50 | 254.68 | 253.90 | 106 | 236 | 25.0 | 32.0 | 3.5 | 3.55 | ||
| TL 96 L 075 | 14 | GG | 96 | 2012 | 50 | 291.06 | 290.30 | 106 | 270 | 25.0 | 32.0 | 3.5 | 3.95 | ||
| TL 120 L 075 | 14 | GG | 120 | 2012 | 50 | 363.83 | 363.07 | 106 | 343 | 25.0 | 32.0 | 3.5 | 5.61 |
