L075

Description

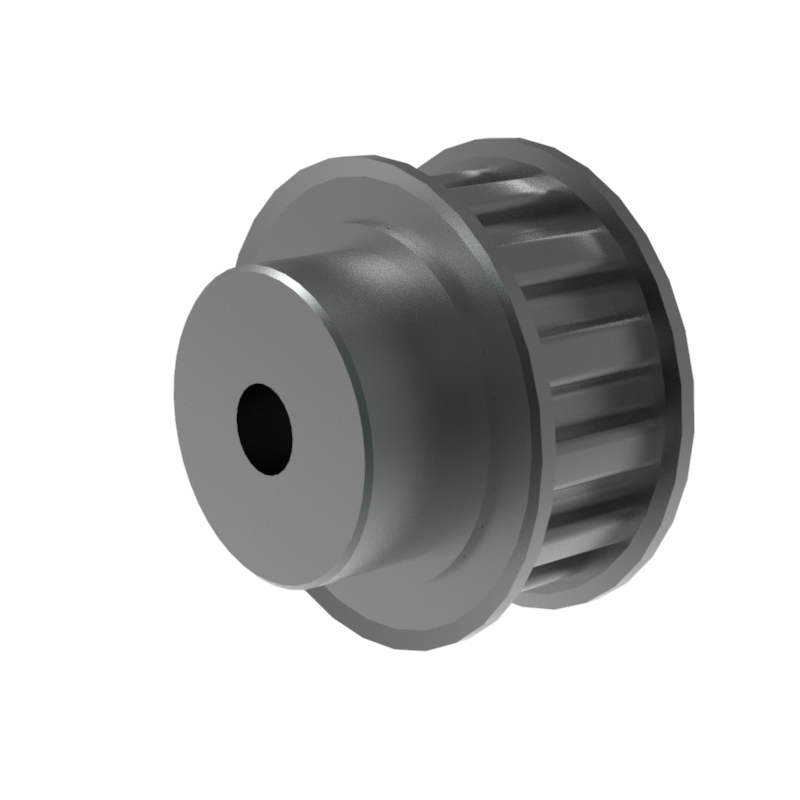

Timing Pulley |MXL/XL/L/H/XH|pilot bore
L 075
Pitch: 3/8” (9,525 mm)
FOR 3/4” (19,05 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc

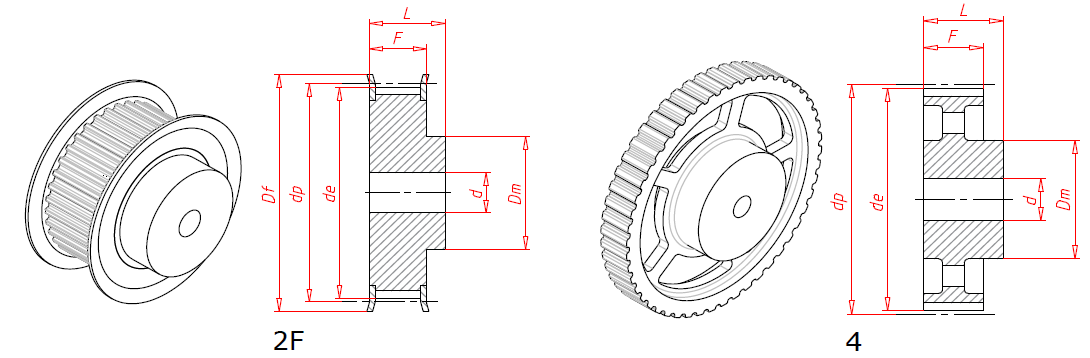

				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc
10 L 075	2F	St	10	30.32	29.56	36	20	25.4	38	8	300	0.14
11 L 075	2F	St	11	33.35	32.59	38	24	25.4	38	8	301	0.18
12 L 075	2F	St	12	36.38	35.62	42	24	25.4	38	8	302	0.22
13 L 075	2F	St	13	39.41	38.65	44	28	25.4	38	8	303	0.26
14 L 075	2F	St	14	42.44	41.68	48	28	25.4	38	8	304	0.30
15 L 075	2F	St	15	45.48	44.72	51	34	25.4	38	8	305	0.37
16 L 075	2F	St	16	48.51	47.75	54	36	25.4	38	8	306	0.43
17 L 075	2F	St	17	51.54	50.78	57	36	25.4	38	10	307	0.46
18 L 075	2F	St	18	54.57	53.81	60	40	25.4	38	10	308	0.54
19 L 075	2F	St	19	57.61	56.84	63	40	25.4	38	10	309	0.58
20 L 075	2F	St	20	60.64	59.88	66	40	25.4	38	10	310	0.64
21 L 075	2F	St	21	63.67	62.91	71	45	25.4	38	10	311	0.71
22 L 075	2F	St	22	66.70	65.94	75	45	25.4	38	10	312	0.79
23 L 075	2F	St	23	69.73	68.97	79	55	25.4	38	10	313	0.94
24 L 075	2F	St	24	72.77	72.00	79	55	25.4	38	10	313	1.00
25 L 075	2F	St	25	75.80	75.04	83	58	25.4	38	10	314	1.10
26 L 075	2F	St	26	78.83	78.07	87	58	25.4	38	12	315	1.16
27 L 075	2F	St	27	81.86	81.10	87	58	25.4	38	12	315	1.22
28 L 075	2F	St	28	84.89	84.13	91	58	25.4	38	12	316	1.30
30 L 075	2F	St	30	90.96	90.20	97	70	25.4	38	12	318	1.47
32 L 075	2F	St	32	97.03	96.26	103	70	25.4	38	12	320	1.75
33 L 075	2F	St	33	100.05	99.29	106	70	25.4	38	12	321	1.85
34 L 075	2F	St	34	103.08	102.32	111	70	25.4	38	12	322	1.93
35 L 075	2F	St	35	106.12	105.35	111	70	25.4	38	12	322	2.03
36 L 075	2F	St	36	109.15	108.39	115	70	25.4	38	12	323	2.14
40 L 075	2F	St	40	121.29	120.51	127	70	25.4	38	12	327	2.56
42 L 075	2F	St	42	127.34	126.58	135	70	25.4	38	12	328	2.81
44 L 075	2F	St	44	133.40	132.64	140	70	25.4	38	12	330	3.02
45 L 075	2F	St	45	136.44	135.67	143	70	25.4	38	12	331	3.16
48 L 075	2F	St	48	145.53	144.77	152	70	25.4	38	12	334	3.57

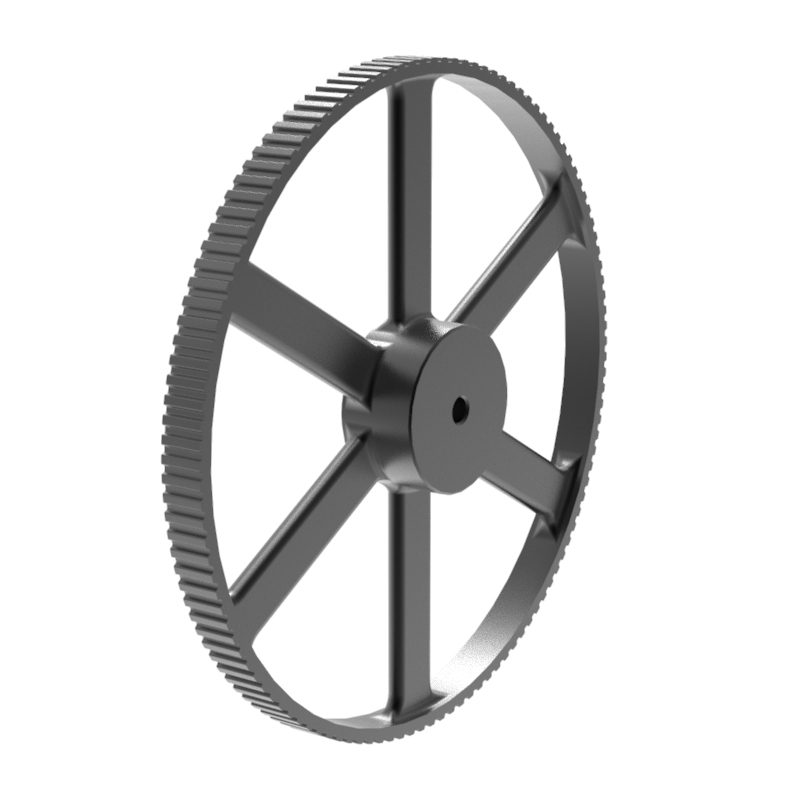

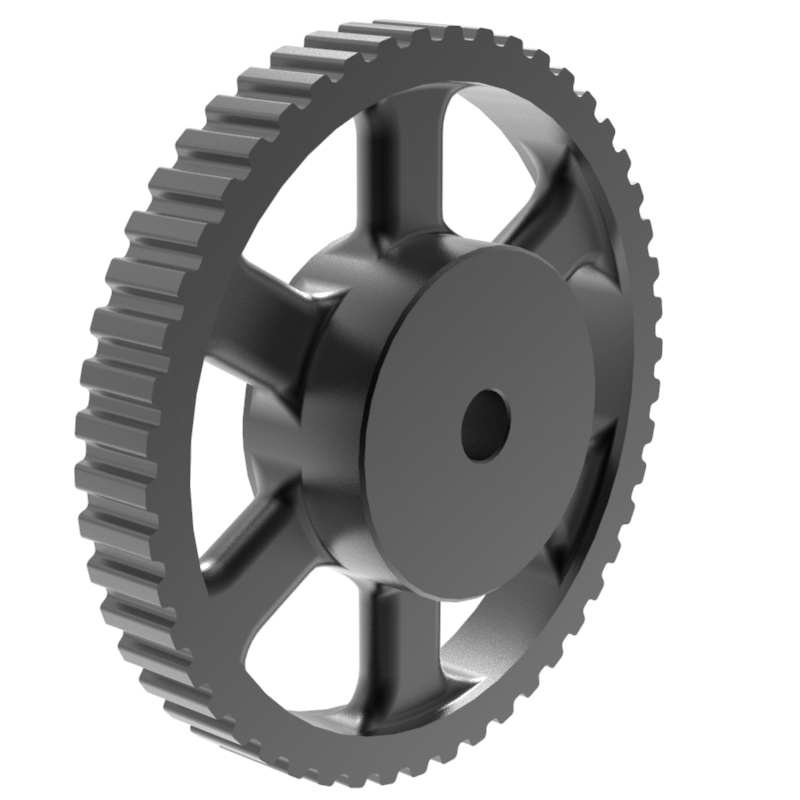

50 L 075	4	GG	50	151.60	150.83		70	25.4	38	14		2.10
52 L 075	4	GG	52	157.66	156.90		70	25.4	38	14		2.13
56 L 075	4	GG	56	169.79	169.02		70	25.4	38	14		2.27
57 L 075	4	GG	57	172.82	172.06		70	25.4	38	14		2.28
60 L 075	4	GG	60	181.91	181.15		75	25.4	45	14		2.70
72 L 075	4	GG	72	218.29	217.53		75	25.4	45	14		3.19
84 L 075	4	GG	84	254.68	253.92		75	25.4	45	14		3.64
96 L 075	4	GG	96	291.06	290.30		75	25.4	45	14		4.04
