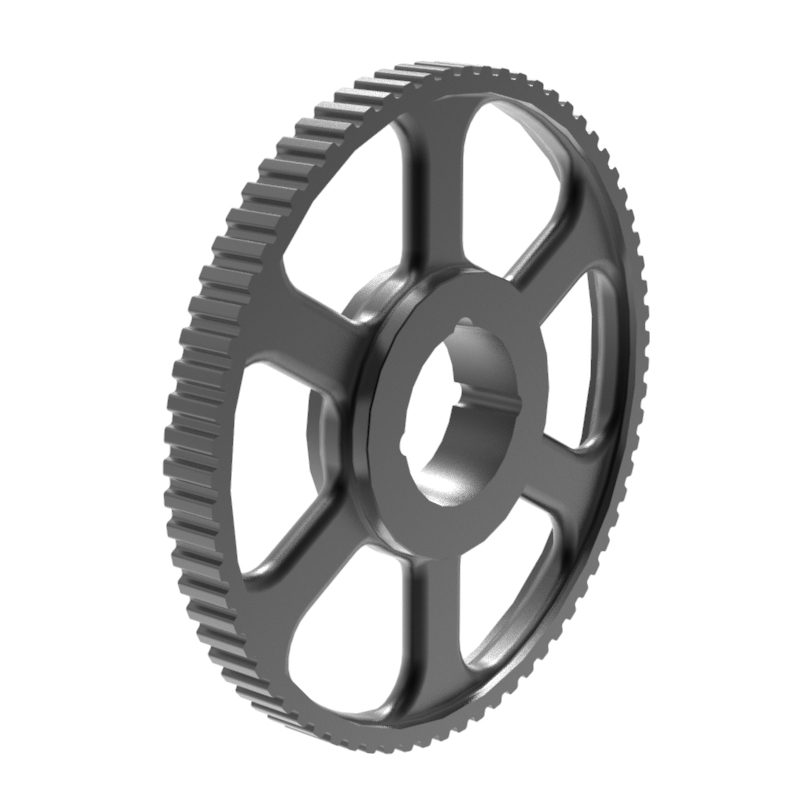

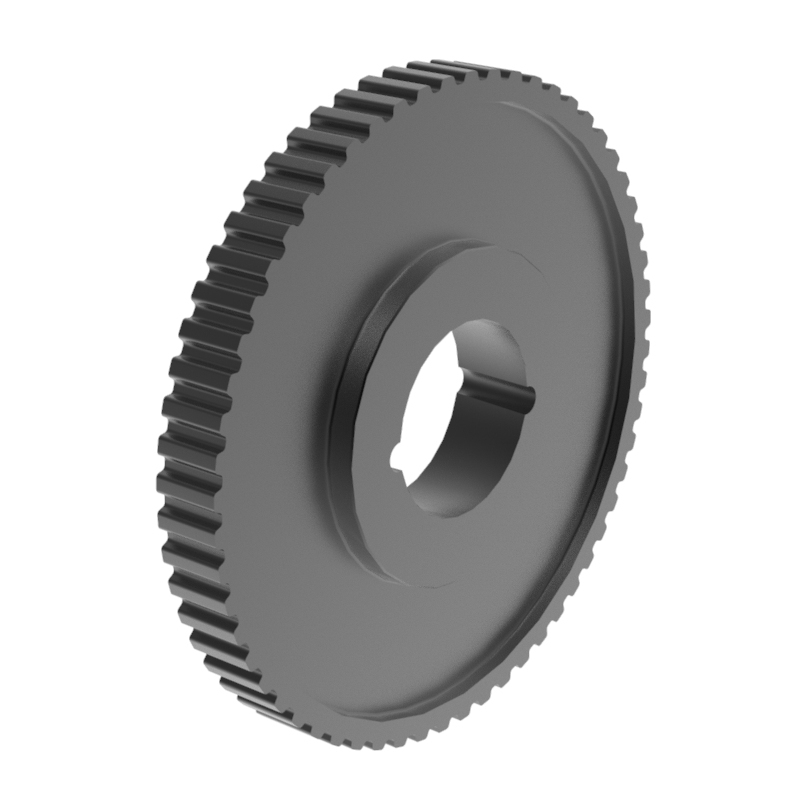

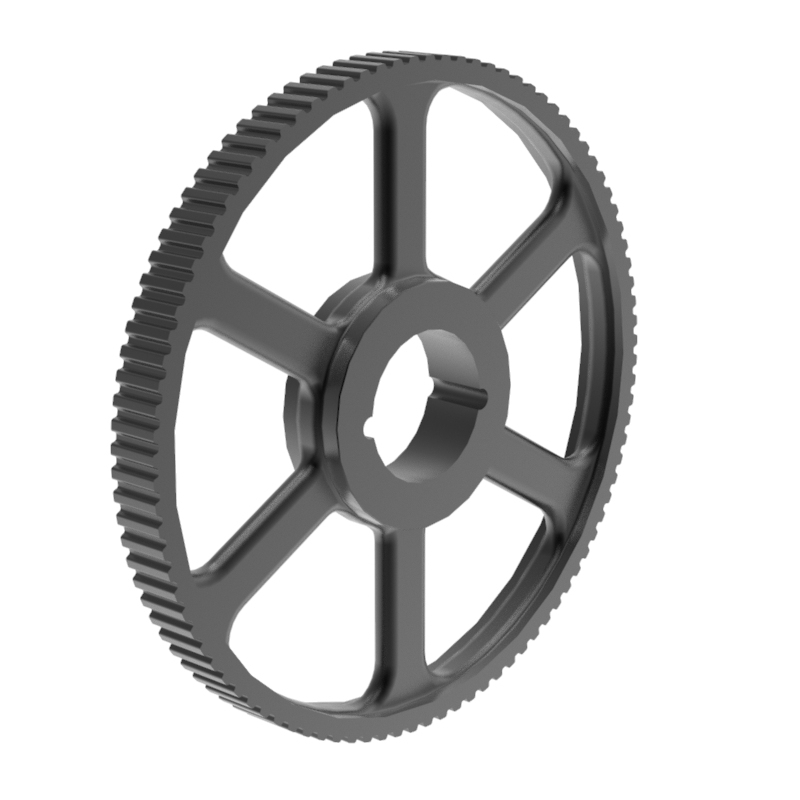

L050

No.TB L050

Steel UNI C45 Cast iron GG25 UNI 5007 Bore Type:Taper Bore PITCH=3/8"(9.525mm)

GET A QUOTE

Description

Timing Pulley |L/H|Taper Bore
L 050
Pitch: 3/8” (9,525 mm)
FOR 1/2” (12,7 mm) WIDTH BELTS

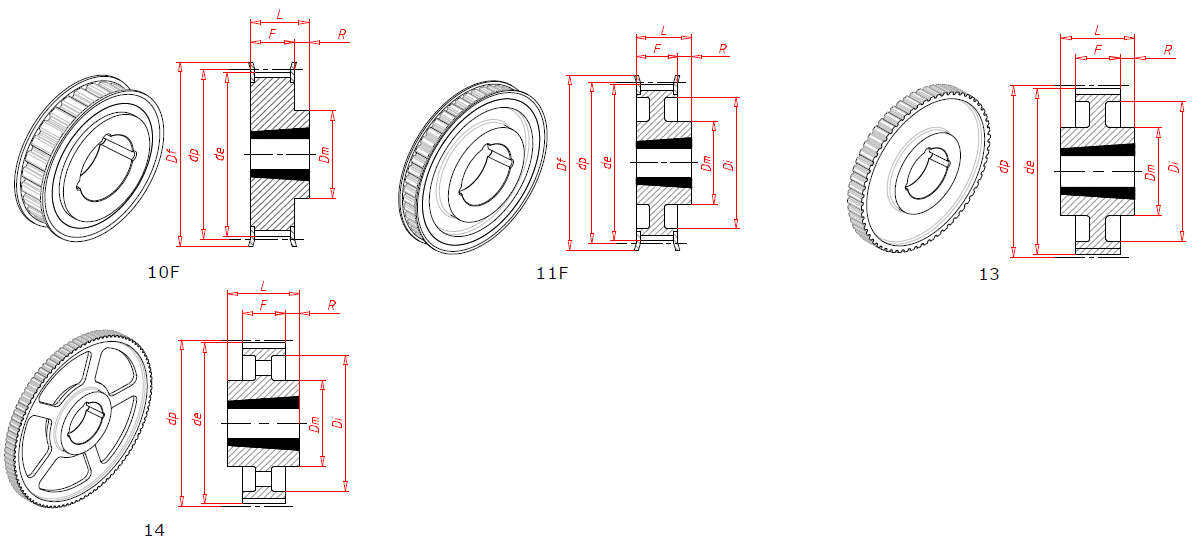

Catalog No.	Type	Material	Teeth	Bush No.	Bore max	Pitch Dia	Outer Dia	Flange Dia	Hub Dia		Tooth width	Total length			Mass per pc
						dp	de	Df	Dm	Di	F	L	R	n ° flange	(q≈)
						mm	mm	mm	mm	mm	mm	mm	mm	°	kg/pc
TL 18 L 050	10F	St	18	1108	28	54.57	53.81	60	45		19.0	22.0	3.0	308	0.20
TL 19 L 050	10F	St	19	1108	28	57.61	56.84	63	45		19.0	22.0	3.0	309	0.23
TL 20 L 050	10F	St	20	1108	28	60.64	59.88	66	48		19.0	22.0	3.0	310	0.27
TL 21 L 050	10F	St	21	1108	28	63.67	62.91	71	48		19.0	22.0	3.0	311	0.30
TL 22 L 050	10F	St	22	1108	28	66.70	65.94	75	51		19.0	22.0	3.0	312	0.34
TL 23 L 050	10F	St	23	1108	28	69.73	68.97	79	54		19.0	22.0	3.0	313	0.40
TL 24 L 050	10F	St	24	1108	28	72.77	72.00	79	54		19.0	22.0	3.0	313	0.45
TL 25 L 050	10F	St	25	1108	28	75.80	75.04	83	56		19.0	22.0	3.0	314	0.50
TL 26 L 050	10F	St	26	1108	28	78.83	78.07	87	60		19.0	22.0	3.0	315	0.55
TL 27 L 050	10F	St	27	1108	28	81.86	81.10	87	62		19.0	22.0	3.0	315	0.60
TL 28 L 050	10F	St	28	1108	28	84.89	84.13	91	65		19.0	22.0	3.0	316	0.65
TL 30 L 050	10F	St	30	1108	28	90.96	90.20	97	70		19.0	22.0	3.0	318	0.80
TL 32 L 050	10F	St	32	1108	28	97.02	96.26	103	74		19.0	22.0	3.0	320	0.98
TL 36 L 050	10F	St	36	1108	28	109.15	108.39	115	85		19.0	22.0	3.0	323	1.20
TL 40 L 050	10F	St	40	1610	42	121.28	120.51	127	97		19.0	25.0	6.0	327	1.40
TL 48 L 050	11F	St	48	1610	42	145.53	144.77	152	88	120	19.0	25.0	6.0	334	2.30
TL 60 L 050	13	St	60	1610	42	181.91	181.15		92	166	19.0	25.0	3.0		2.20
TL 72 L 050	14	GG	72	1610	42	218.30	217.53		92	202	19.0	25.0	3.0		2.10
TL 84 L 050	14	GG	84	1610	42	254.68	253.90		92	236	19.0	25.0	3.0		2.46
TL 96 L 050	14	GG	96	2012	50	291.06	290.30		106	270	19.0	32.0	6.5		3.36
TL 120 L 050	14	GG	120	2012	50	363.83	363.07		106	343	19.0	32.0	6.5		4.44
