Timing Pulley |MXL/XL/L/H/XH|pilot bore
L 050
Pitch: 3/8” (9,525 mm)
FOR 1/2” (12,7 mm) WIDTH BELTS

Catalog No.	Type	Material	Teeth	Pitch Dia	Outer Dia	Flange Dia	Hub Dia	Tooth width	Total length	Bore Dia	n ° flange	Mass per pc

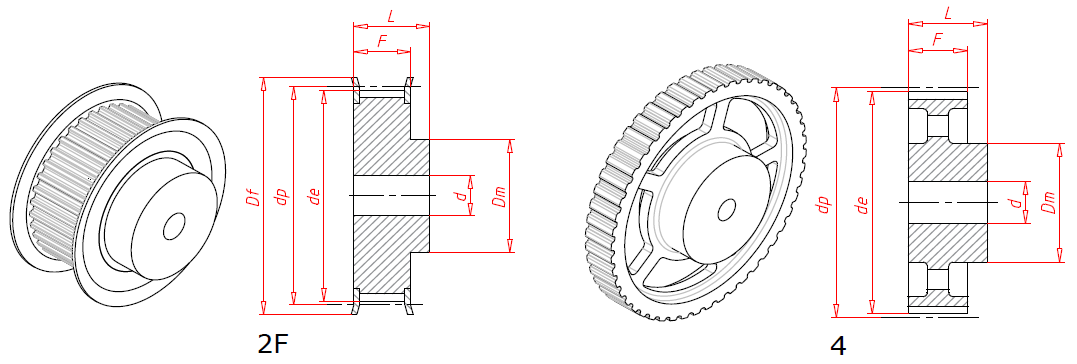

				dp	de	Df	Dm	F	L	d	n ° flange	(q≈)
				mm	mm	mm	mm	mm	mm	mm	°	kg/pc

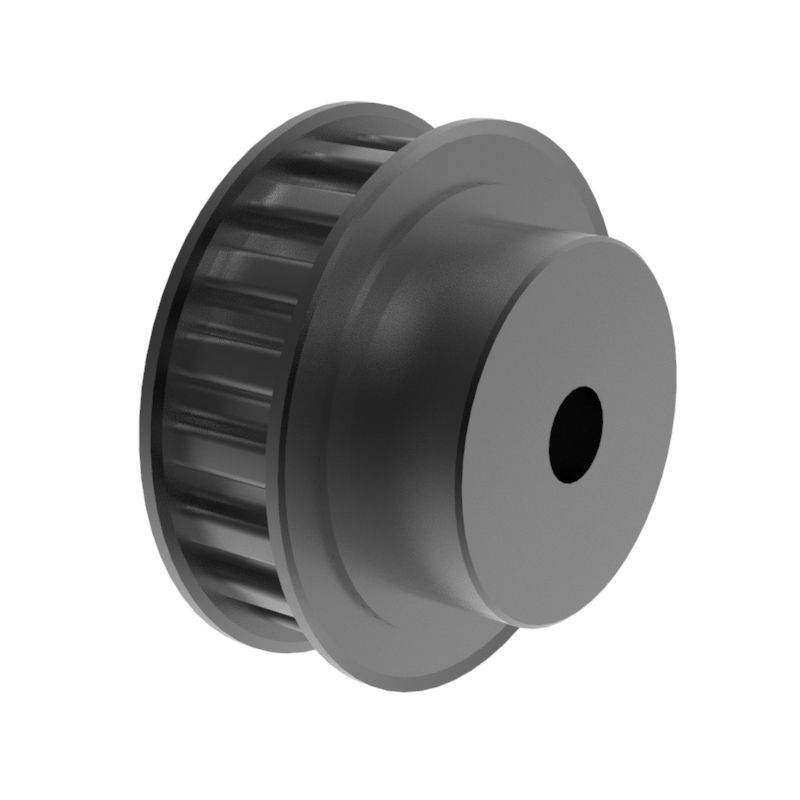

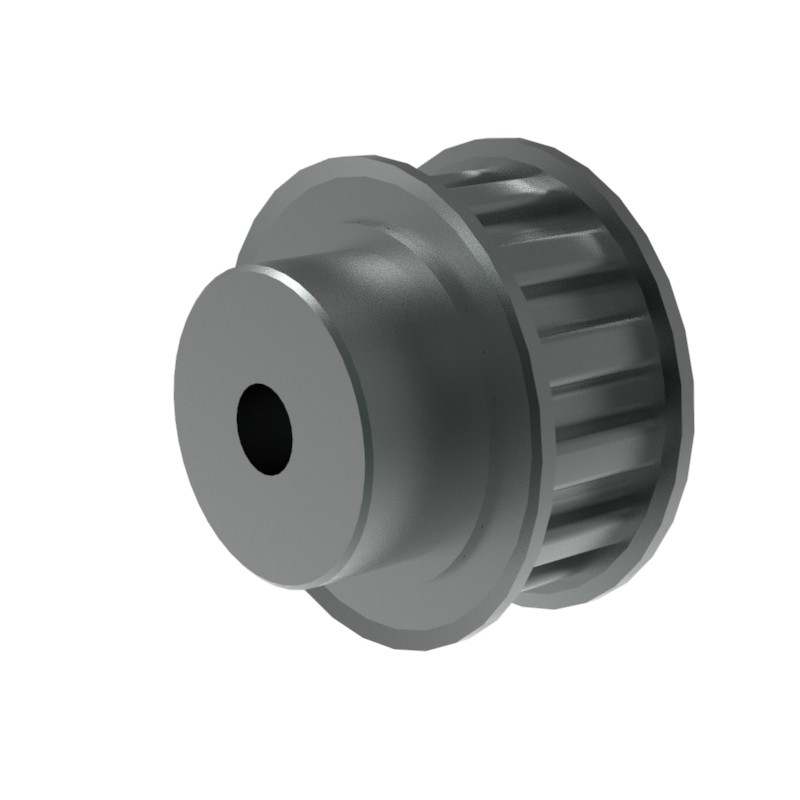

10 L 050	2F	St	10	30.32	29.56	36	20	19.0	28	8	300	0.11
11 L 050	2F	St	11	33.35	32.59	38	24	19.0	30	8	301	0.14
12 L 050	2F	St	12	36.38	35.62	42	24	19.0	30	8	302	0.17
13 L 050	2F	St	13	39.41	38.65	44	28	19.0	30	8	303	0.21
14 L 050	2F	St	14	42.44	41.68	48	28	19.0	30	8	304	0.24
15 L 050	2F	St	15	45.48	44.72	51	34	19.0	30	8	305	0.29
16 L 050	2F	St	16	48.51	47.75	54	36	19.0	32	8	306	0.33
17 L 050	2F	St	17	51.54	50.78	57	36	19.0	32	10	307	0.38
18 L 050	2F	St	18	54.57	53.81	60	40	19.0	32	10	308	0.44
19 L 050	2F	St	19	57.61	56.84	63	40	19.0	32	10	309	0.47
20 L 050	2F	St	20	60.64	59.88	66	40	19.0	32	10	310	0.51
21 L 050	2F	St	21	63.67	62.91	71	45	19.0	32	10	311	0.60
22 L 050	2F	St	22	66.70	65.94	75	45	19.0	32	10	312	0.64
23 L 050	2F	St	23	69.73	68.97	79	55	19.0	32	10	313	0.78
24 L 050	2F	St	24	72.77	72.00	79	55	19.0	32	10	313	0.81
25 L 050	2F	St	25	75.80	75.04	83	58	19.0	32	10	314	0.89
26 L 050	2F	St	26	78.83	78.07	87	58	19.0	32	12	315	0.94
27 L 050	2F	St	27	81.86	81.10	87	58	19.0	32	12	315	0.99
28 L 050	2F	St	28	84.89	84.13	91	58	19.0	32	12	316	1.04
30 L 050	2F	St	30	90.96	90.20	97	70	19.0	32	12	318	1.27
32 L 050	2F	St	32	97.03	96.26	103	70	19.0	32	12	320	1.41
33 L 050	2F	St	33	100.05	99.29	106	70	19.0	32	12	321	1.49
34 L 050	2F	St	34	103.08	102.32	111	70	19.0	32	12	322	1.57
35 L 050	2F	St	35	106.12	105.35	111	70	19.0	32	12	322	1.62
36 L 050	2F	St	36	109.15	108.39	115	70	19.0	32	12	323	1.70
40 L 050	2F	St	40	121.29	120.51	127	70	19.0	32	12	327	2.03
42 L 050	2F	St	42	127.34	126.58	135	70	19.0	32	12	328	2.21
44 L 050	2F	St	44	133.40	132.64	140	70	19.0	32	12	330	2.38
45 L 050	2F	St	45	136.44	135.67	143	70	19.0	32	12	331	2.48
48 L 050	2F	St	48	145.53	144.77	152	70	19.0	32	12	334	2.78

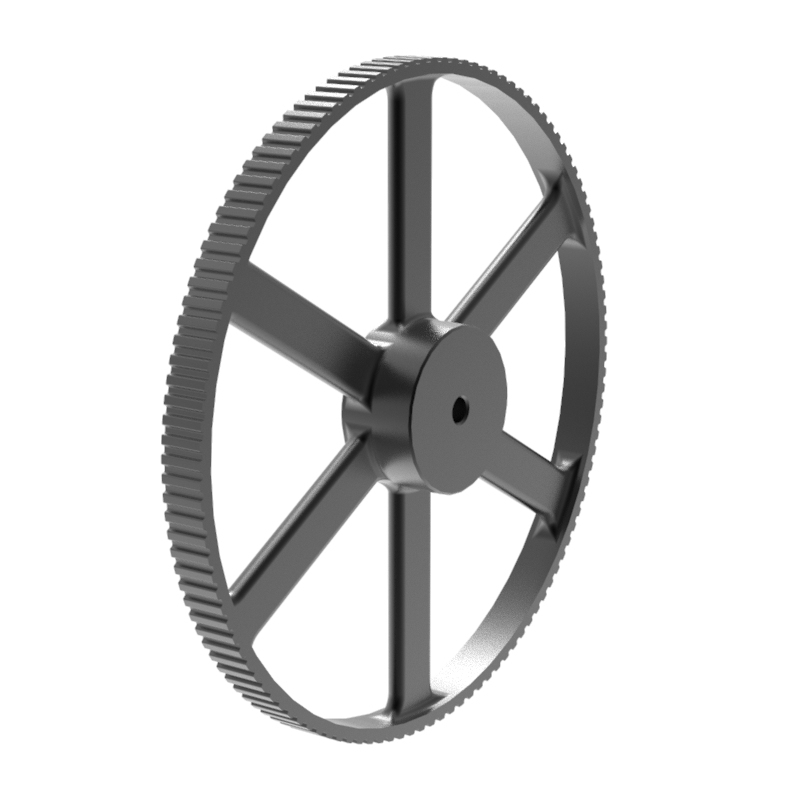

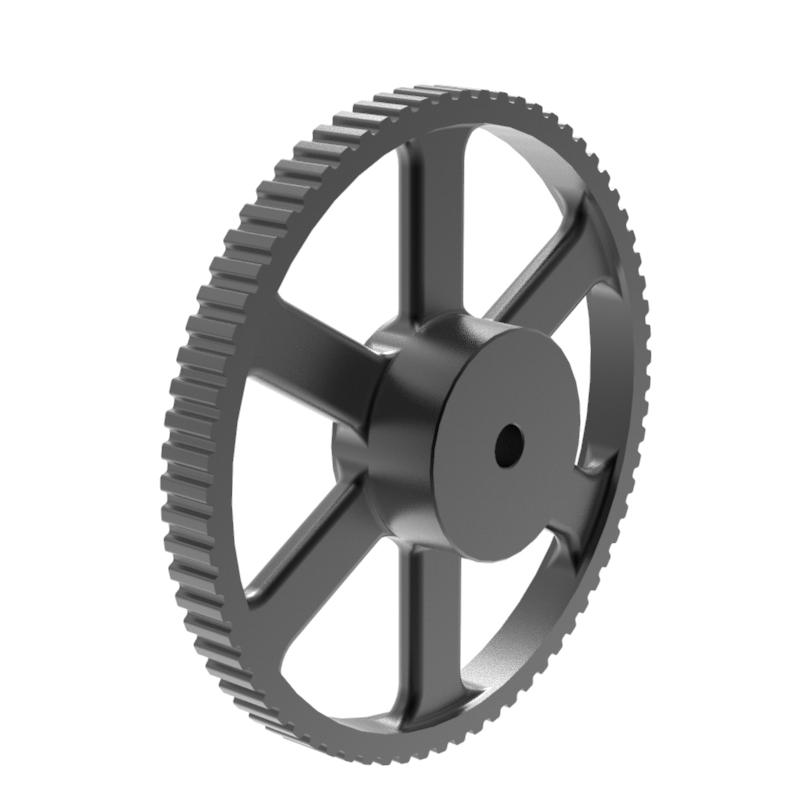

50 L 050	4	GG	50	151.60	150.83		70	19.0	32	14		1.74
52 L 050	4	GG	52	157.66	156.90		70	19.0	32	14		1.80
56 L 050	4	GG	56	169.79	169.02		70	19.0	32	14		1.87
57 L 050	4	GG	57	172.82	172.06		70	19.0	32	14		1.88
60 L 050	4	GG	60	181.91	181.15		75	19.0	42	14		2.41
72 L 050	4	GG	72	218.29	217.53		75	19.0	42	14		2.82
84 L 050	4	GG	84	254.68	253.92		75	19.0	42	14		3.08
96 L 050	4	GG	96	291.06	290.30		75	19.0	42	14		3.42
