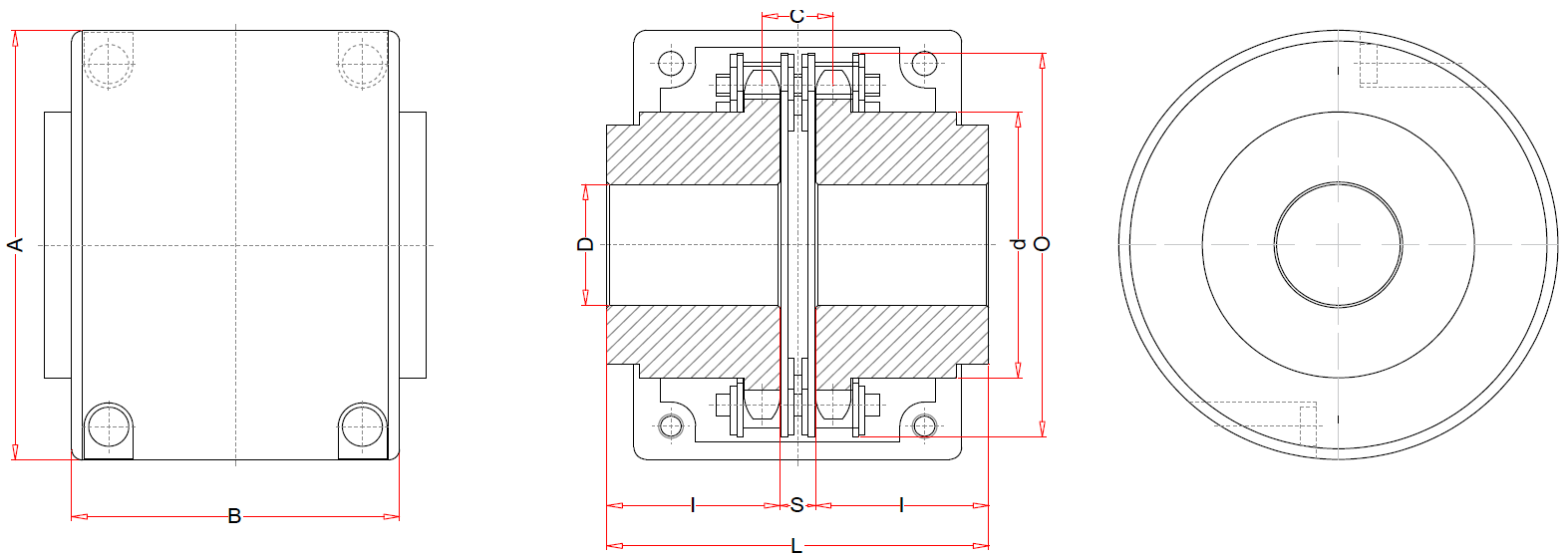

| Chain coupling No. | Chain No. | D | Dimension | Inertia | Approx weight | Casing | ||||||||
| Bore Dia | ||||||||||||||
| Min | Max | L | I | S | d | O | C | ×10-3 | A | B | Approx weight | |||
| mm | mm | mm | mm | mm | mm | mm | mm | kgf·m2 | kg | mm | mm | kg | ||
| KC3012 | 06B-2X12 | 12 | 16 | 64.8 | 29.8 | 5.2 | 25 | 45 | 10.2 | 0.233 | 0.4 | 69 | 63 | 0.3 |
| KC4012 | 40-2X12 | 12 | 22 | 79.4 | 36.0 | 7.4 | 35 | 61 | 14.4 | 1.020 | 0.8 | 77 | 72 | 0.3 |
| KC4014 | 40-2X14 | 12 | 28 | 79.4 | 36.0 | 7.4 | 43 | 69 | 14.4 | 1.924 | 1.1 | 84 | 75 | 0.4 |
| KC4016 | 40-2X16 | 14 | 32 | 87.4 | 40.0 | 7.4 | 50 | 77 | 14.4 | 3.285 | 1.4 | 92 | 75 | 0.4 |
| KC5014 | 50-2X14 | 16 | 35 | 99.7 | 45.0 | 9.7 | 53 | 86 | 18.1 | 6.010 | 2.2 | 101 | 85 | 0.5 |
| KC5016 | 50-2X16 | 16 | 40 | 99.7 | 45.0 | 9.7 | 60 | 96 | 18.1 | 9.720 | 2.7 | 111 | 85 | 0.6 |
| KC5018 | 50-2X18 | 16 | 45 | 99.7 | 45.0 | 9.7 | 70 | 106 | 18.1 | 15.420 | 3.8 | 122 | 85 | 0.8 |
| KC6018 | 60-2X18 | 20 | 56 | 123.5 | 56.0 | 11.5 | 85 | 128 | 22.8 | 40.210 | 6.2 | 142 | 106 | 1.2 |
| KC6020 | 60-2X20 | 20 | 60 | 123.5 | 56.0 | 11.5 | 98 | 140 | 22.8 | 62.870 | 7.8 | 158 | 105 | 1.6 |
| KC6022 | 60-2X22 | 20 | 71 | 123.5 | 56.0 | 11.5 | 110 | 152 | 22.8 | 93.450 | 10.4 | 168 | 117 | 1.8 |
| KC8018 | 80-2X18 | 20 | 80 | 141.2 | 63.0 | 15.2 | 110 | 170 | 29.3 | 142.030 | 12.7 | 190 | 129 | 2.5 |
| KC8020 | 80-2X20 | 20 | 90 | 145.2 | 65.0 | 15.2 | 120 | 186 | 29.3 | 204.900 | 16.0 | 210 | 137 | 2.9 |
| KC8022 | 80-2X22 | 20 | 100 | 157.2 | 71.0 | 15.2 | 140 | 202 | 29.3 | 341.170 | 20.2 | 226 | 137 | 3.6 |
| KC10020 | 100-2X20 | 25 | 110 | 178.8 | 80.0 | 18.8 | 160 | 233 | 35.8 | 646.290 | 33.0 | 281 | 153 | 4.6 |
| KC12018 | 120-2X18 | 35 | 125 | 202.7 | 90.0 | 22.7 | 170 | 256 | 45.4 | 1075.710 | 47.0 | 307 | 181 | 6.2 |
| KC12022 | 120-2X22 | 35 | 140 | 222.7 | 100.0 | 22.7 | 210 | 304 | 45.4 | 2454.500 | 72.0 | 357 | 181 | 8.0 |
| KC16018 | 160-2X18 | 63 | 160 | 254.1 | 112.0 | 30.1 | 224 | 341 | 58.5 | 4190.800 | 108.0 | 375 | 240 | |
| KC16022 | 160-2X22 | 80 | 200 | 310.1 | 140.0 | 30.1 | 280 | 405 | 58.5 | 9998.000 | 187.0 | 440 | 245 | |
| KC 20018 | 200-2X18 | 82 | 205 | 437.5 | 200.0 | 37.5 | 289 | 425 | 71.6 | 286.0 | 465 | 285 | ||
| KC 20022 | 200-2X22 | 100 | 255 | 477.5 | 220.0 | 37.5 | 363 | 506 | 71.6 | 440.0 | 545 | 300 | ||
| KC 24022 | 240-2X22 | 120 | 310 | 650.0 | 302.5 | 45.0 | 448 | 607 | 87.8 | 869.0 | 650 | 340 | ||
| KC 24026 | 240-2X26 | 150 | 360 | 700.0 | 327.5 | 45.0 | 526 | 704 | 87.8 | 1260.0 | 745 | 350 | ||
