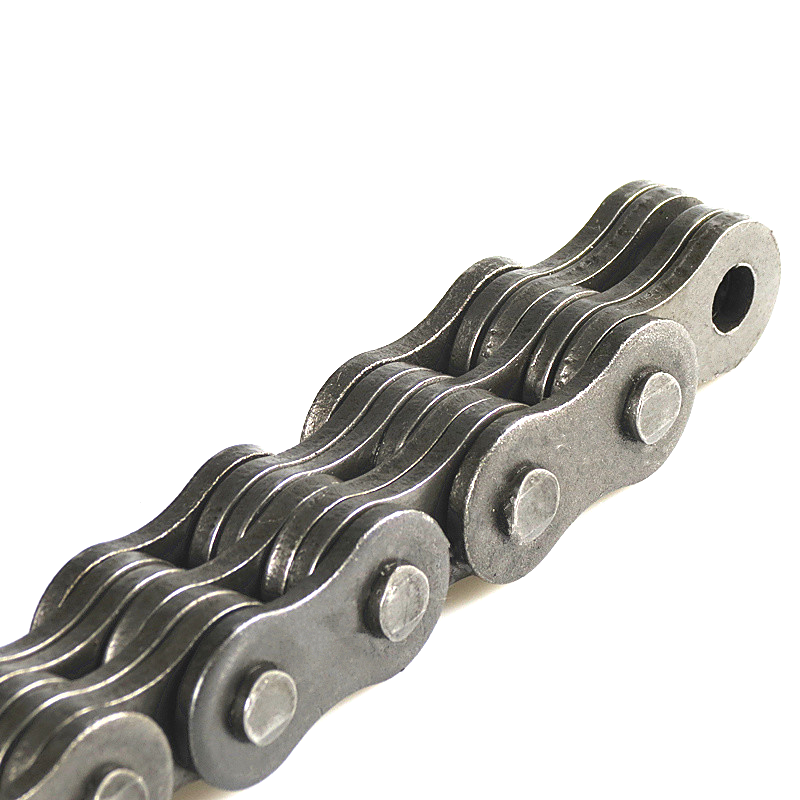

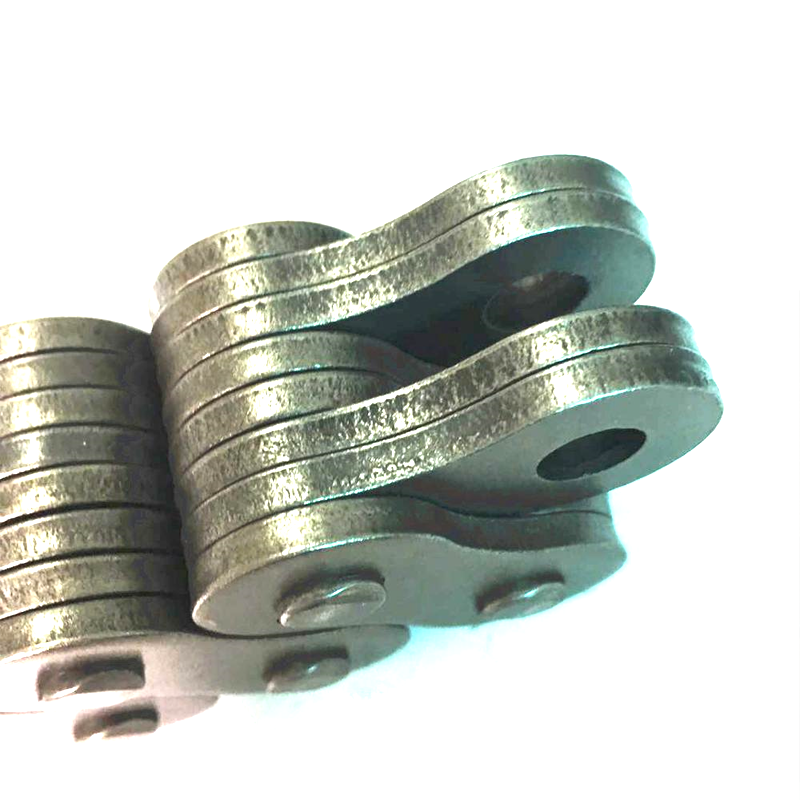

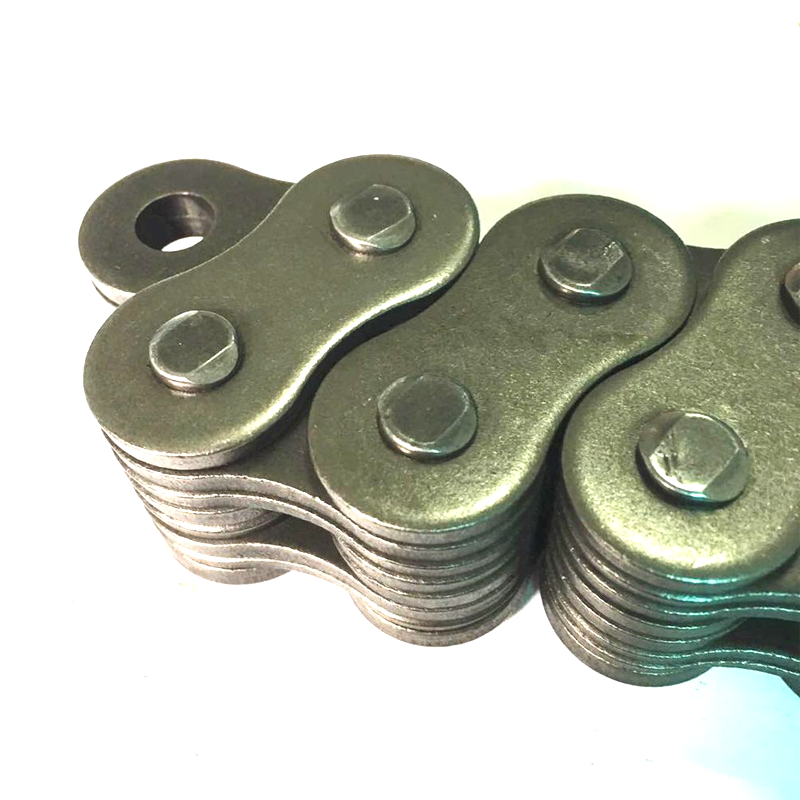

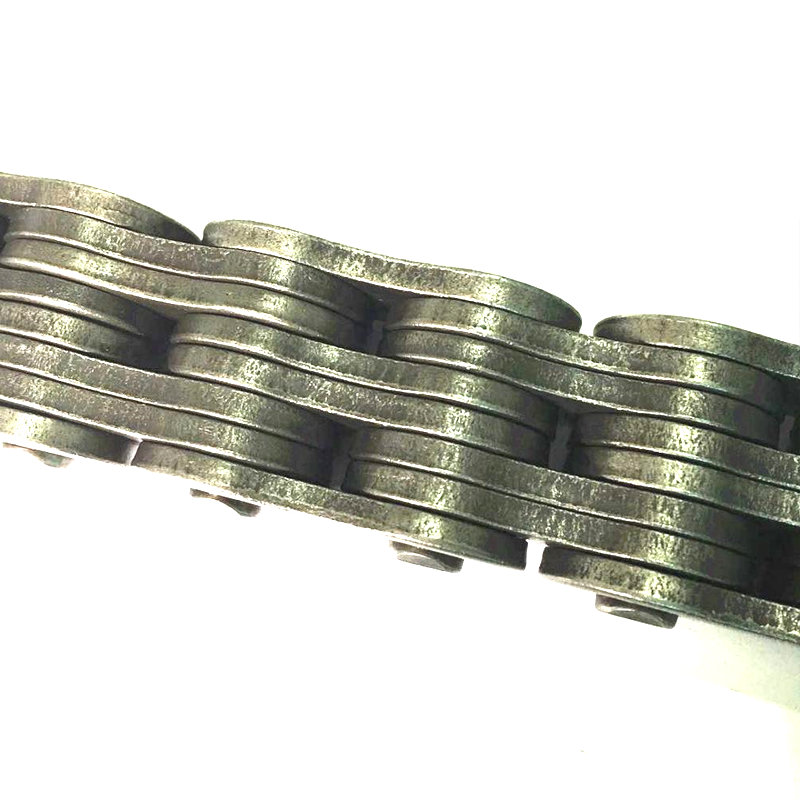

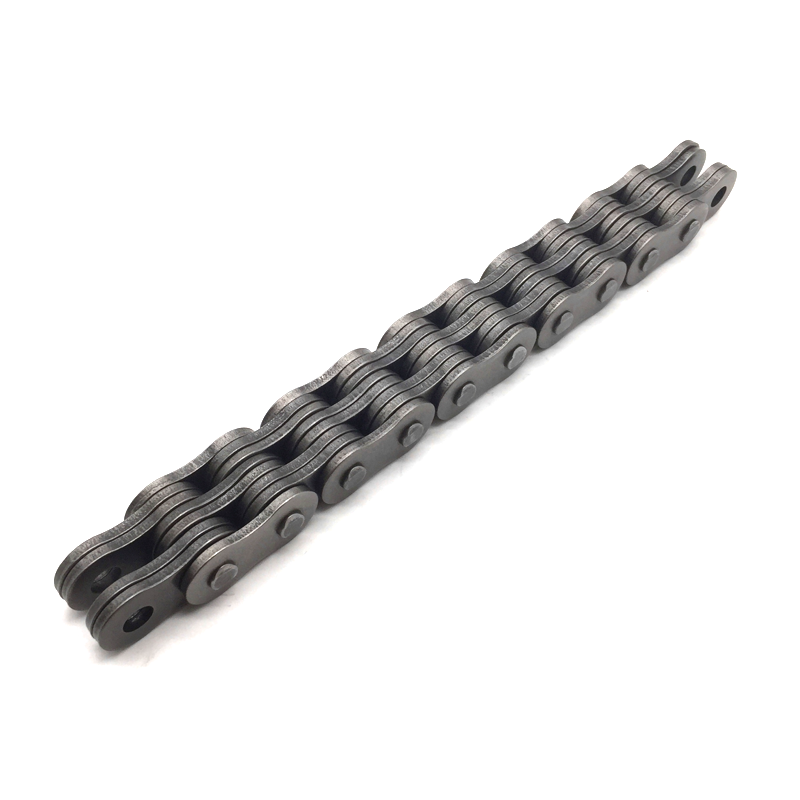

| Chain No. | pitch | Lacing | Plates depth |
Plate thickness |
Pin diameter |
Width over riveted pins | Hole diameter of inner plates | Ultimate tensile strength | Mass per meter |
| ANSI | P | h2 max | T max | d2 max | L max | d1 min | Fu min | q≈ | |
| mm | mm | mm | mm | mm | mm | kN | kg/m | ||
| AL422 | 12.7 | 2X2 | 10.4 | 1.5 | 3.96 | 8.30 | 3.98 | 14.10 | 0.39 |
| AL444 | 4X4 | 14.40 | 28.20 | 0.74 | |||||
| AL466 | 6X6 | 20.50 | 42.30 | 1.13 | |||||
| AL522 | 15.875 | 2X2 | 12.8 | 2.06 | 5.08 | 11.05 | 5.1 | 22.00 | 0.64 |
| AL534 | 3X4 | 17.00 | 33.00 | 1.10 | |||||
| AL544 | 4X4 | 19.40 | 44.00 | 1.25 | |||||
| AL566 | 6X6 | 27.50 | 66.00 | 1.79 | |||||
| AL622 | 19.05 | 2X2 | 15.6 | 2.44 | 5.94 | 13.00 | 5.96 | 37.00 | 0.86 |
| AL644 | 4X4 | 22.70 | 63.70 | 1.76 | |||||
| AL666 | 6X6 | 32.20 | 100.10 | 2.60 | |||||
| AL822 | 25.4 | 2X2 | 20.5 | 3.26 | 7.92 | 16.00 | 7.95 | 56.70 | 1.54 |
| AL844 | 4X4 | 29.40 | 113.40 | 3.00 | |||||
| AL866 | 6X6 | 44.20 | 170.00 | 4.46 | |||||
| AL1022 | 31.75 | 2X2 | 25.6 | 4 | 9.53 | 19.60 | 9.56 | 88.50 | 2.37 |
| AL1044 | 4X4 | 36.40 | 177.00 | 4.68 | |||||
| AL1066 | 6X6 | 52.30 | 265.00 | 7.20 | |||||
| AL1222 | 38.1 | 2X2 | 30.5 | 4.8 | 11.1 | 24.30 | 11.13 | 127.00 | 3.65 |
| AL1244 | 4X4 | 43.80 | 254.00 | 7.05 | |||||
| AL1266 | 6X6 | 63.20 | 381.00 | 10.50 | |||||
| AL1444 | 44.45 | 4X4 | 36.4 | 5.65 | 12.7 | 51.30 | 12.69 | 372.70 | 10.34 |
| AL1466 | 6X6 | 74.60 | 559.00 | 15.16 | |||||
| AL1644 | 50.8 | 4X4 | 41.6 | 6.45 | 14.27 | 58.10 | 14.24 | 471.00 | 12.98 |
| AL1666 | 6X6 | 83.80 | 706.00 | 19.76 |
