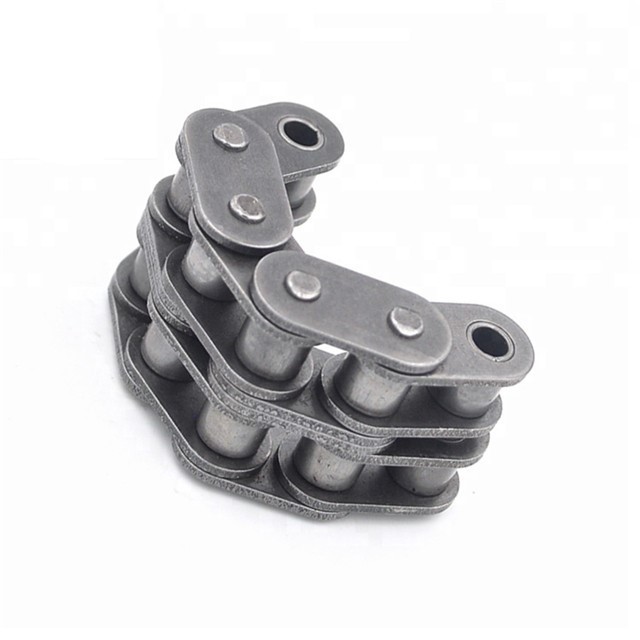

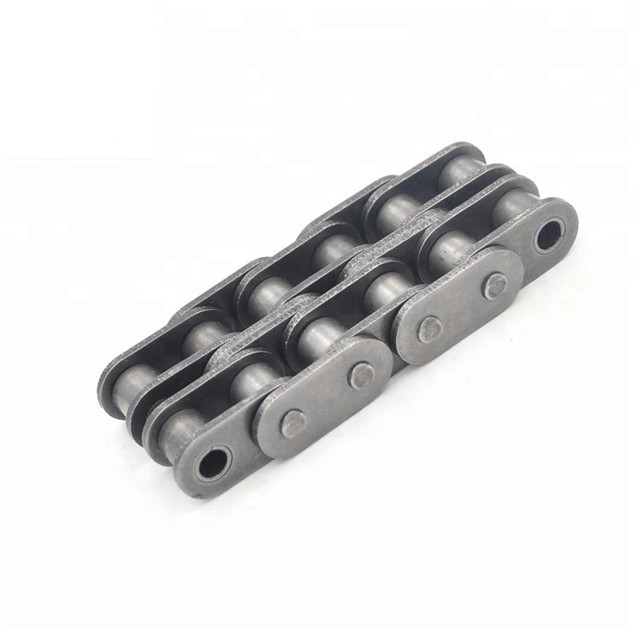

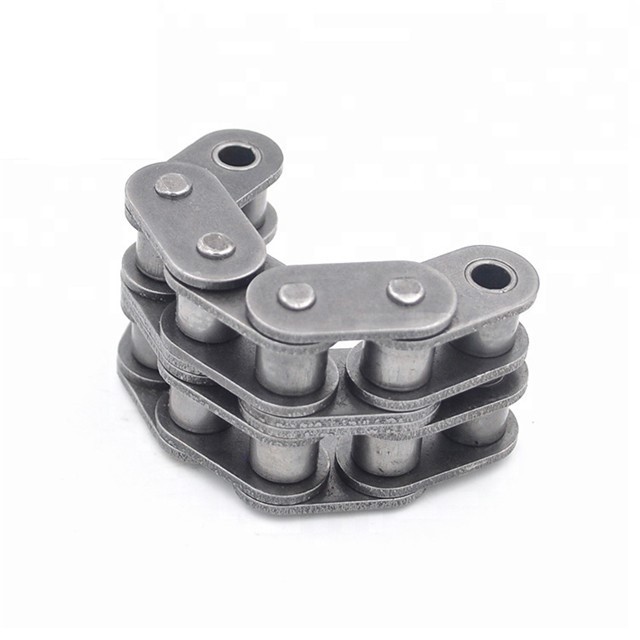

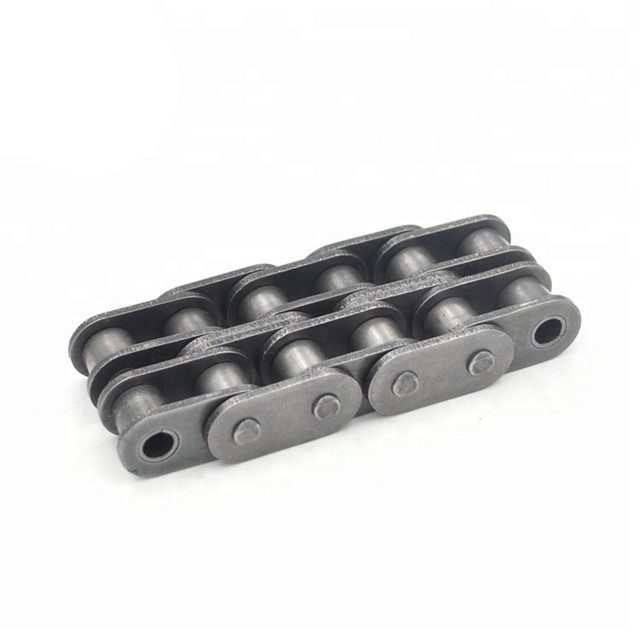

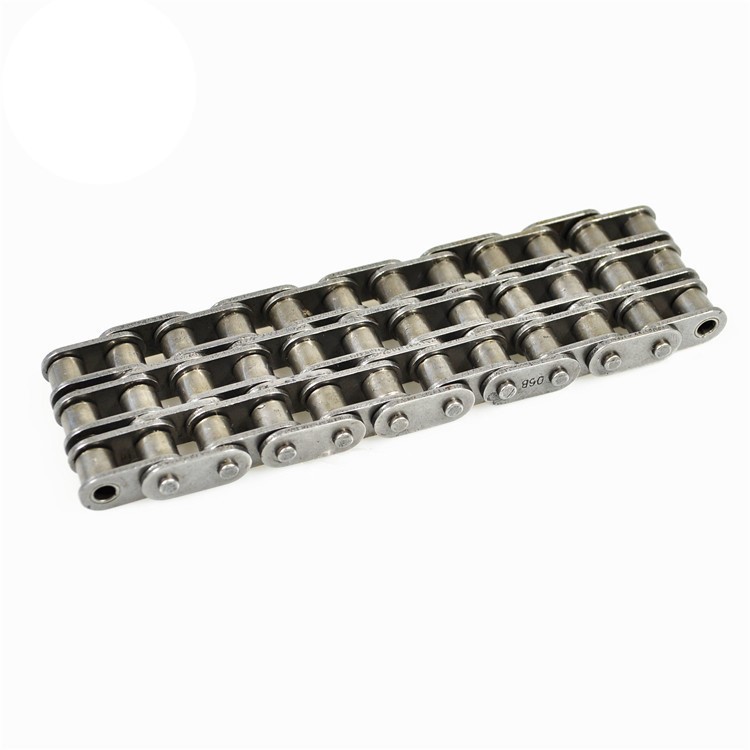

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter |
Width over bearing pins | Width over connecting pins |
plates depth | Transverse pitch | Plate thickness |
Ultimate tensile strength | Mass per meter | |
| GB ISO DIN | BS | p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | pt | t/T | Fu min | q ≈ |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kg/m | ||
| C08B-1 | C08B-1 | 12.70 | 8.51 | 7.75 | 4.45 | 17.0 | 20.9 | 11.80 | --- | 1.60 | 17.8 | 0.80 |
| C08B-2 | C08B-2 | 12.70 | 8.51 | 7.75 | 4.45 | 31.0 | 34.9 | 11.80 | 13.92 | 1.60 | 31.1 | 1.45 |
| C08B-3 | C08B-3 | 12.70 | 8.51 | 7.75 | 4.45 | 44.9 | 48.8 | 11.80 | 13.92 | 1.60 | 44.5 | 2.23 |
| C10B-1 | C10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.6 | 23.7 | 14.60 | --- | 1.70 | 22.2 | 1.06 |
| C10B-2 | C10B-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.2 | 40.3 | 14.60 | 16.59 | 1.70 | 44.5 | 2.00 |
| C10B-3 | C10B-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.8 | 56.9 | 14.60 | 16.59 | 1.70 | 66.7 | 2.87 |
| C12B-1 | C12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.7 | 27.3 | 16.10 | --- | 1.85 | 28.9 | 1.32 |
| C12B-2 | C12B-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42.2 | 46.8 | 16.10 | 19.46 | 1.85 | 57.8 | 2.62 |
| C12B-3 | C12B-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.7 | 66.3 | 16.10 | 19.46 | 1.85 | 86.7 | 3.89 |
| C16B-1 | C16B-1 | 25.40 | 15.88 | 17.02 | 8.28 | 36.1 | 41.5 | 21.00 | --- | 4.15/3.1 | 60.0 | 3.08 |
| C16B-2 | C16B-2 | 25.40 | 15.88 | 17.02 | 8.28 | 68.0 | 73.4 | 21.00 | 31.88 | 4.15/3.1 | 106.0 | 6.12 |
| C16B-3 | C16B-3 | 25.40 | 15.88 | 17.02 | 8.28 | 99.9 | 105.3 | 21.00 | 31.88 | 4.15/3.1 | 160.0 | 9.16 |
| C20B-1 | C20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 43.2 | 49.3 | 26.40 | --- | 4.5/3.5 | 95.0 | 4.16 |
| C20B-2 | C20B-2 | 31.75 | 19.05 | 19.56 | 10.19 | 79.7 | 85.8 | 26.40 | 36.45 | 4.5/3.5 | 170.0 | 8.23 |
| C20B-3 | C20B-3 | 31.75 | 19.05 | 19.56 | 10.19 | 116.1 | 122.2 | 26.40 | 36.45 | 4.5/3.5 | 250.0 | 11.34 |
| C24B-1 | C24B-1 | 38.10 | 25.40 | 25.40 | 14.63 | 53.4 | 60.0 | 33.40 | --- | 6.0/4.8 | 160.0 | 7.47 |
| C24B-2 | C24B-2 | 38.10 | 25.40 | 25.40 | 14.63 | 101.8 | 108.4 | 33.40 | 48.36 | 6.0/4.8 | 280.0 | 14.77 |
| C24B-3 | C24B-3 | 38.10 | 25.40 | 25.40 | 14.63 | 150.2 | 156.8 | 33.40 | 48.36 | 6.0/4.8 | 425.0 | 22.10 |
| C28B-1 | C28B-1 | 44.45 | 27.94 | 30.99 | 15.90 | 65.1 | 72.5 | 37.00 | --- | 7.5/6.0 | 200.0 | 9.90 |
| C28B-2 | C28B-2 | 44.45 | 27.94 | 30.99 | 15.90 | 124.7 | 132.1 | 37.00 | 59.56 | 7.5/6.0 | 360.0 | 19.82 |
| C28B-3 | C28B-3 | 44.45 | 27.94 | 30.99 | 15.90 | 184.3 | 191.7 | 37.00 | 59.56 | 7.5/6.0 | 530.0 | 29.56 |
| C32B-1 | C32B-1 | 50.80 | 29.21 | 30.99 | 17.81 | 67.4 | 75.3 | 42.20 | --- | 7.0/6.0 | 250.0 | 10.45 |
| C32B-2 | C32B-2 | 50.80 | 29.21 | 30.99 | 17.81 | 126.0 | 133.9 | 42.20 | 58.55 | 7.0/6.0 | 450.0 | 21.00 |
| C32B-3 | C32B-3 | 50.80 | 29.21 | 30.99 | 17.81 | 184.5 | 192.4 | 42.20 | 58.55 | 7.0/6.0 | 670.0 | 31.56 |
