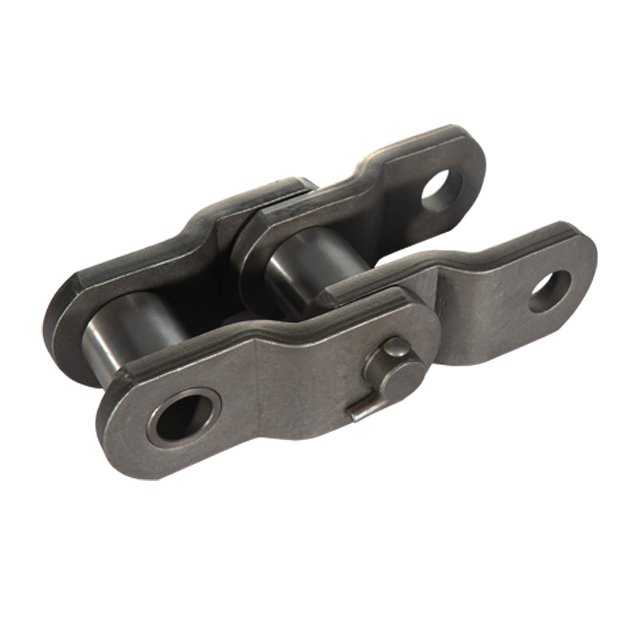

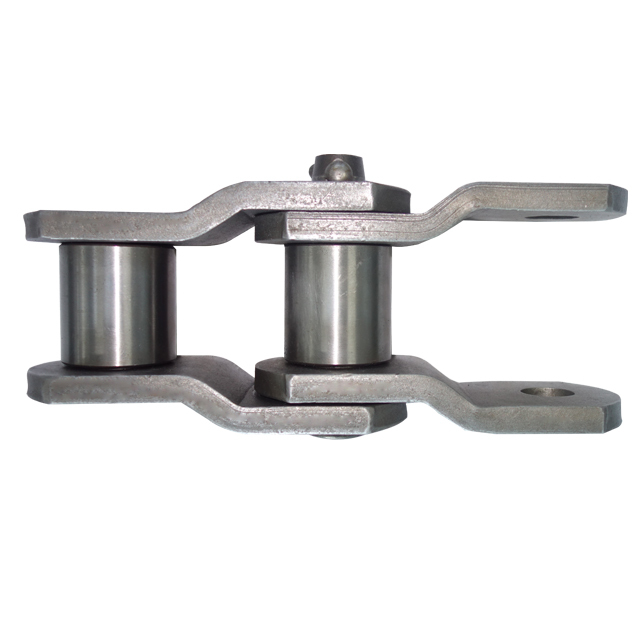

| Heavy duty cranked-link transmission chains | |||||||||
| Chain No. |
Pitch | Roller diameter |
Inner width on narrow end | Pin diameter |
Width over bearing pins |
Plates depth |
Plate thickness |
Ultimate tensile strength |
Mass per meter |
| GB ISO ANSI |
p | d1 max | b1 min | d2 max | L max | h2 max | T | Fu min | q≈ |
| mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
| 2010 | 63.50 | 31.75 | 38.10 | 15.90 | 90.7 | 47.8 | 7.9 | 250.0 | 14.00 |
| 2512 | 77.90 | 41.28 | 39.60 | 19.08 | 103.4 | 60.5 | 9.7 | 340.0 | 18.40 |
| 2814 | 88.90 | 44.45 | 38.10 | 22.25 | 117.6 | 60.5 | 12.7 | 470.0 | 25.70 |
| 3315 | 103.45 | 45.24 | 49.30 | 23.85 | 134.9 | 63.5 | 14.2 | 550.0 | 27.71 |
| 3618 | 114.30 | 57.15 | 52.30 | 27.97 | 141.2 | 79.2 | 14.2 | 760.0 | 41.20 |
| 4020 | 127.00 | 63.50 | 69.90 | 31.78 | 168.1 | 91.9 | 15.7 | 990.0 | 48.60 |
