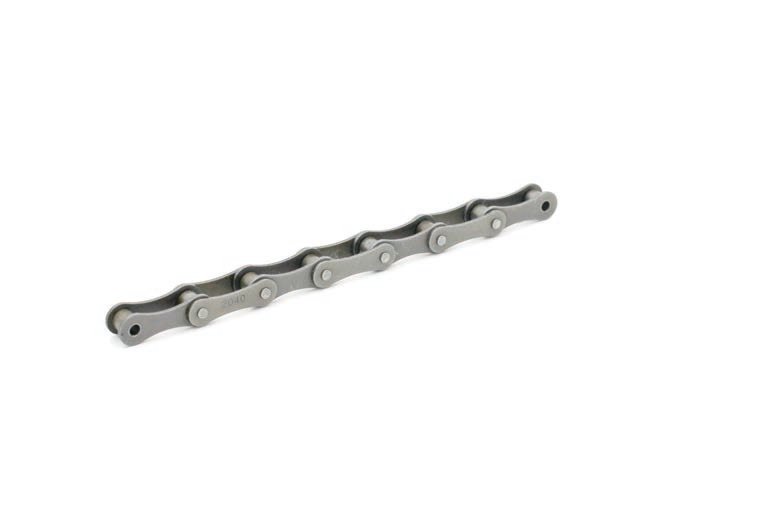

| Chain No. |
Pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Width over bearing pins |
Width over connecting pins |
Inner plates depth |
Plate thickness |
Ultimate tensile strength |
Average tensile strength |
Mass per meter |
|
| GB ISO DIN |
ANSI | p | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T | Fu min | Fua | q≈ |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | kg/m | ||
| 208A | 2040 | 25.40 | 7.92 | 7.85 | 3.98 | 17.8 | 21.7 | 12.07 | 1.52 | 13.9 | 17.0 | 0.42 |
| 208B | 25.40 | 8.51 | 7.75 | 4.45 | 17.0 | 20.9 | 11.80 | 1.60 | 17.8 | 18.4 | 0.45 | |
| 210A | 2050 | 31.75 | 10.16 | 9.40 | 5.09 | 21.8 | 25.9 | 15.09 | 2.03 | 21.8 | 28.0 | 0.73 |
| 210B | 31.75 | 10.16 | 9.65 | 5.08 | 19.6 | 23.7 | 14.60 | 1.70 | 22.2 | 26.1 | 0.65 | |
| 212A | 2060 | 38.10 | 11.91 | 12.57 | 5.96 | 26.9 | 31.5 | 18.10 | 2.39 | 31.3 | 40.0 | 1.02 |
| 212AH | 2060H | 38.10 | 11.91 | 12.57 | 5.96 | 30.2 | 34.8 | 18.10 | 3.18 | 31.3 | 40.6 | 1.24 |
| 212B | 38.10 | 12.07 | 11.68 | 5.72 | 22.7 | 27.3 | 16.10 | 1.85 | 28.9 | 30.6 | 0.76 | |
| 216A | 2080 | 50.80 | 15.88 | 15.75 | 7.94 | 33.5 | 38.9 | 24.13 | 3.18 | 55.6 | 66.0 | 1.70 |
| 216AH | 2080H | 50.80 | 15.88 | 15.75 | 7.94 | 37.4 | 42.8 | 24.13 | 3.96 | 55.6 | 67.8 | 2.17 |
| 216B | 50.80 | 15.88 | 17.02 | 8.28 | 36.1 | 41.5 | 21.00 | 4.15/3.1 | 60.0 | 69.2 | 1.75 | |
| 220A | 2100 | 63.50 | 19.05 | 18.90 | 9.54 | 41.1 | 47.2 | 30.17 | 3.96 | 87.0 | 104.0 | 2.55 |
| 220B | 63.50 | 19.05 | 19.56 | 10.19 | 43.2 | 49.3 | 26.40 | 4.5/3.5 | 95.0 | 101.0 | 2.62 | |
| 224A | 2120 | 76.20 | 22.23 | 25.22 | 11.11 | 50.8 | 57.4 | 36.20 | 4.75 | 125.0 | 148.0 | 4.06 |
| 224B | 76.20 | 25.40 | 25.40 | 14.63 | 53.4 | 60.0 | 33.40 | 6.0/4.8 | 160.0 | 169.0 | 4.70 | |
| 228B | 88.90 | 27.94 | 30.99 | 15.90 | 65.1 | 72.5 | 37.00 | 7.5/6.0 | 200.0 | 211.0 | 6.23 | |
| 232B | 101.60 | 29.21 | 30.99 | 17.81 | 67.4 | 75.3 | 42.20 | 7.0/6.0 | 250.0 | 263.0 | 6.72 | |
